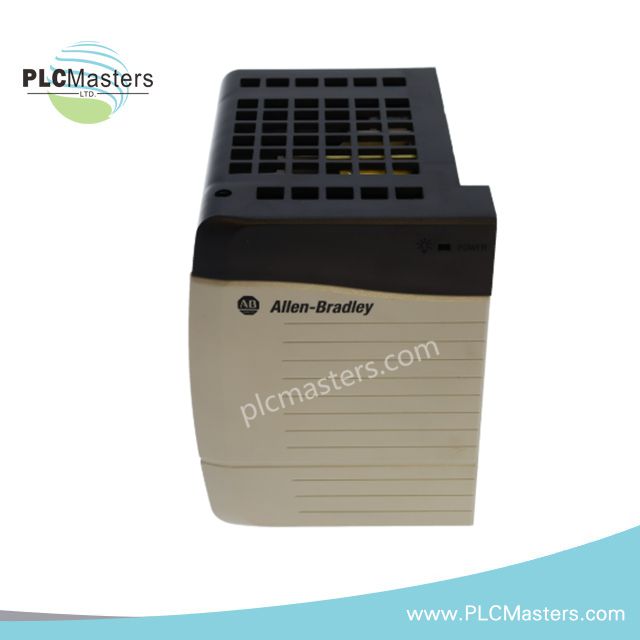

Allen-Bradley 1756-PA75-B - ControlLogix AC Power Supply, 85-265V AC input, 75W output

Name: Allen-Bradley 1756-PA75-B - ControlLogix AC Power Supply, 85-265V AC input, 75W output
Brand: Allen-Bradley
SKU: 1756-PA75-B
Price: 451.72 AED
Availability: InStock

SKU1756-PA75-BBrandAllen-Bradley

AED 451.72

~~AED 501.91~~ AED 451.72

Sale Sold out

Shipping calculated at checkout.

Only 10 left

Quantity

Allen-Bradley 1756-PA75-B ControlLogix AC Power Supply — AC input, Series B. Standard ControlLogix AC power supply. Input 85-265V AC, 47-63 Hz. Output 5.1V DC at 13 A, 3.3V DC at 4 A, 24V DC at 2.8 A. Maximum output 75 W at 0-60 C. Dimensions 14.0 x 11.2 x 14.5 cm. Weight 0.95 kg..

MPN / SKU: 1756-PA75-B

1756-PA75-B Applications

This AC power supply mounts on a ControlLogix chassis and converts wide-range line voltage into the regulated backplane power that controllers, communication and I/O modules require. It accepts 85 to 265V AC across 47 to 63 Hz, delivering up to 75 watts to the backplane at temperatures from 0 to 60 C. The Series B variant suits standard chassis installations where a single non-redundant supply feeds one chassis in industrial control and process applications.

1756-PA75-B Specifications

Brand	Allen-Bradley	Series	1756 ControlLogix
Type	AC Power Supply	Input Voltage	85-265V AC
Frequency	47-63 Hz	Output	5.1V DC @ 13 A; 3.3V DC @ 4 A; 24V DC @ 2.8 A
Max Output Power	75 W @ 0-60 C	Operating Temperature	0-60 C (32-140 F)
Dimensions (HxWxD)	14.0 x 11.2 x 14.5 cm	Weight	0.95 kg (2.10 lb)
