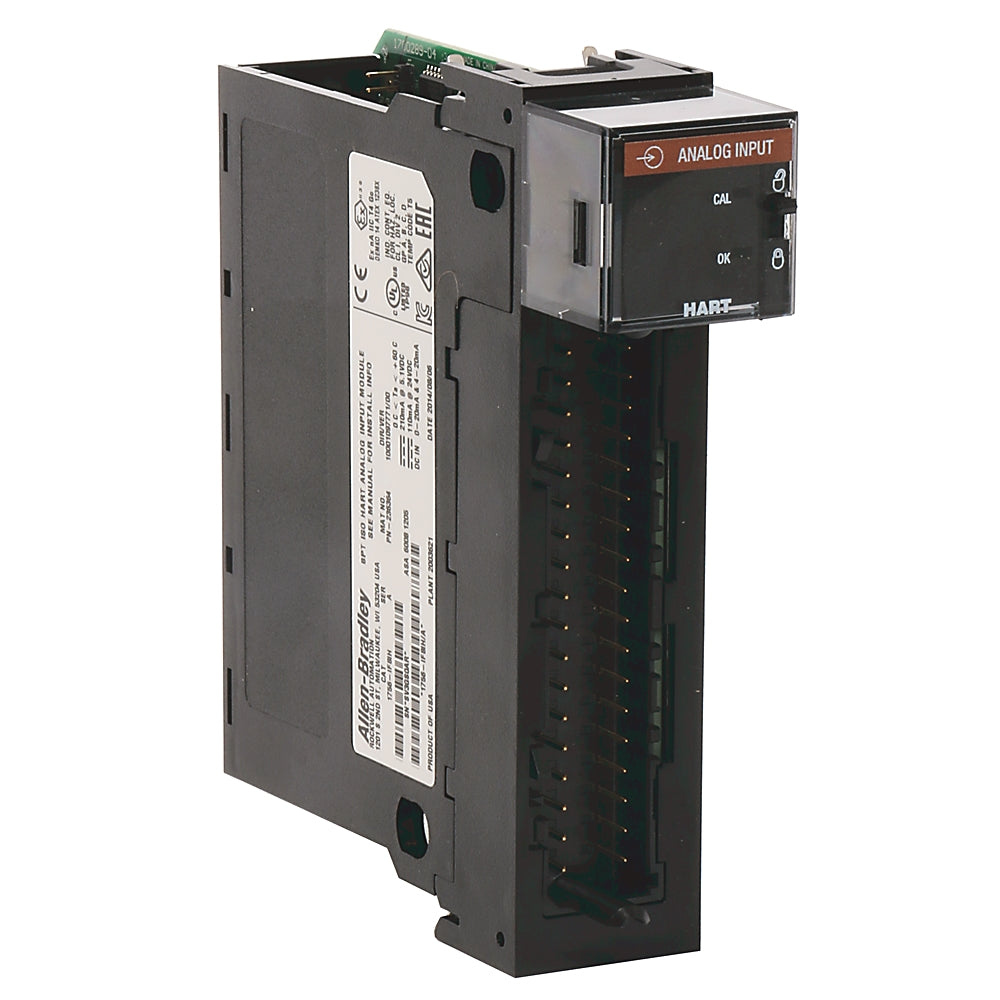

Allen-Bradley 1756-IF8IH - Analog Input Module, 8 isolated analog input channels, HART protocol support

Allen-Bradley 1756-IF8IH - Analog Input Module, 8 isolated analog input channels, HART protocol support

SKU1756-IF8IHBrandAllen-Bradley
AED 12,086.20
AED 13,429.11 AED 12,086.20
Sale Sold out
Shipping calculated at checkout.

Only 1 left

Allen-Bradley 1756-IF8IH Analog Input Module — 8-channel isolated HART analog input. The Allen-Bradley 1756-IF8IH is an 8-channel isolated analog input module for ControlLogix systems with HART protocol support. It accepts current inputs (0-20mA, 4-20mA) with 250V continuous reinforced isolation between inputs and the backplane, and delivers data as 32-bit floating point using a 24-bit sigma-delta converter. Effective resolution is 16 to 21 bit with a 250 ohm input impedance. It provides open-circuit detection and high noise rejection for demanding process measurement..

MPN / SKU: 1756-IF8IH

1756-IF8IH Applications

The 1756-IF8IH is used in process control applications where HART-enabled field instruments must be read and monitored through a ControlLogix system. Isolation on every channel protects against ground loops and allows connection of instruments referenced to different potentials. HART support enables access to secondary process variables and instrument diagnostics alongside the primary 4-20mA signal. It suits oil and gas, chemical, water/wastewater and other continuous process industries. Configuration is done in Studio 5000 Logix Designer.

1756-IF8IH Specifications

Brand Allen-Bradley Part Number 1756-IF8IH
Product Type Analog Input Module Series 1756 ControlLogix
Channels 8 (isolated) Input Type Current (0-20mA, 4-20mA)
HART Support Yes Isolation 250V continuous, reinforced, inputs-to-backplane
Resolution 16 to 21 bit Data Format 32-bit floating point
Conversion Method 24-bit sigma-delta ADC Input Impedance 250 ohm +/-5 ohm
Operating Temperature 0 to 60 degrees C Power Dissipation 4 W
Lifecycle Status Active

1756-IF8IH Datasheet & Manual

Download Datasheet & ManualAllen-Bradley 1756-IF8IH · PDF · Official Allen-Bradley document
