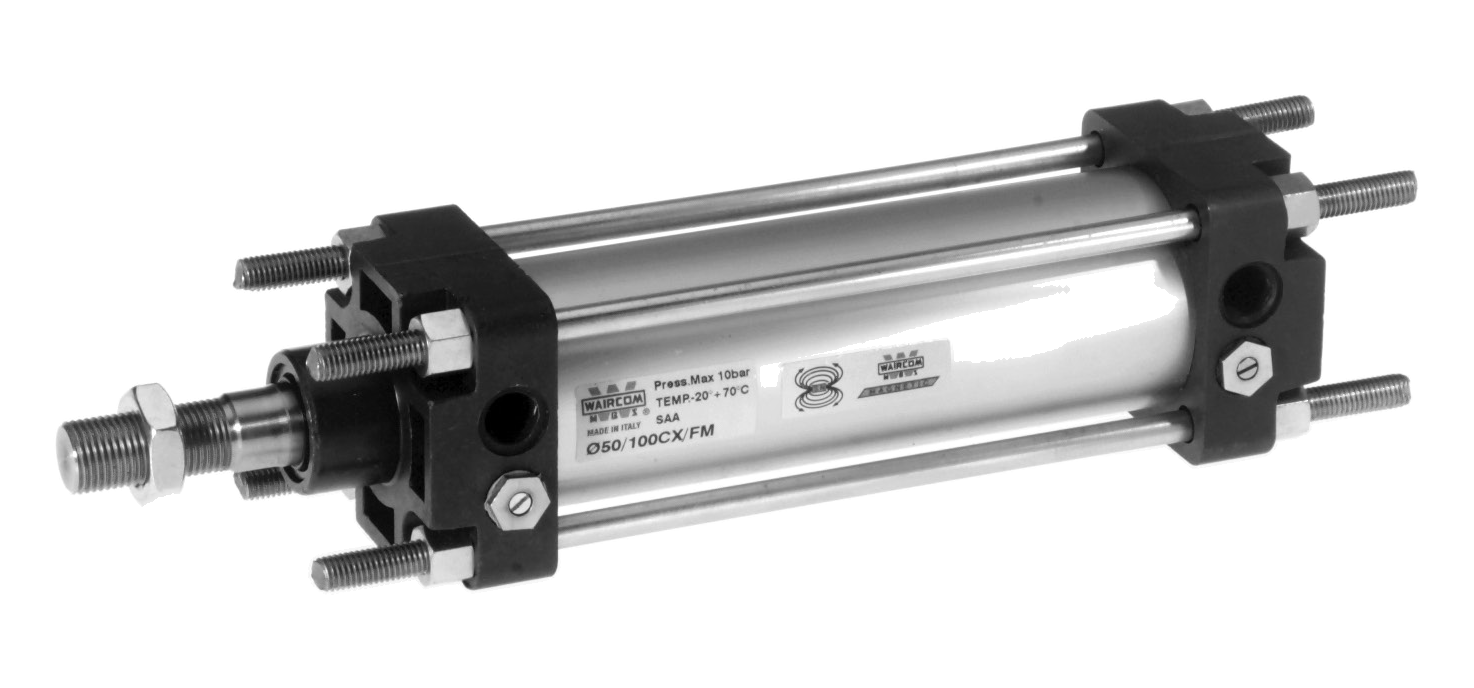

Waircom 160/75 CXL/FM - Series CXL Double Acting, Cushioned Cylinder (160mm Bore x 75mm Stroke)

Waircom 160/75 CXL/FM - Series CXL Double Acting, Cushioned Cylinder (160mm Bore x 75mm Stroke)

SKU160/75 CXL/FMBrandWaircom
AED 2,122.00
AED 2,122.00
Sale Sold out
Shipping calculated at checkout.

The Waircom 160/75 CXL/FM is an industrial double acting, cushioned cylinder belonging to the Series CXL line. Built for demanding automation environments, this pneumatic actuator relies on a 160mm bore and a compact 75mm stroke to deliver reliable linear motion. It features built-in adjustable front + rear decelerators to manage end-of-stroke impact smoothly. Structural construction consists of an anodized aluminium alloy (extruded tube) barrel paired with a c45 chromium-plated steel piston rod. Standard mechanical connections include a G 3/4 port configuration and an M36x2 piston rod thread, fully meeting AFNOR NF E49-001 (ex CNOMO) standard specifications.

View full details
  • Brand: Waircom
  • Series: Series CXL
  • Cylinder Type: Double Acting, Cushioned
  • Bore Size: 160 mm
  • Stroke: 75 mm
  • Piston Type: Magnetic
  • Cushioning: Adjustable front + rear decelerators
  • Barrel Material: Anodized aluminium alloy (extruded tube)
  • Piston Rod Material: C45 chromium-plated steel
  • Piston Rod Thread: M36x2
  • Port Size: G 3/4
  • Standards Met: AFNOR NF E49-001 (ex CNOMO)
