Allen-Bradley 1420-V2-ENT - Power Monitor, EtherNet/IP & Modbus TCP, 600V AC, Class 1

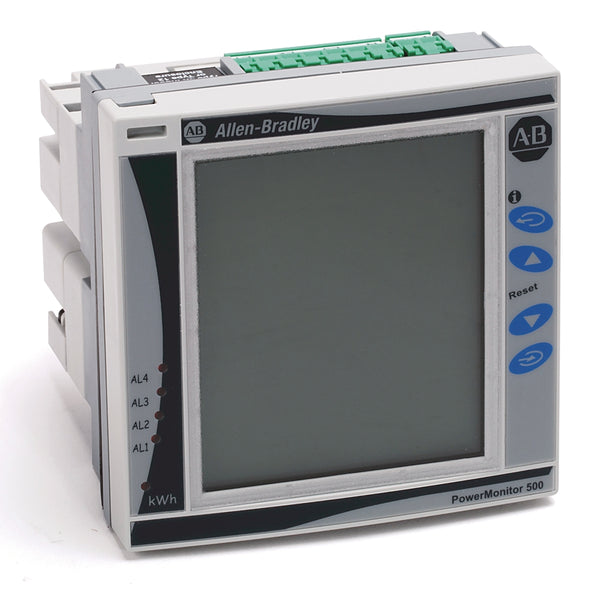

Allen-Bradley 1420-V2-ENT Power Monitor — EtherNet/IP, 600V AC. The 1420-V2-ENT is a PowerMonitor 500 EtherNet/IP power meter. It measures real, reactive and apparent power (kW, kVAR, kVA) plus energy (kWh, kVARh) with 1.00% accuracy on systems up to 600V AC line-to-line and 5 A nominal current inputs. It communicates over EtherNet/IP and Modbus TCP/IP, features a built-in LCD display, and mounts on DIN rail in a 96x96 mm IP65/NEMA 4X front housing. It carries Class 1 (kWh) accuracy per EN62053-21..

MPN / SKU: 1420-V2-ENT

1420-V2-ENT Applications

This compact power meter provides electrical energy and power measurement for machines, panels and sub-metering points across an industrial facility. It captures active, reactive and apparent power along with cumulative energy, then reports the data to control and information systems over EtherNet/IP or Modbus TCP/IP. The front-panel LCD gives local readings, while network connectivity supports energy management, demand monitoring and cost allocation. Its 96 mm square DIN-rail form factor with an IP65 front fits standard panel cutouts, making it well suited for retrofits and new installations where visibility into power consumption is required.

1420-V2-ENT Specifications
