Waircom 125/75 CXL - Series CXL Double Acting, Cushioned Cylinder (125mm Bore x 75mm Stroke)

Waircom 125/75 CXL - Series CXL Double Acting, Cushioned Cylinder (125mm Bore x 75mm Stroke)

SKU125/75 CXLBrandWaircom
AED 1,422.00
AED 1,422.00
Sale Sold out
Shipping calculated at checkout.

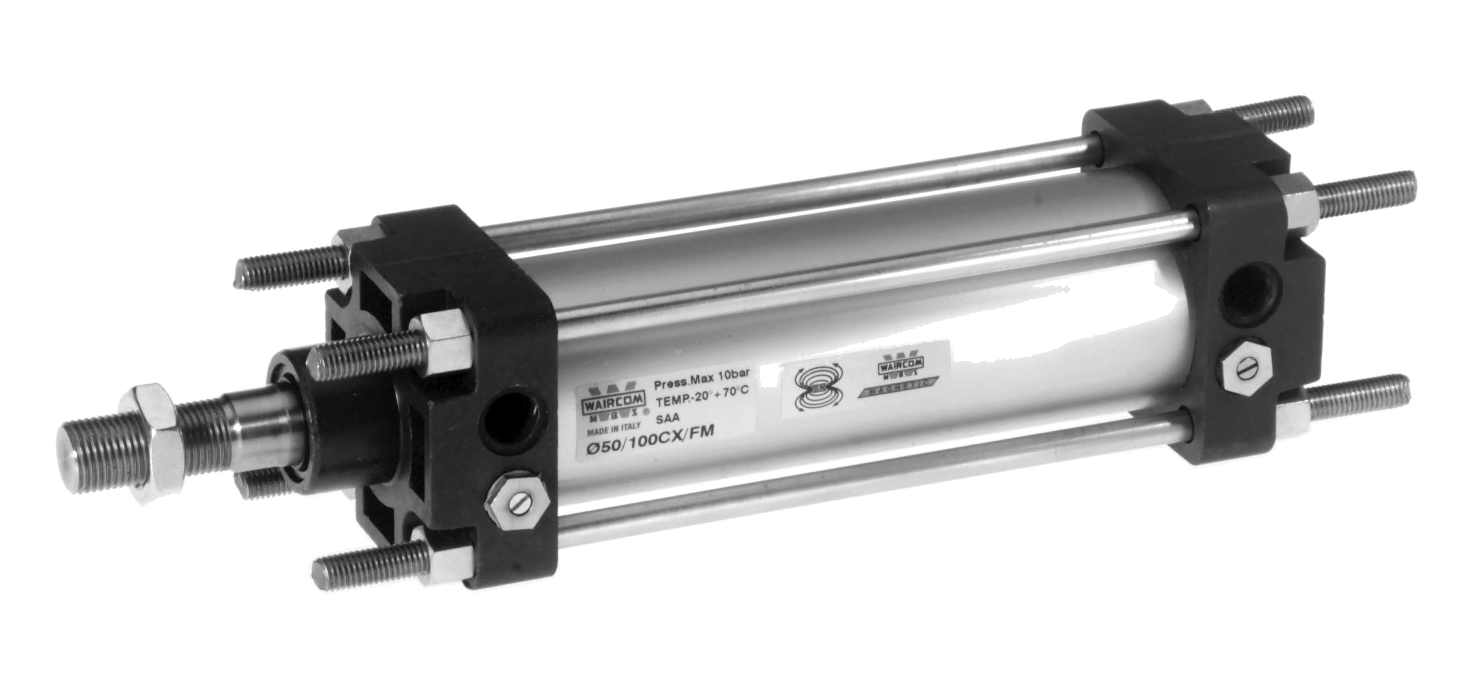

The Waircom 125/75 CXL is an industrial double acting, cushioned cylinder belonging to the Series CXL line. Built for demanding automation environments, this pneumatic actuator relies on a 125mm bore and a compact 75mm stroke to deliver reliable linear motion. It features built-in adjustable front + rear decelerators to manage end-of-stroke impact smoothly. Structural construction consists of an anodized aluminium alloy (extruded tube) barrel paired with a c45 chromium-plated steel piston rod. Standard mechanical connections include a G 1/2 port configuration and an M27x2 piston rod thread, fully meeting AFNOR NF E49-001 (ex CNOMO) standard specifications.

View full details
ParameterValue
Brand
Waircom
Series
Series CXL
Cylinder Type
Double Acting, Cushioned
Bore Size
125 mm
Stroke
75 mm
Piston Type
Non-Magnetic
ParameterValue
Cushioning
Adjustable front + rear decelerators
Barrel Material
Anodized aluminium alloy (extruded tube)
Piston Rod Material
C45 chromium-plated steel
Piston Rod Thread
M27x2
Port Size
G 1/2
Standards Met
AFNOR NF E49-001 (ex CNOMO)
