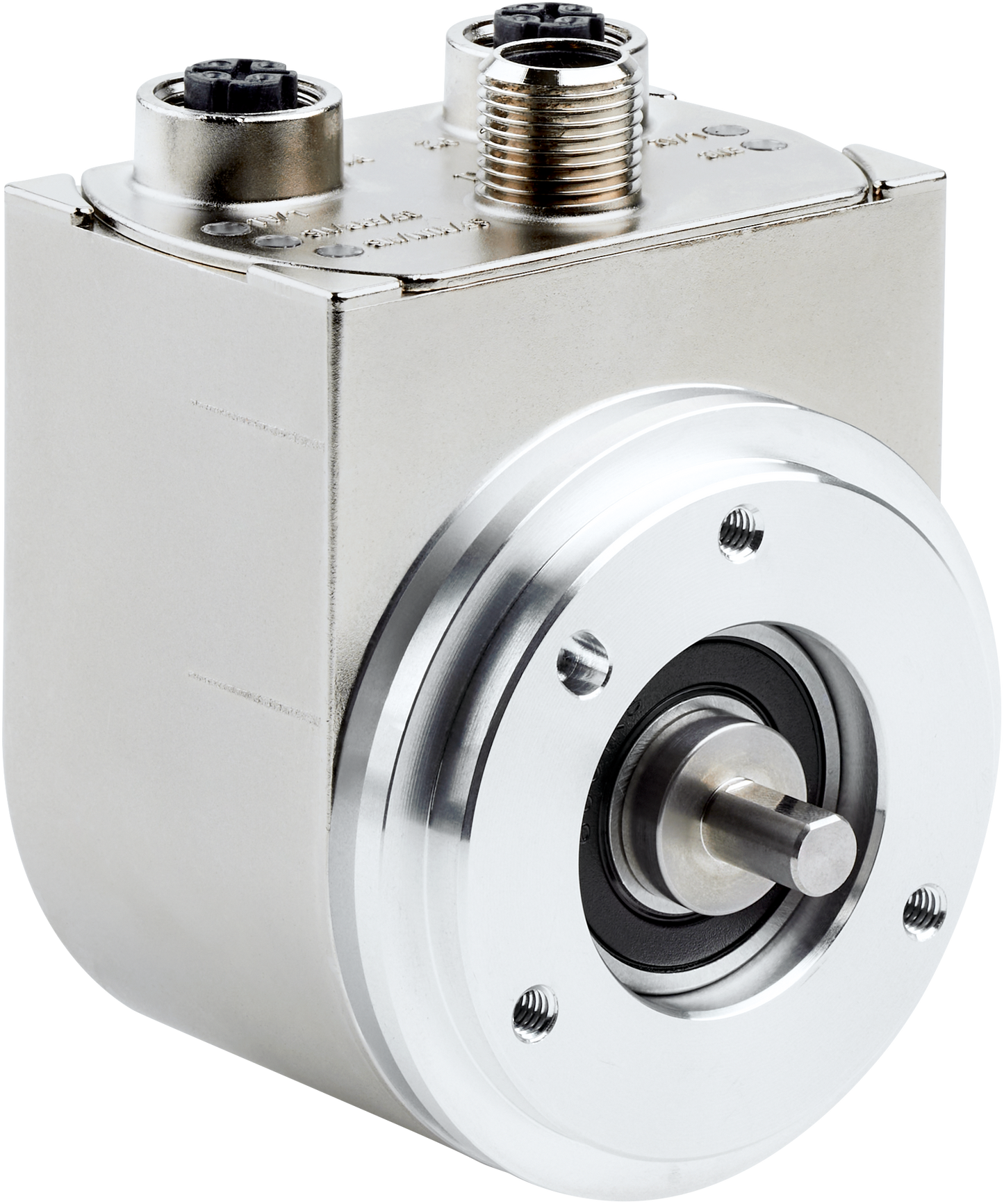

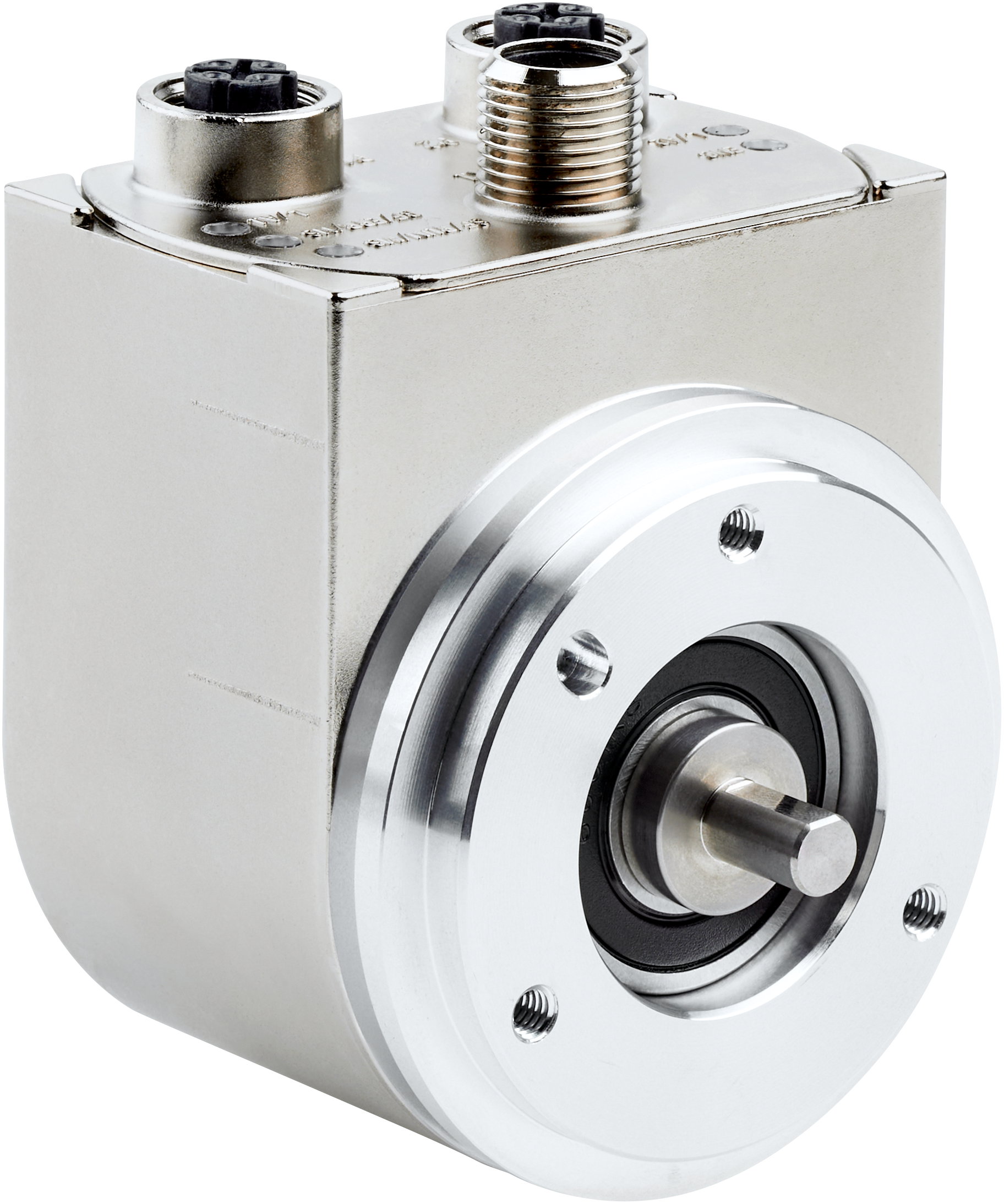

1148712 ANS58 - IP65 Motion Control Sensor, Solid shaft, Servo flange (262,144 (18 bit))

Name: 1148712 ANS58 - IP65 Motion Control Sensor, Solid shaft, Servo flange (262,144 (18 bit))
Brand: SICK
SKU: 1148712
Price: 3025.00 AED
Availability: InStock

SKU1148712BrandSICK

AED 3,025.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The 1148712 ANS58 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Rated to ip65 protection, this sensor delivers an exact 262,144 (18 bit) resolution and supports ≤ 9,000 min⁻¹ maximum revolutions. Designed for secure and straightforward installation via a solid shaft, servo flange and operating on a standard 10 ... 32 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Sick
Series: ANS58
Maximum Revolutions: ≤ 9,000 min⁻¹
Shaft Diameter: 6 mm
Supply Voltage: 10 ... 32 V
Resolution: 262,144 (18 bit)

Steps Per Revolution: 262,144 (18 bit)
IP Rating: IP65
Minimum Operating Temperature: -40 °C
Maximum Operating Temperature: +85 °C
Mounting Type: Solid Shaft, Servo Flange
Connection Type: Male connector, 1x, M12, 4-pin, radial 1)Female connector, 2x, M12, 4-pin, radial 2)
