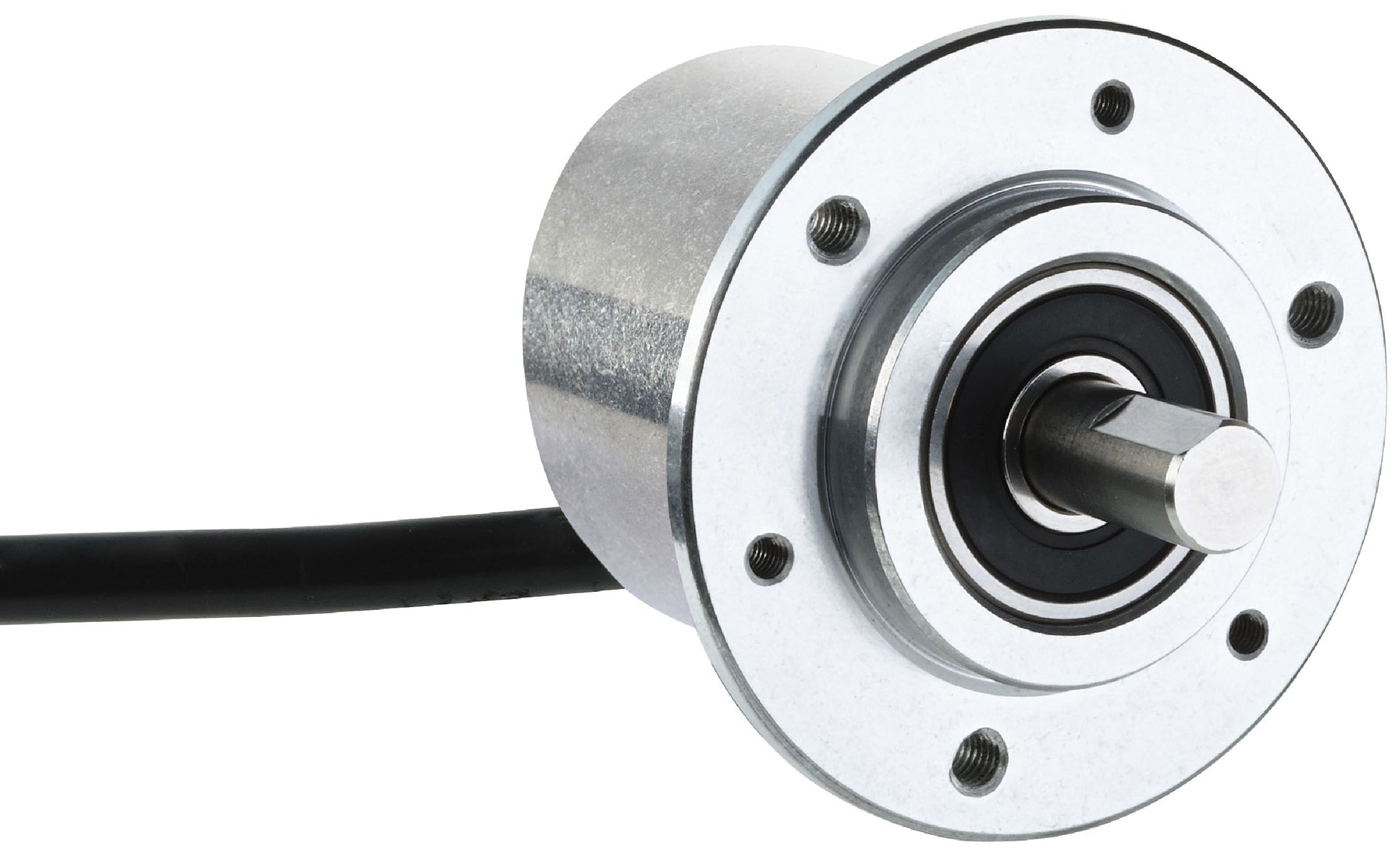

1133066 DBS36/50 - Incremental Motion Control Sensor, Solid shaft, face mount flange (300)

Name: 1133066 DBS36/50 - Incremental Motion Control Sensor, Solid shaft, face mount flange (300)
Brand: SICK
SKU: 1133066
Price: 507.00 AED
Availability: InStock

SKU1133066BrandSICK

AED 507.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The 1133066 DBS36/50 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Utilizing advanced incremental encoder technology, this sensor delivers an exact 300 resolution and provides a reliable ttl / rs-422 output signal type. Designed for secure and straightforward installation via a solid shaft, face mount flange and operating on a standard 4.5 ... 5.5 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Sick
Encoder Technology: Incremental
Cable Length: 0.5 m
Series: DBS36/50
Pulses Per Revolution: 300
Maximum Revolutions: 6,000 min⁻¹
Output Signal Type: TTL / RS-422
Shaft Type: Solid shaft, face mount flange
Shaft Diameter: 8 mmWith flat
Supply Voltage: 4.5 ... 5.5 V
Resolution: 90°, electric/pulses per revolution

Steps Per Revolution: 90°, electric/pulses per revolution
IP Rating: IP65
Interface: Incremental
Overall Depth: 15.5 mm
Minimum Operating Temperature: -20 °C
Maximum Operating Temperature: +95 °C
Mounting Type: Solid Shaft, Face Mount Flange
Connection Type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m
Current Rating: 30 mA
Switching Frequency: ≤ 300 kHz
