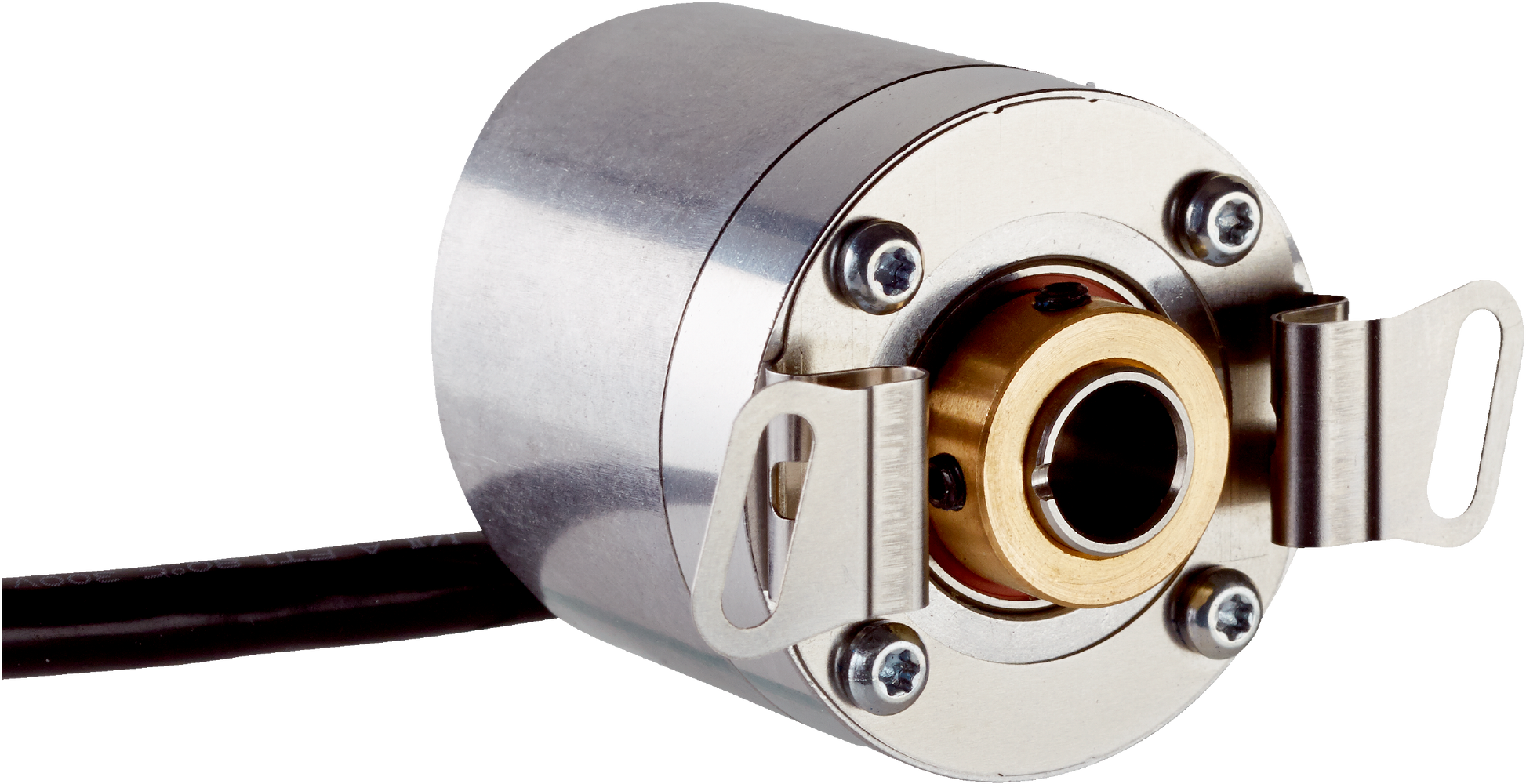

1127601 DBS36 - IP65 Motion Control Sensor, Blind hollow shaft (2,048)

Name: 1127601 DBS36 - IP65 Motion Control Sensor, Blind hollow shaft (2,048)
Brand: SICK
SKU: 1127601
Price: 843.00 AED
Availability: InStock

SKU1127601BrandSICK

AED 843.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The 1127601 DBS36 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Rated to ip65 protection, this sensor delivers an exact 2,048 resolution and provides a reliable ttl / rs-422 output signal type. Designed for secure and straightforward installation via a blind hollow shaft and operating on a standard 4.5 ... 5.5 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Sick
Cable Length: 0.5 m
Series: DBS36
Pulses Per Revolution: 2,048
Maximum Revolutions: 6,000 min⁻¹
Output Signal Type: TTL / RS-422
Shaft Diameter: 8 mmFront clamp
Supply Voltage: 4.5 ... 5.5 V

Resolution: 90°, electric/pulses per revolution
IP Rating: IP65
Minimum Operating Temperature: -20 °C
Maximum Operating Temperature: +95 °C
Mounting Type: Blind Hollow Shaft
Connection Type: Cable, 8-wire, with male connector, M23, 12-pin, universal, 0.5 m 1)
Current Rating: ≤ 30 mA
Switching Frequency: ≤ 300 kHz
