1122843 MWS120 - EtherCAT® Motion Control Sensor, Measuring wheel mounted at the rear (262,144 (18 bit))

Name: 1122843 MWS120 - EtherCAT® Motion Control Sensor, Measuring wheel mounted at the rear (262,144 (18 bit))
Brand: SICK
SKU: 1122843
Price: 4205.00 AED
Availability: InStock

SKU1122843BrandSICK

AED 4,205.00

Sale Sold out

Shipping calculated at checkout.

Quantity

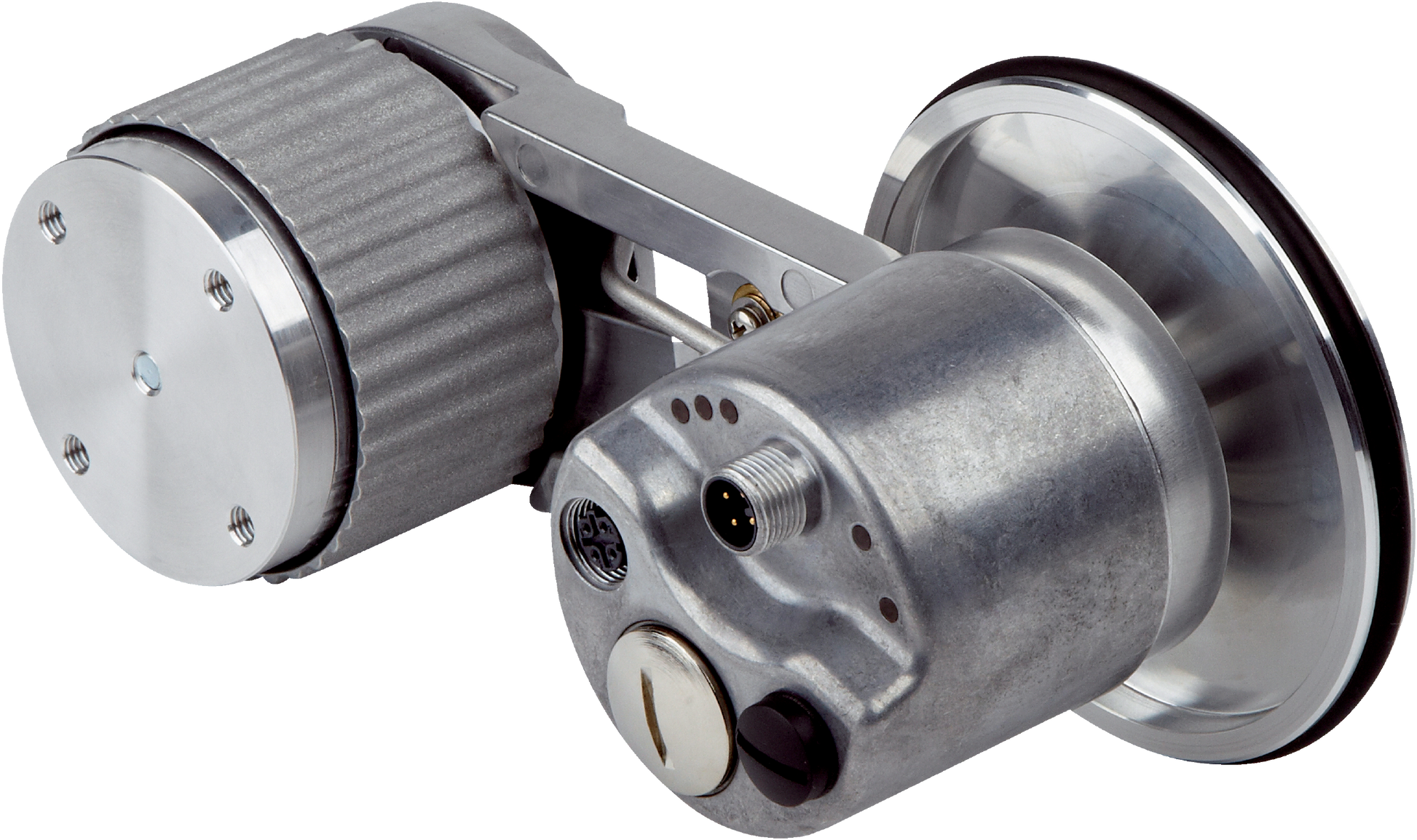

The 1122843 MWS120 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Featuring an ethercat® interface, this sensor delivers an exact 262,144 (18 bit) resolution and is equipped with a male connector, female connector, 1x, 2x, m12, m12, 4-pin, 4-pin, axial, axial connection. Designed for secure and straightforward installation via a measuring wheel mounted at the rear and operating on a standard 10 v dc ... 30 v dc supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Sick
Series: MWS120
Pulses Per Revolution: 262,144 (18 bit)
Supply Voltage: 10 ... 30 V DC
Resolution: 262,144 (18 bit)
Steps Per Revolution: 262,144 (18 bit)

Interface: EtherCAT®
Minimum Operating Temperature: -30 °C
Maximum Operating Temperature: +80 °C
Mounting Type: Measuring Wheel Mounted At The Rear
Connection Type: Male connector, Female connector, 1x, 2x, M12, M12, 4-pin, 4-pin, axial, axial
