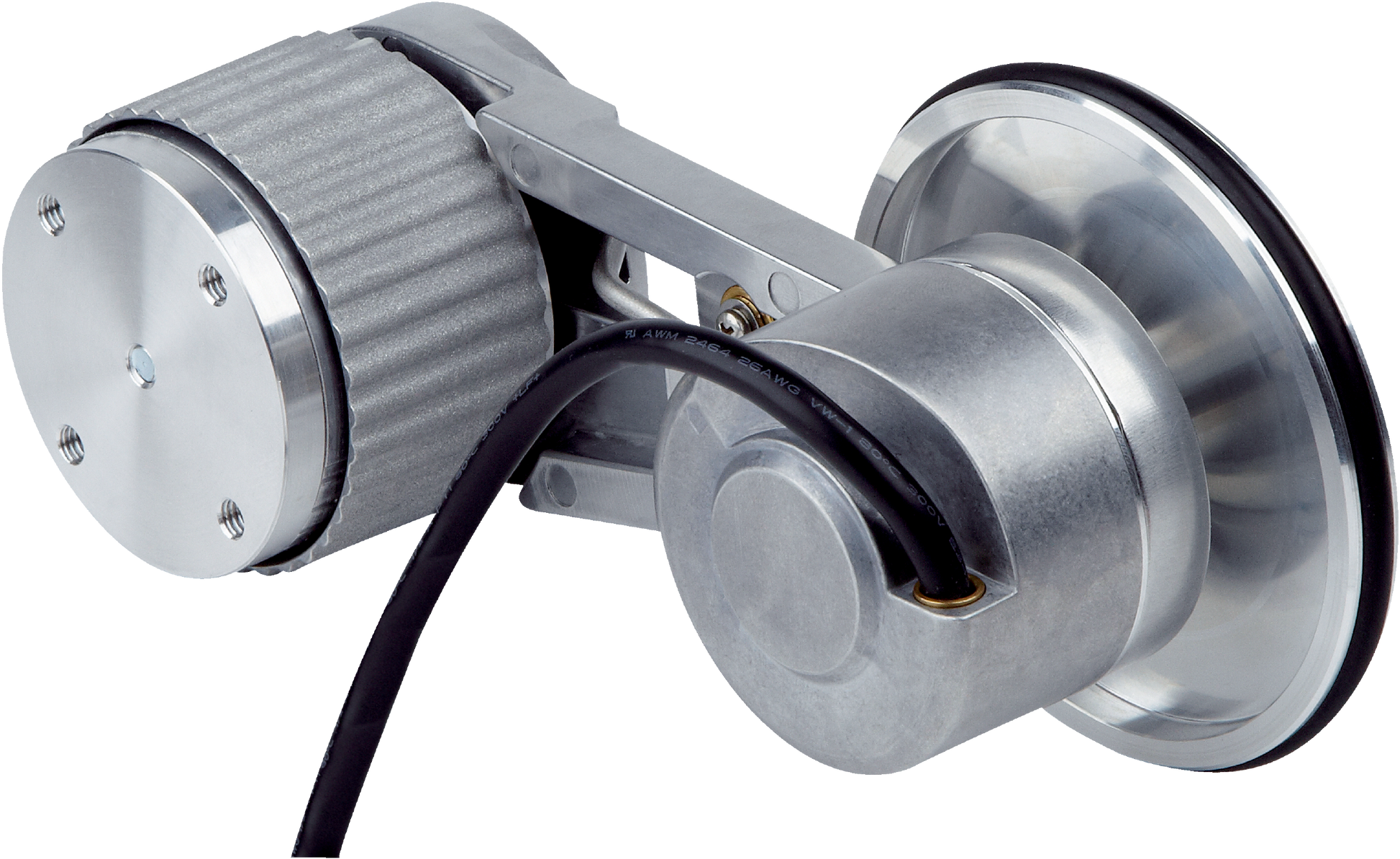

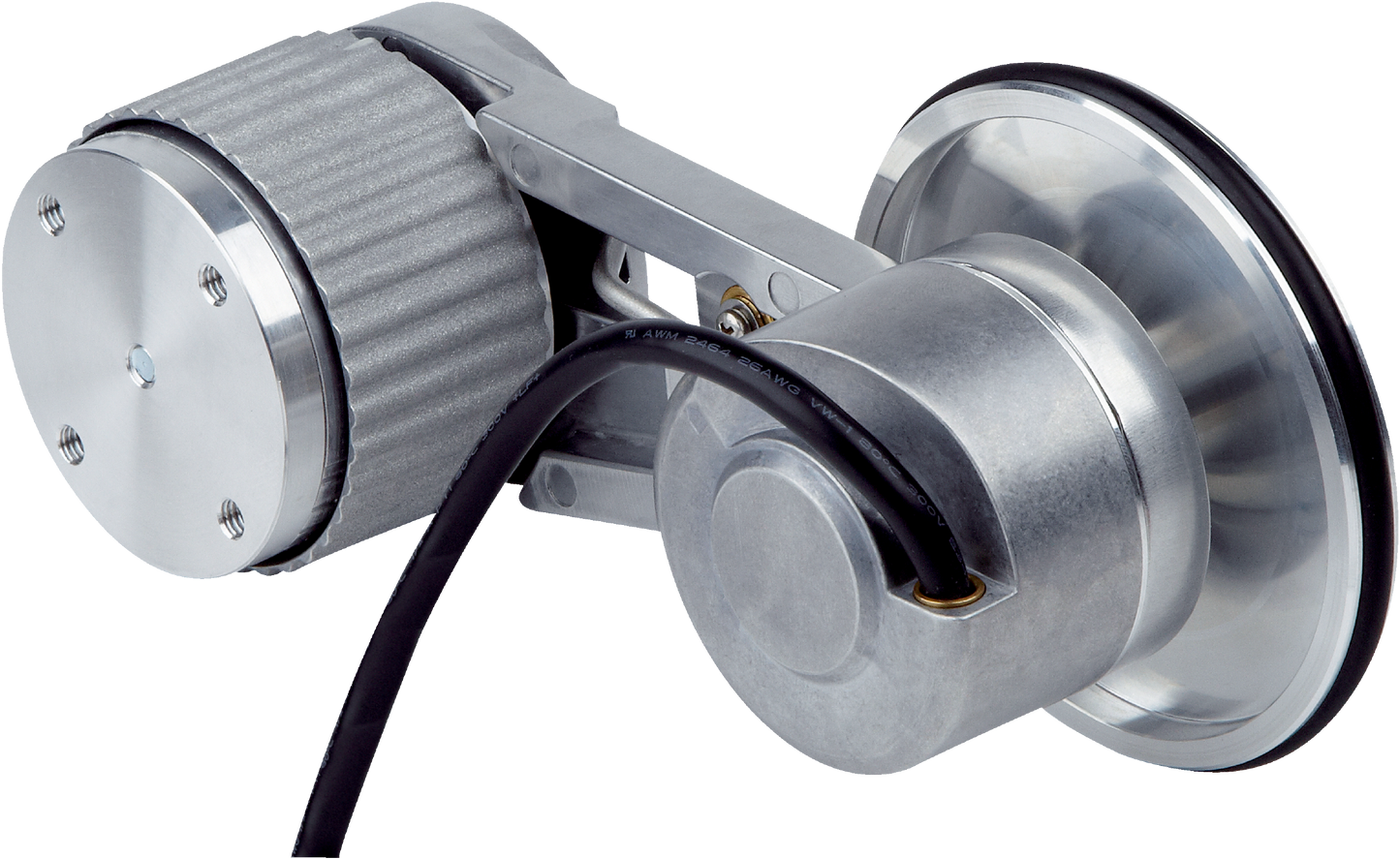

1122665 MWS120 - Incremental Motion Control Sensor, Measuring wheel mounted at the front (1,024)

Name: 1122665 MWS120 - Incremental Motion Control Sensor, Measuring wheel mounted at the front (1,024)
Brand: SICK
SKU: 1122665
Price: 2309.00 AED
Availability: InStock

SKU1122665BrandSICK

AED 2,309.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The 1122665 MWS120 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Featuring an incremental interface, this sensor delivers an exact 1,024 resolution and provides a reliable ttl / htl output signal type. Designed for secure and straightforward installation via a measuring wheel mounted at the front and operating on a standard 4.5 v ... 30 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Sick
Cable Length: 0.5 m
Series: MWS120
Pulses Per Revolution: 1,024
Output Signal Type: TTL / HTL
Supply Voltage: 4.5 ... 30 V

Resolution: 3.4
Interface: Incremental
Minimum Operating Temperature: -30 °C
Maximum Operating Temperature: +80 °C
Mounting Type: Measuring Wheel Mounted At The Front
Connection Type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m 1)
