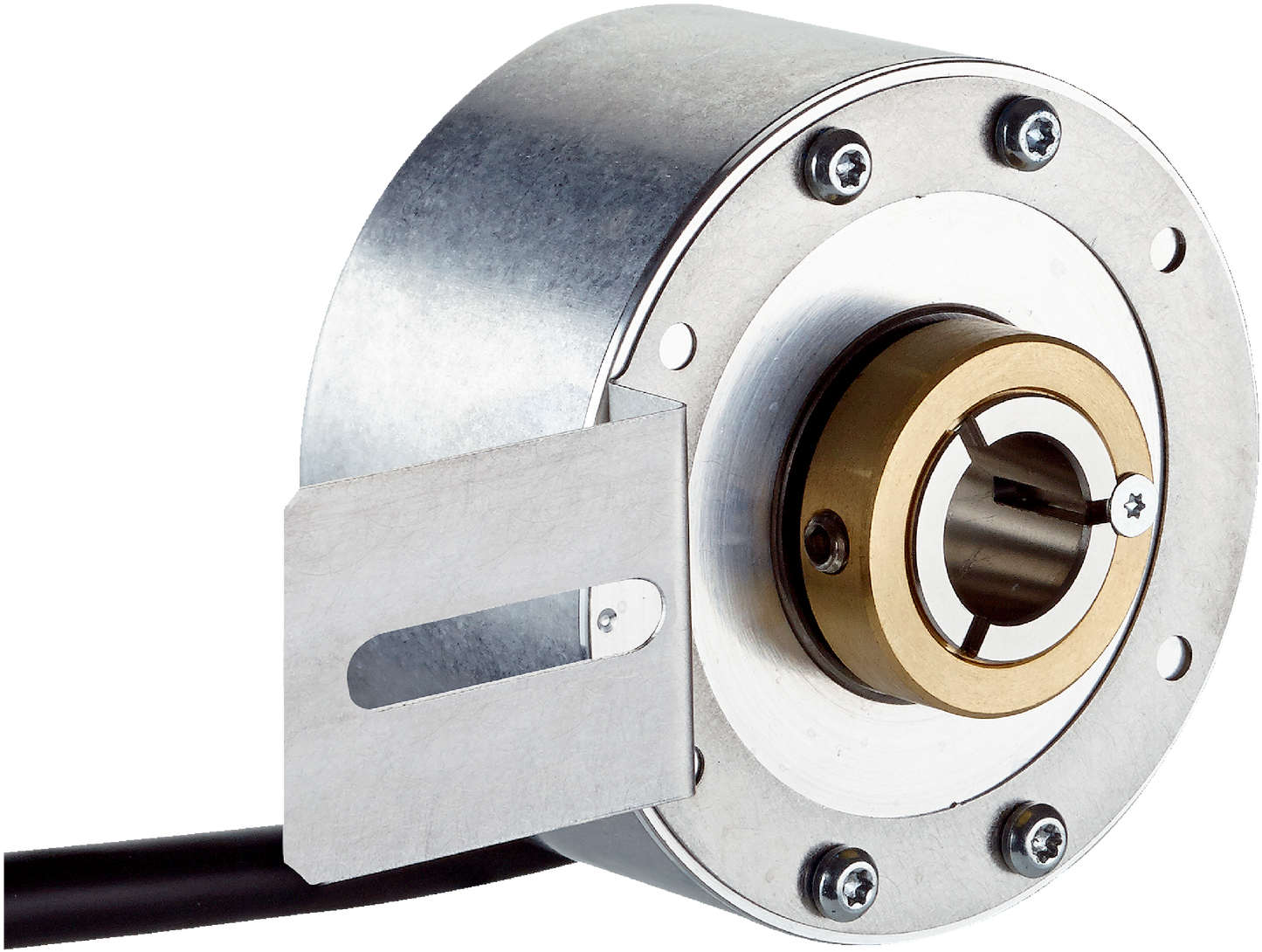

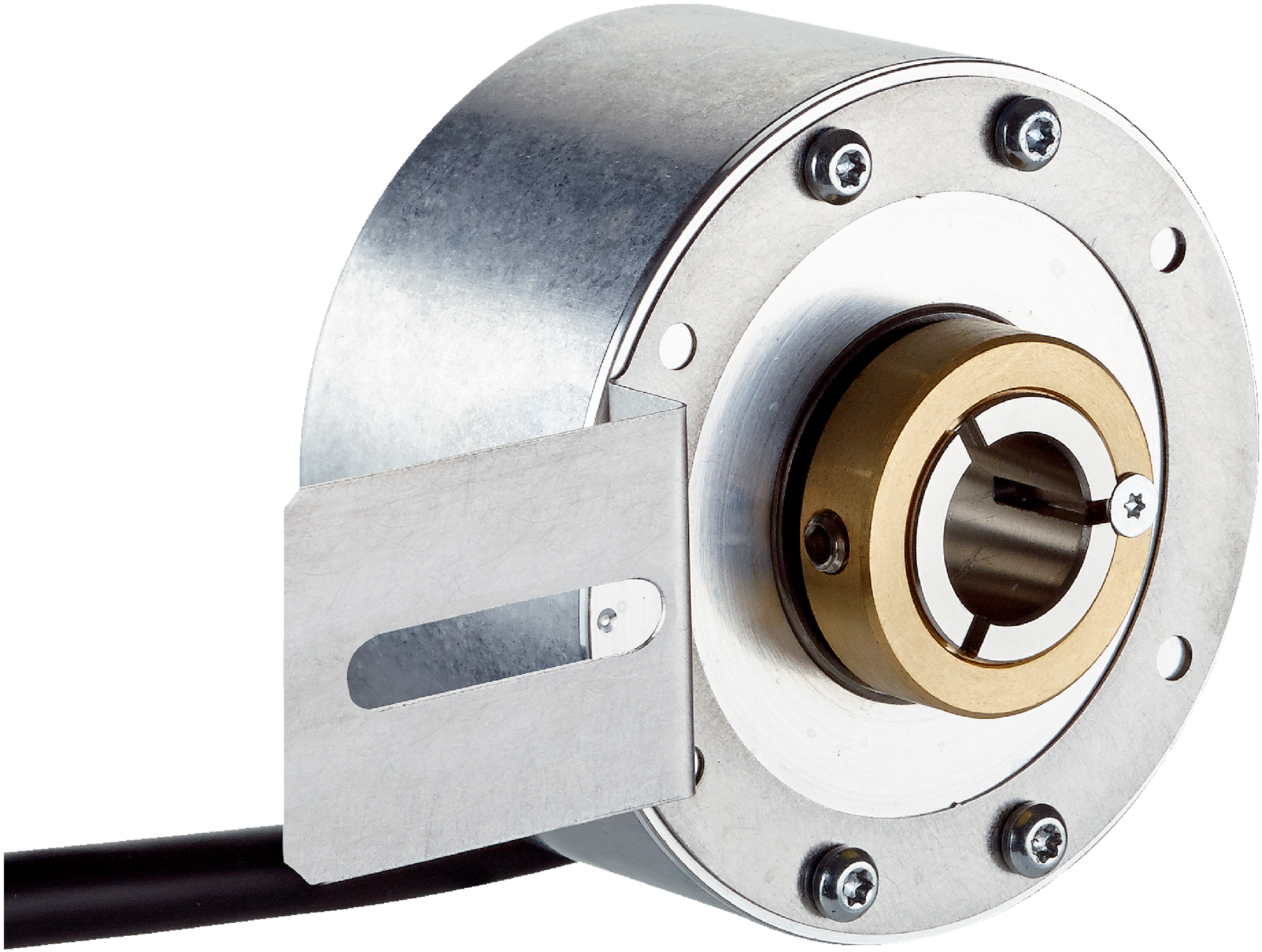

1121805 DBS60 - IP65 Motion Control Sensor, Through hollow shaft (200)

Name: 1121805 DBS60 - IP65 Motion Control Sensor, Through hollow shaft (200)
Brand: SICK
SKU: 1121805
Price: 1018.00 AED
Availability: InStock

SKU1121805BrandSICK

AED 1,018.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The 1121805 DBS60 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Rated to ip65 protection, this sensor delivers an exact 200 resolution and provides a reliable htl / push pull output signal type. Designed for secure and straightforward installation via a through hollow shaft and operating on a standard 10 ... 27 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Sick
Cable Length: 0.5 m
Series: DBS60
Pulses Per Revolution: 200
Maximum Revolutions: 6,000 min⁻¹
Output Signal Type: HTL / Push-Pull
Shaft Diameter: 15 mmFront clamp
Supply Voltage: 10 ... 27 V

Resolution: ≤ 90°, electric/pulses per revolution
IP Rating: IP65
Minimum Operating Temperature: -20 °C
Maximum Operating Temperature: +85 °C
Mounting Type: Through Hollow Shaft
Connection Type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m 1)
Current Rating: ≤ 30 mA, per channel
Switching Frequency: + 300 kHz 2)
