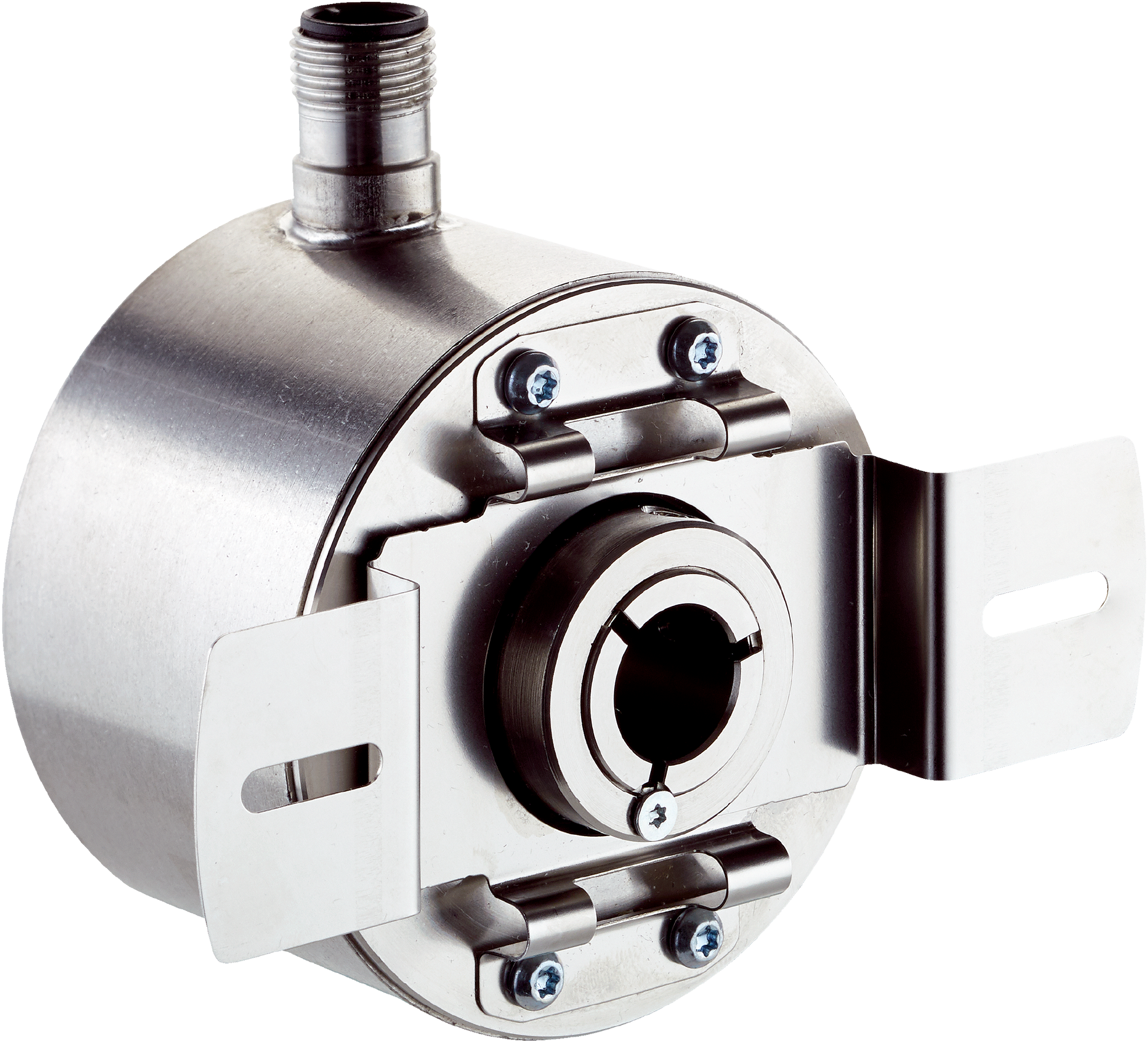

1114945 DBS60 - Incremental Motion Control Sensor, 2-sided stator coupling, slot, screw hole circle 63–83 mm (5,000)

1114945 DBS60 - Incremental Motion Control Sensor, 2-sided stator coupling, slot, screw hole circle 63–83 mm (5,000)

SKU1114945BrandSICK
AED 1,785.00
AED 1,785.00
Sale Sold out
Shipping calculated at checkout.

The 1114945 DBS60 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Utilizing advanced incremental encoder technology, this sensor delivers an exact 5,000 resolution and provides a reliable htl output signal type. Designed for secure and straightforward installation via a 2-sided stator coupling, slot, screw hole circle 63–83 mm and operating on a standard 4.5 ... 30 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Sick
  • Encoder Technology: Incremental
  • Series: DBS60
  • Pulses Per Revolution: 5,000
  • Maximum Revolutions: ≤ 6,000 min⁻¹
  • Output Signal Type: HTL
  • Shaft Type: Blind hollow shaft
  • Shaft Diameter: 15 mmFront clamp
  • Supply Voltage: 4.5 ... 30 V
  • Resolution: 90°, electric/pulses per revolution
  • Steps Per Revolution: 90°, electric/pulses per revolution
  • IP Rating: IP67
  • Interface: Incremental
  • Minimum Operating Temperature: -30 °C
  • Maximum Operating Temperature: +100 °C
  • Mounting Type: 2-Sided Stator Coupling, Slot, Screw Hole Circle 63–83 mm
  • Connection Type: Male connector, M12, 8-pin, radial
  • Current Rating: 30 mA
  • Switching Frequency: ≤ 300 kHz
