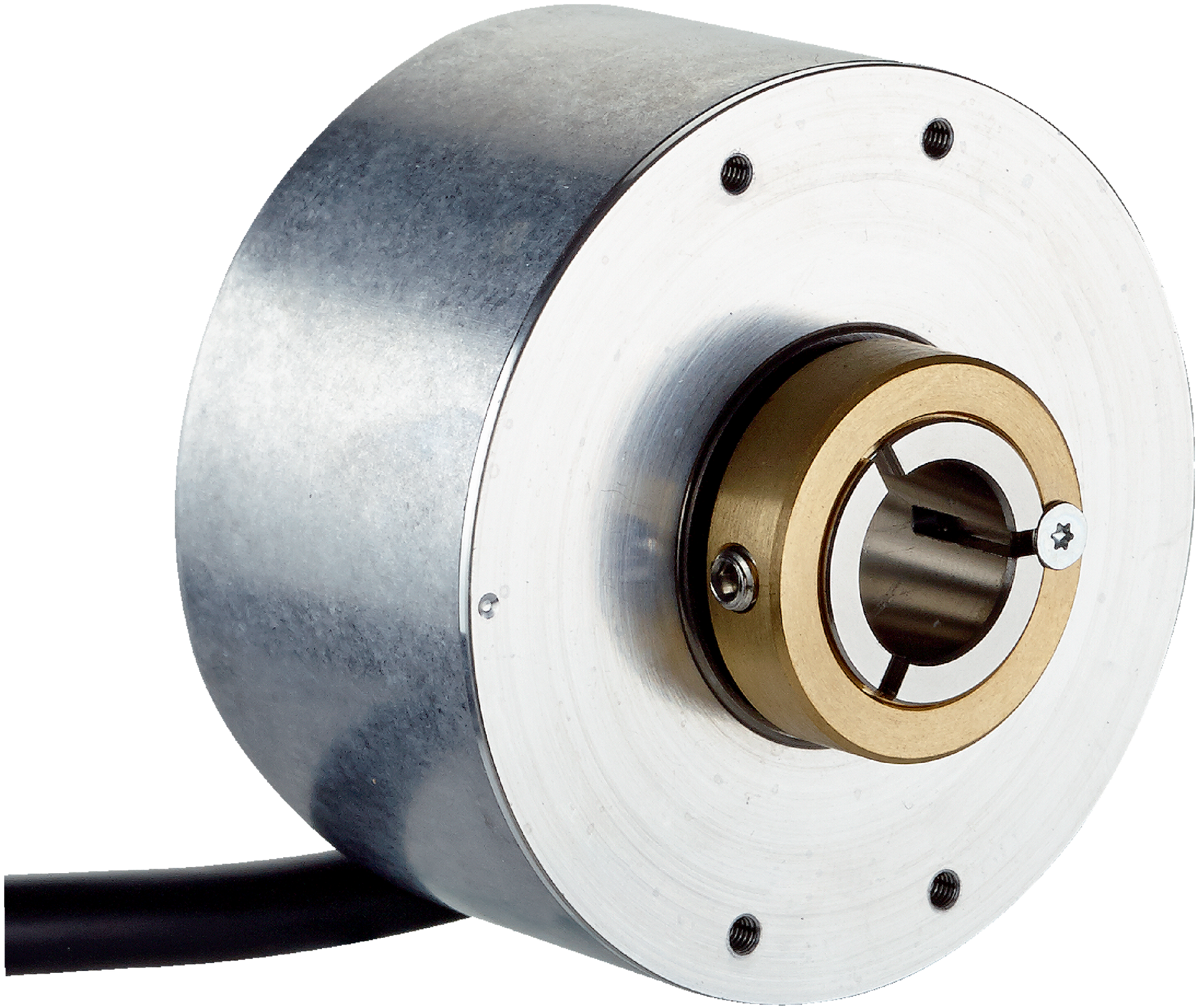

1110204 DBS60 - Incremental Motion Control Sensor, Without stator coupling, flange with 4 x M2,5 (100)

Name: 1110204 DBS60 - Incremental Motion Control Sensor, Without stator coupling, flange with 4 x M2,5 (100)
Brand: SICK
SKU: 1110204
Price: 971.00 AED
Availability: InStock

SKU1110204BrandSICK

AED 971.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The 1110204 DBS60 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Utilizing advanced incremental encoder technology, this sensor delivers an exact 100 resolution and provides a reliable ttl / rs-422 output signal type. Designed for secure and straightforward installation via a without stator coupling, flange with 4 x m2,5 and operating on a standard 10 ... 30 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Sick
Encoder Technology: Incremental
Cable Length: 0.5 m
Series: DBS60
Pulses Per Revolution: 100
Maximum Revolutions: 6,000 min⁻¹
Output Signal Type: TTL / RS-422
Shaft Type: Blind hollow shaft
Shaft Diameter: 14 mmFront clamp
Supply Voltage: 10 ... 30 V

Resolution: ≤ 90°, electric/pulses per revolution
Steps Per Revolution: ≤ 90°, electric/pulses per revolution
IP Rating: IP67
Interface: Incremental
Minimum Operating Temperature: -30 °C
Maximum Operating Temperature: +100 °C
Mounting Type: Without Stator Coupling, Flange With 4 x M2,5
Connection Type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m
Current Rating: 30 mA
Switching Frequency: + 300 kHz
