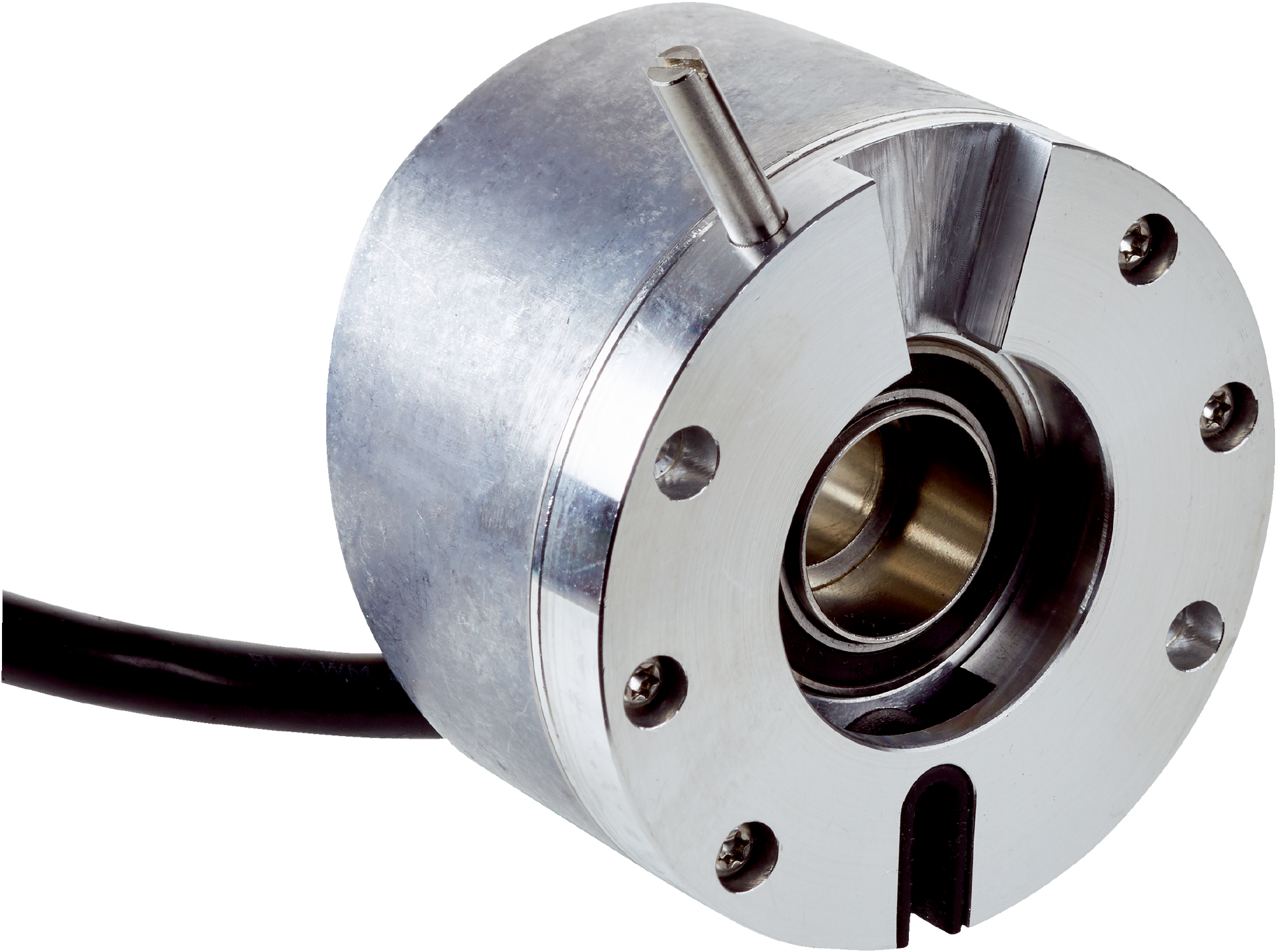

1109614 DBS60 - Incremental Motion Control Sensor, Axial and radial register pin mounting, for 4 mm register pin (1,024)

Name: 1109614 DBS60 - Incremental Motion Control Sensor, Axial and radial register pin mounting, for 4 mm register pin (1,024)
Brand: SICK
SKU: 1109614
Price: 1031.00 AED
Availability: InStock

SKU1109614BrandSICK

AED 1,031.00

Sale Sold out

Shipping calculated at checkout.

Quantity

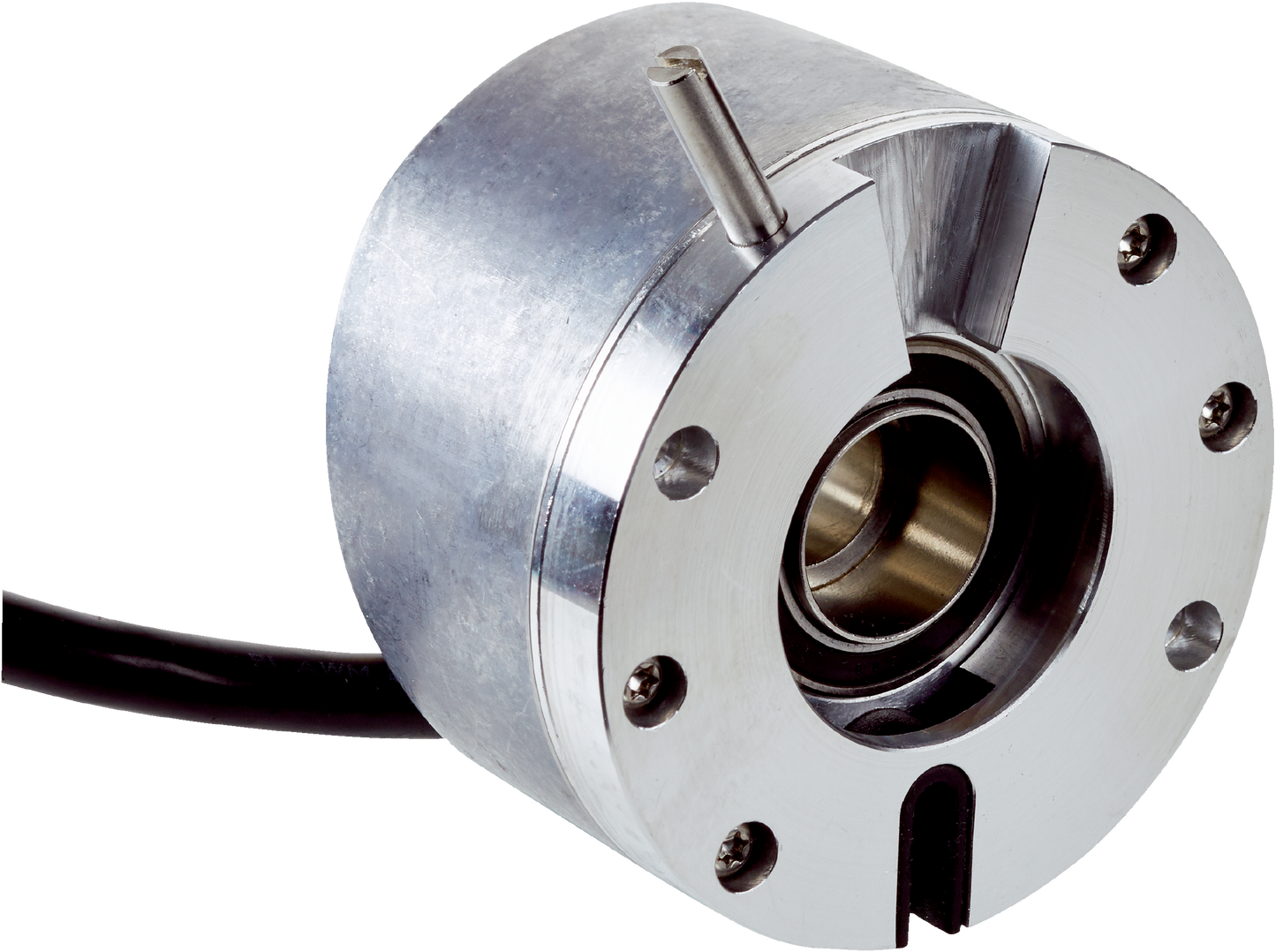

The 1109614 DBS60 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Utilizing advanced incremental encoder technology, this sensor delivers an exact 1,024 resolution and provides a reliable ttl / rs-422 output signal type. Designed for secure and straightforward installation via an axial and radial register pin mounting, for 4 mm register pin and operating on a standard 10 ... 30 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Sick
Encoder Technology: Incremental
Cable Length: 0.5 m
Series: DBS60
Pulses Per Revolution: 1,024
Maximum Revolutions: 6,000 min⁻¹
Output Signal Type: TTL / RS-422
Shaft Type: Through hollow shaft
Shaft Diameter: 12 mmRear clamping
Supply Voltage: 10 ... 30 V

Resolution: ≤ 90°, electric/pulses per revolution
Steps Per Revolution: ≤ 90°, electric/pulses per revolution
IP Rating: IP65
Interface: Incremental
Minimum Operating Temperature: -30 °C
Maximum Operating Temperature: +100 °C
Mounting Type: Axial And Radial Register Pin Mounting, For 4 mm Register Pin
Connection Type: Cable, 8-wire, universal, 0.5 m
Current Rating: 30 mA
Switching Frequency: + 300 kHz
