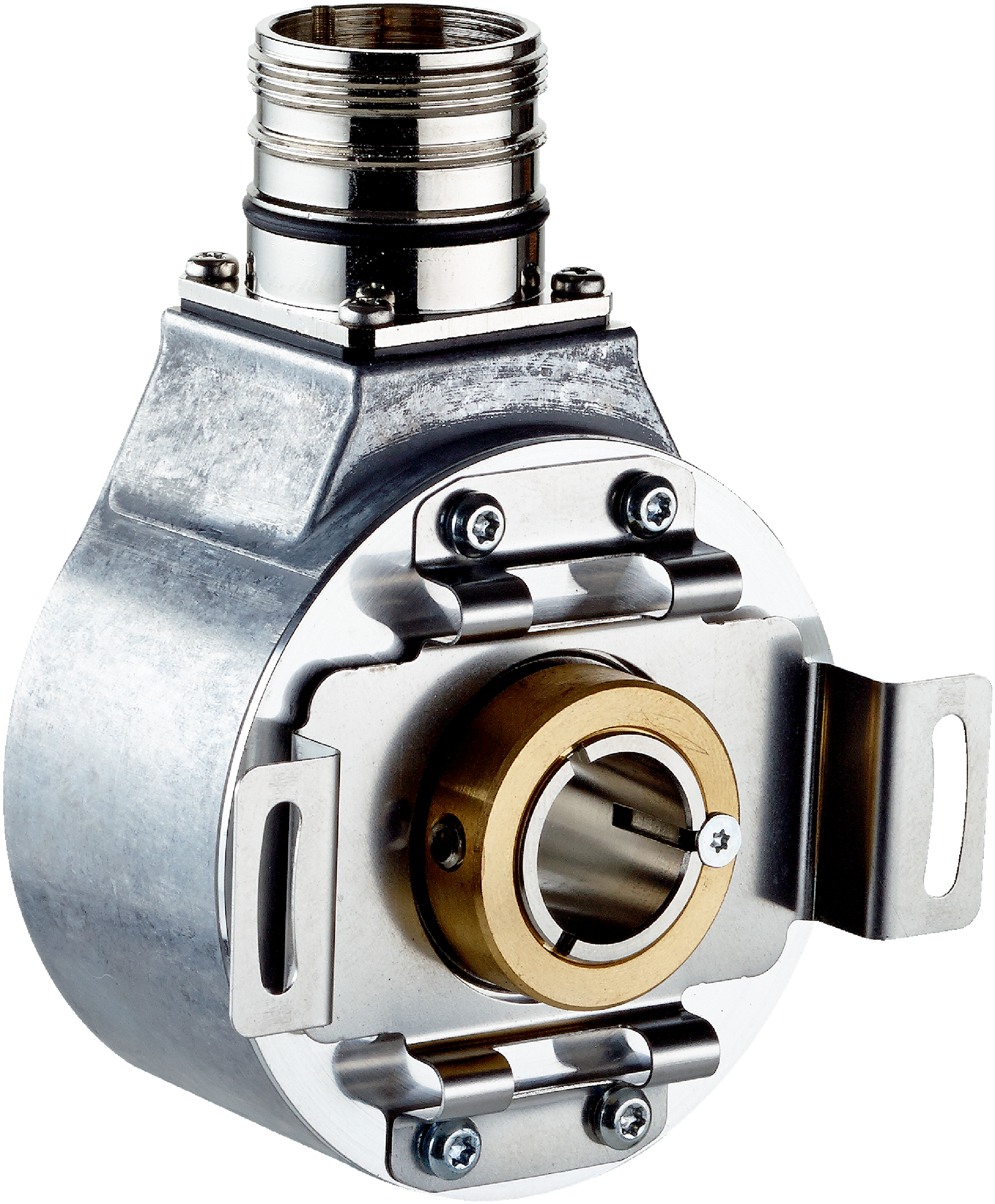

1103254 DBS60 - Incremental Motion Control Sensor, Stator coupling, 2-sided, screw hole circle 63 mm (2,048)

1103254 DBS60 - Incremental Motion Control Sensor, Stator coupling, 2-sided, screw hole circle 63 mm (2,048)

SKU1103254BrandSICK
AED 937.00
AED 937.00
Sale Sold out
Shipping calculated at checkout.

The 1103254 DBS60 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Utilizing advanced incremental encoder technology, this sensor delivers an exact 2,048 resolution and provides a reliable ttl / rs-422 output signal type. Designed for secure and straightforward installation via a stator coupling, 2-sided, screw hole circle 63 mm and operating on a standard 4.5 ... 5.5 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Sick
  • Encoder Technology: Incremental
  • Series: DBS60
  • Pulses Per Revolution: 2,048
  • Maximum Revolutions: 6,000 min⁻¹
  • Output Signal Type: TTL / RS-422
  • Shaft Type: Blind hollow shaft
  • Shaft Diameter: 15 mmFront clamp
  • Supply Voltage: 4.5 ... 5.5 V
  • Resolution: ≤ 90°, electric/pulses per revolution
  • Steps Per Revolution: ≤ 90°, electric/pulses per revolution
  • IP Rating: IP67
  • Interface: Incremental
  • Minimum Operating Temperature: -20 °C
  • Maximum Operating Temperature: +85 °C
  • Mounting Type: Stator Coupling, 2-Sided, Screw Hole Circle 63 mm
  • Connection Type: Male connector, M23, 12-pin, radial
  • Current Rating: 30 mA
  • Switching Frequency: + 300 kHz
