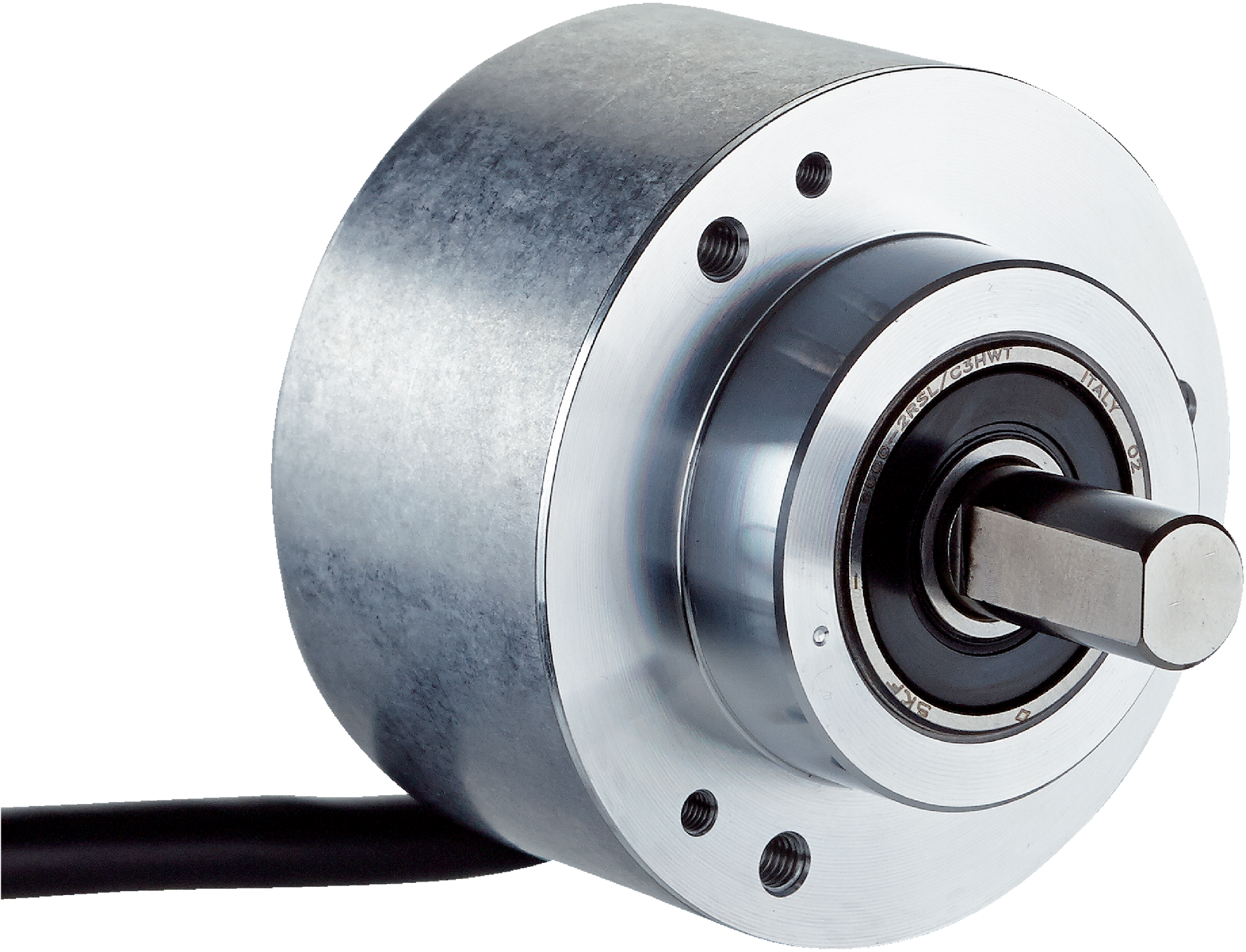

1088762 DBS60 - IP67 Motion Control Sensor, Solid shaft, face mount flange (500)

1088762 DBS60 - IP67 Motion Control Sensor, Solid shaft, face mount flange (500)

SKU1088762BrandSICK
AED 865.00
AED 865.00
Sale Sold out
Shipping calculated at checkout.

The 1088762 DBS60 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Rated to ip67 protection, this sensor delivers an exact 500 resolution and provides a reliable ttl / htl / htl 1) output signal type. Designed for secure and straightforward installation via a solid shaft, face mount flange and operating on a standard 4.5 ... 30 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Sick
  • Cable Length: 1.5 m
  • Series: DBS60
  • Pulses Per Revolution: 500
  • Maximum Revolutions: 6,000 min⁻¹
  • Output Signal Type: TTL / HTL / HTL 1)
  • Shaft Diameter: 10 mmWith flat
  • Supply Voltage: 4.5 ... 30 V
  • Resolution: ≤ 90°, electric/pulses per revolution
  • IP Rating: IP67
  • Minimum Operating Temperature: -30 °C
  • Maximum Operating Temperature: +100 °C
  • Mounting Type: Solid Shaft, Face Mount Flange
  • Connection Type: Cable, 8-wire, universal, 1.5 m 1)
  • Current Rating: ≤ 30 mA, per channel
  • Switching Frequency: + 300 kHz 3)
