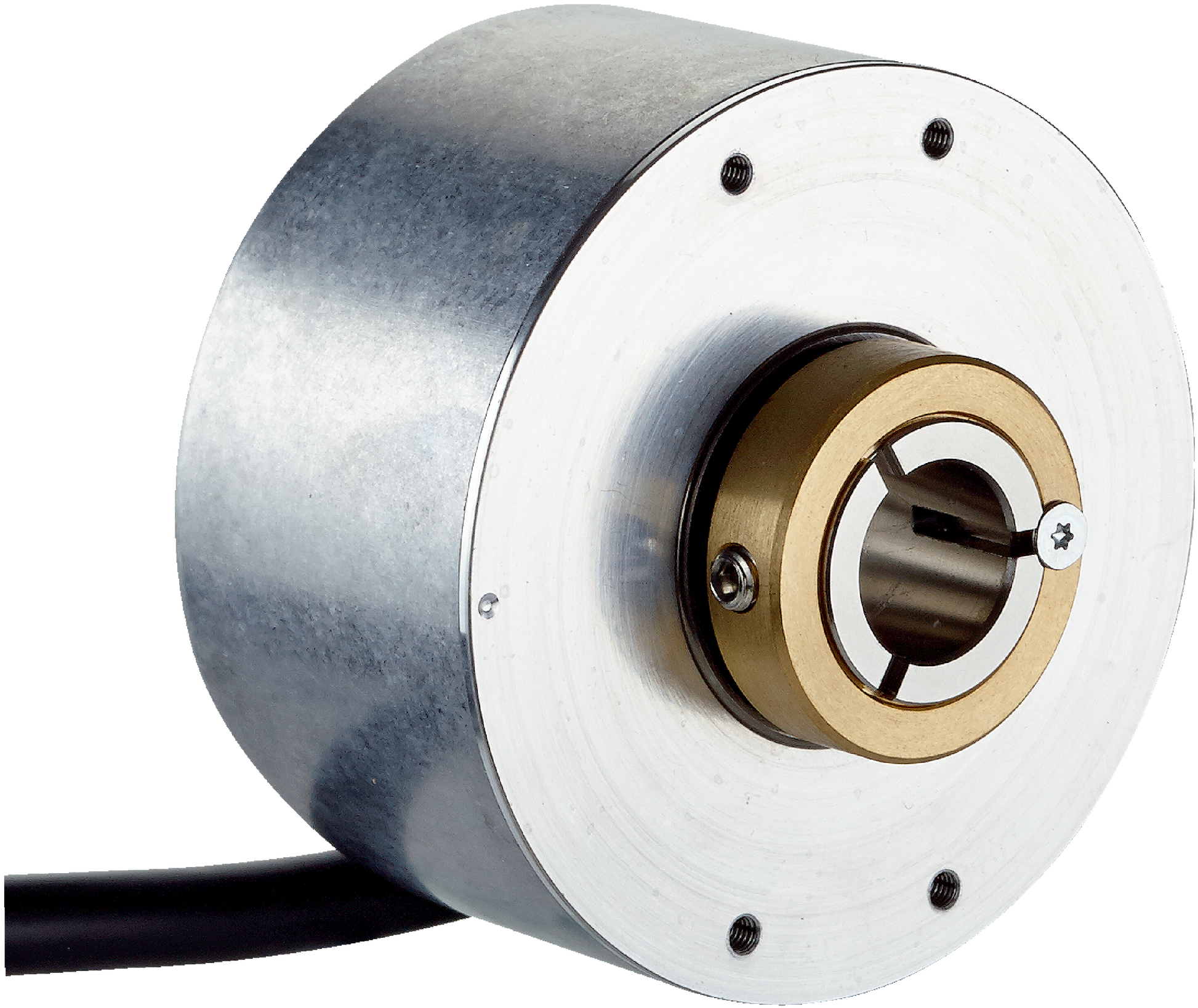

1085609 DBS60 - Incremental Motion Control Sensor, Without stator coupling, flange with 4 x M2,5 (500)

Name: 1085609 DBS60 - Incremental Motion Control Sensor, Without stator coupling, flange with 4 x M2,5 (500)
Brand: SICK
SKU: 1085609
Price: 1010.00 AED
Availability: InStock

SKU1085609BrandSICK

AED 1,010.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The 1085609 DBS60 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Utilizing advanced incremental encoder technology, this sensor delivers an exact 500 resolution and provides a reliable htl output signal type. Designed for secure and straightforward installation via a without stator coupling, flange with 4 x m2,5 and operating on a standard 4.5 ... 30 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Sick
Encoder Technology: Incremental
Cable Length: 0.5 m
Series: DBS60
Pulses Per Revolution: 500
Maximum Revolutions: 6,000 min⁻¹
Output Signal Type: HTL
Shaft Type: Through hollow shaft
Shaft Diameter: 5/8"Front clamp
Supply Voltage: 4.5 ... 30 V

Resolution: ≤ 90°, electric/pulses per revolution
Steps Per Revolution: ≤ 90°, electric/pulses per revolution
IP Rating: IP65
Interface: Incremental
Minimum Operating Temperature: -30 °C
Maximum Operating Temperature: +100 °C
Mounting Type: Without Stator Coupling, Flange With 4 x M2,5
Connection Type: Cable, 8-wire, with male connector, M12, 8-pin, universal, 0.5 m
Current Rating: 30 mA
Switching Frequency: + 300 kHz
