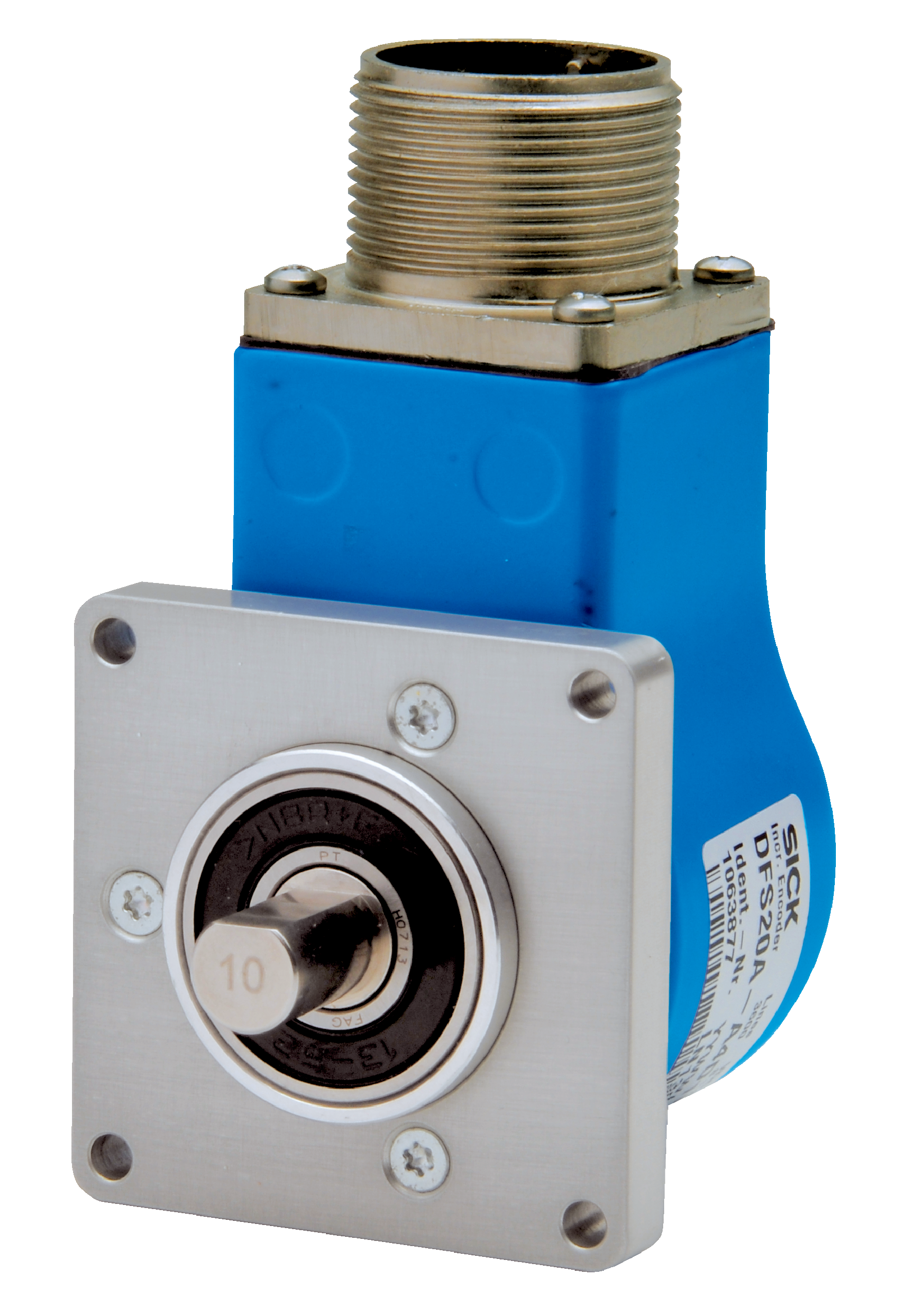

1083754 DFS2x - Incremental Motion Control Sensor, Solid shaft, Square flange (8,192)

1083754 DFS2x - Incremental Motion Control Sensor, Solid shaft, Square flange (8,192)

SKU1083754BrandSICK
AED 1,683.00
AED 1,683.00
Sale Sold out
Shipping calculated at checkout.

Available

The 1083754 DFS2x is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Utilizing advanced incremental encoder technology, this sensor delivers an exact 8,192 resolution and provides a reliable htl / push-pull output signal type. Designed for secure and straightforward installation via a solid shaft, square flange and operating on a standard 8 ... 30 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details
  • Brand: Sick
  • Encoder Technology: Incremental
  • Series: DFS2x
  • Pulses Per Revolution: 8,192
  • Maximum Revolutions: ≤ 9,000 min⁻¹
  • Output Signal Type: HTL / Push-Pull
  • Shaft Type: Solid shaft, Square flange
  • Shaft Diameter: 3/8"With flat
  • Supply Voltage: 8 ... 30 V
  • Resolution: ± 90°, electric/pulses per revolution
  • Steps Per Revolution: ± 90°, electric/pulses per revolution
  • IP Rating: IP67
  • Interface: Incremental
  • Overall Depth: 16 mm
  • Minimum Operating Temperature: -30 °C
  • Maximum Operating Temperature: +85 °C
  • Mounting Type: Solid Shaft, Square Flange
  • Connection Type: Male connector, MS, 6-pin, radial
  • Current Rating: 30 mA
  • Switching Frequency: 820 kHz
