• SICK - 1082736
1 1

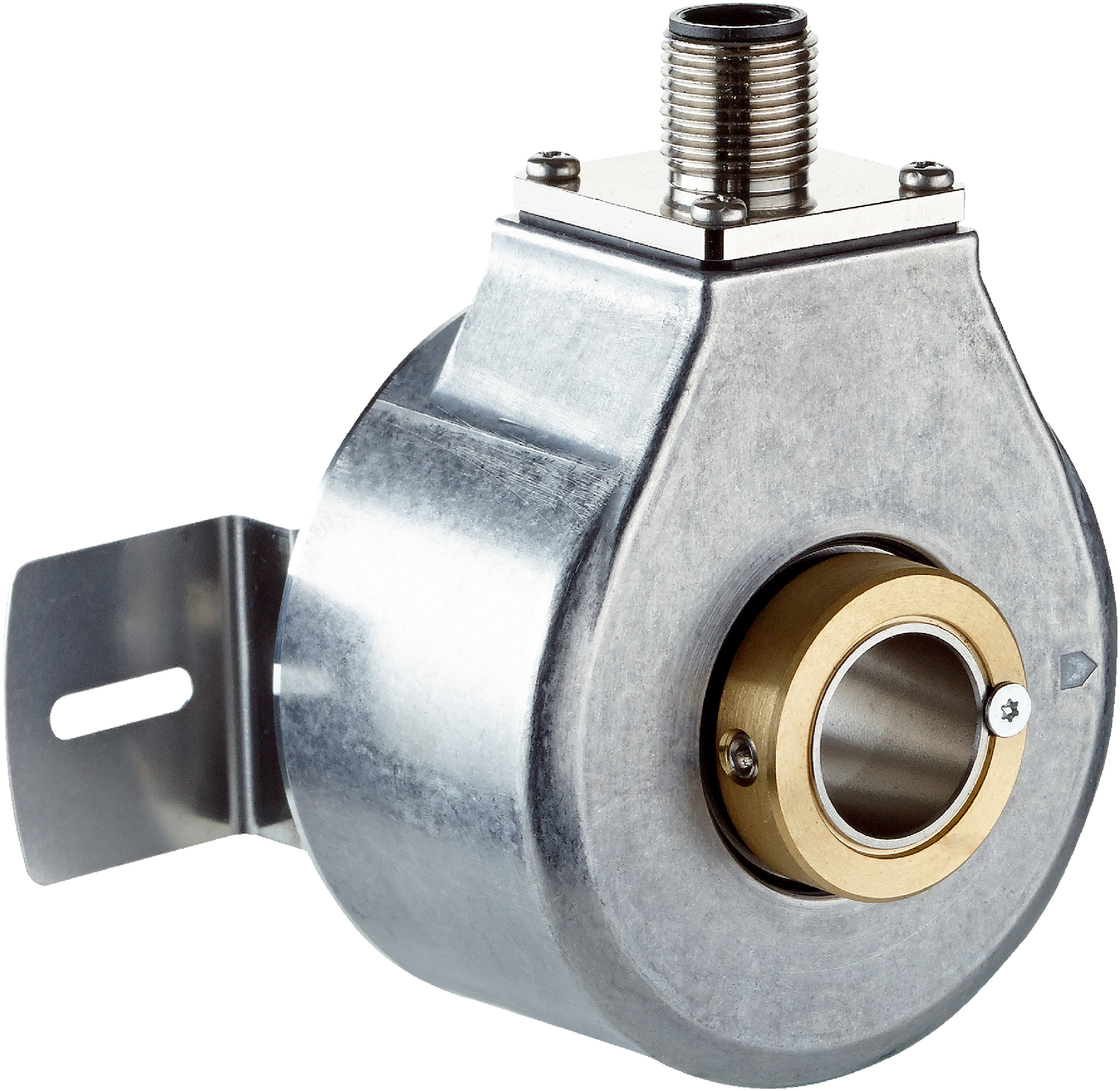

1082736 DBS60 - IP65 Motion Control Sensor, Through hollow shaft (2,500)

1082736 DBS60 - IP65 Motion Control Sensor, Through hollow shaft (2,500)

SKU1082736BrandSICK
AED 1,018.00
AED 1,018.00
Sale Sold out
Shipping calculated at checkout.

Available

The 1082736 DBS60 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Rated to ip65 protection, this sensor delivers an exact 2,500 resolution and provides a reliable htl / push pull output signal type. Designed for secure and straightforward installation via a through hollow shaft and operating on a standard 10 ... 27 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details
  • Brand: Sick
  • Series: DBS60
  • Pulses Per Revolution: 2,500
  • Maximum Revolutions: 6,000 min⁻¹
  • Output Signal Type: HTL / Push-Pull
  • Shaft Diameter: 10 mmRear clamping
  • Supply Voltage: 10 ... 27 V
  • Resolution: ≤ 90°, electric/pulses per revolution
  • IP Rating: IP65
  • Minimum Operating Temperature: -20 °C
  • Maximum Operating Temperature: +85 °C
  • Mounting Type: Through Hollow Shaft
  • Connection Type: Male connector, M12, 8-pin, radial
  • Current Rating: ≤ 30 mA, per channel
  • Switching Frequency: + 300 kHz 2)
