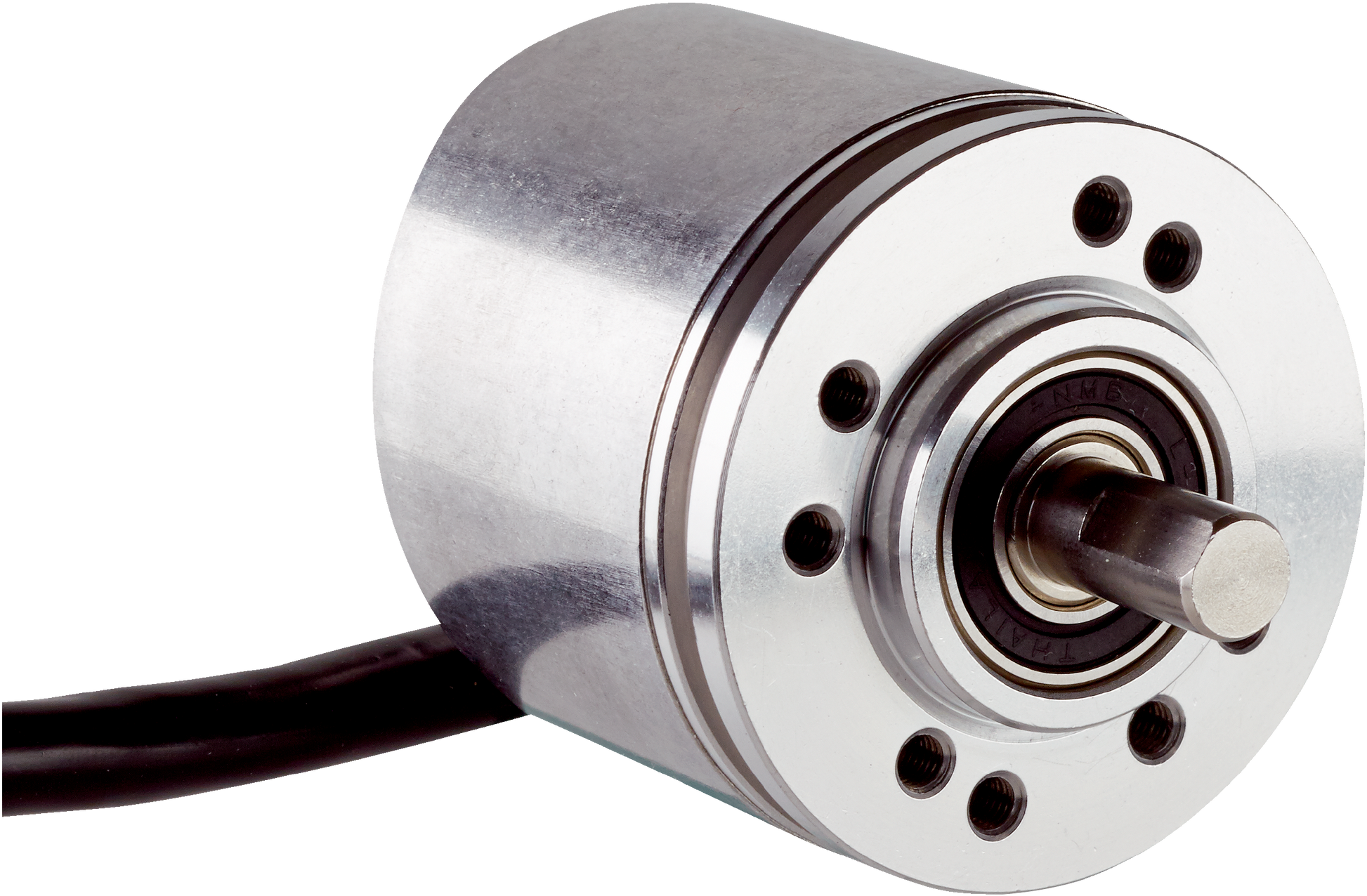

1065241 DBS36/50 - Incremental Motion Control Sensor, Solid shaft, face mount flange (256)

1065241 DBS36/50 - Incremental Motion Control Sensor, Solid shaft, face mount flange (256)

SKU1065241BrandSICK
AED 447.00
AED 447.00
Sale Sold out
Shipping calculated at checkout.

The 1065241 DBS36/50 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Utilizing advanced incremental encoder technology, this sensor delivers an exact 256 resolution and provides a reliable htl / push-pull output signal type. Designed for secure and straightforward installation via a solid shaft, face mount flange and operating on a standard 7 ... 30 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Sick
  • Encoder Technology: Incremental
  • Cable Length: 1.5 m
  • Series: DBS36/50
  • Pulses Per Revolution: 256
  • Maximum Revolutions: 6,000 min⁻¹
  • Output Signal Type: HTL / Push-Pull
  • Shaft Type: Solid shaft, face mount flange
  • Shaft Diameter: 6 mmWith flat
  • Supply Voltage: 7 ... 30 V
  • Resolution: 90°, electric/pulses per revolution
  • Steps Per Revolution: 90°, electric/pulses per revolution
  • IP Rating: IP65
  • Interface: Incremental
  • Overall Depth: 12 mm
  • Minimum Operating Temperature: -20 °C
  • Maximum Operating Temperature: +95 °C
  • Mounting Type: Solid Shaft, Face Mount Flange
  • Connection Type: Cable, 8-wire, universal, 1.5 m
  • Current Rating: 30 mA
  • Switching Frequency: ≤ 300 kHz
