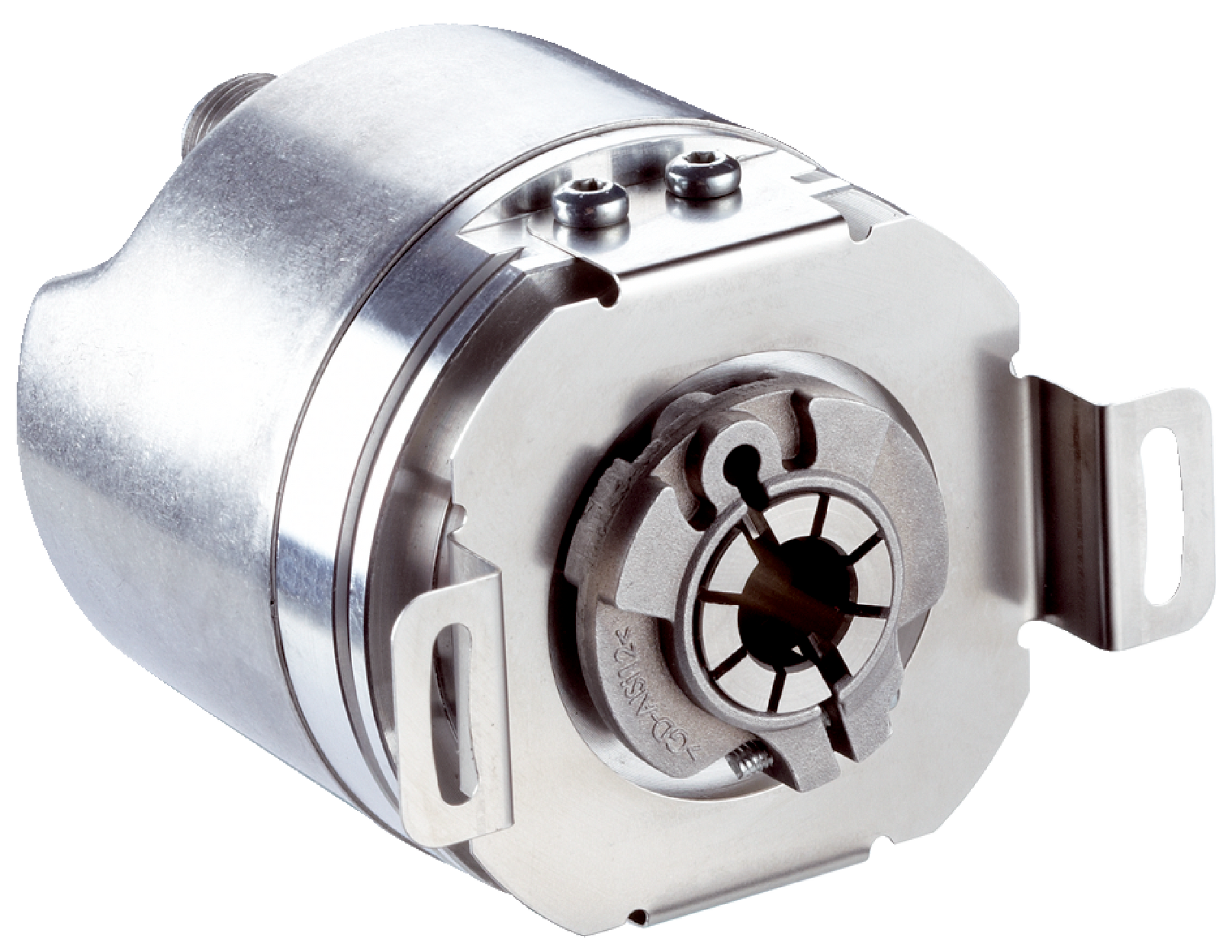

1038825 A3M60 - PROFIBUS DP Motion Control Sensor, Blind hollow shaft (8,192 (13 bit))

Name: 1038825 A3M60 - PROFIBUS DP Motion Control Sensor, Blind hollow shaft (8,192 (13 bit))
Brand: SICK
SKU: 1038825
Price: 2982.00 AED
Availability: InStock

SKU1038825BrandSICK

AED 2,982.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The 1038825 A3M60 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Featuring a profibus dp interface, this sensor delivers an exact 8,192 (13 bit) resolution and supports ≤ 9,000 min⁻¹ maximum revolutions. Designed for secure and straightforward installation via a blind hollow shaft and operating on a standard 10 ... 32 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Sick
Series: A3M60
Pulses Per Revolution: 8,192 (13 bit)
Maximum Revolutions: ≤ 9,000 min⁻¹
Shaft Type: Front clamp
Shaft Diameter: 12 mm
Supply Voltage: 10 ... 32 V
Resolution: 8,192 (13 bit)

Steps Per Revolution: 8,192 (13 bit)
IP Rating: IP67
Interface: PROFIBUS DP
Minimum Operating Temperature: -10 °C
Maximum Operating Temperature: +70 °C
Mounting Type: Blind Hollow Shaft
Connection Type: Male connector, 2x, M12, 5-pin, axialFemale connector, 1x, M12, 5-pin, axial
