• SICK - 1030142
1 1

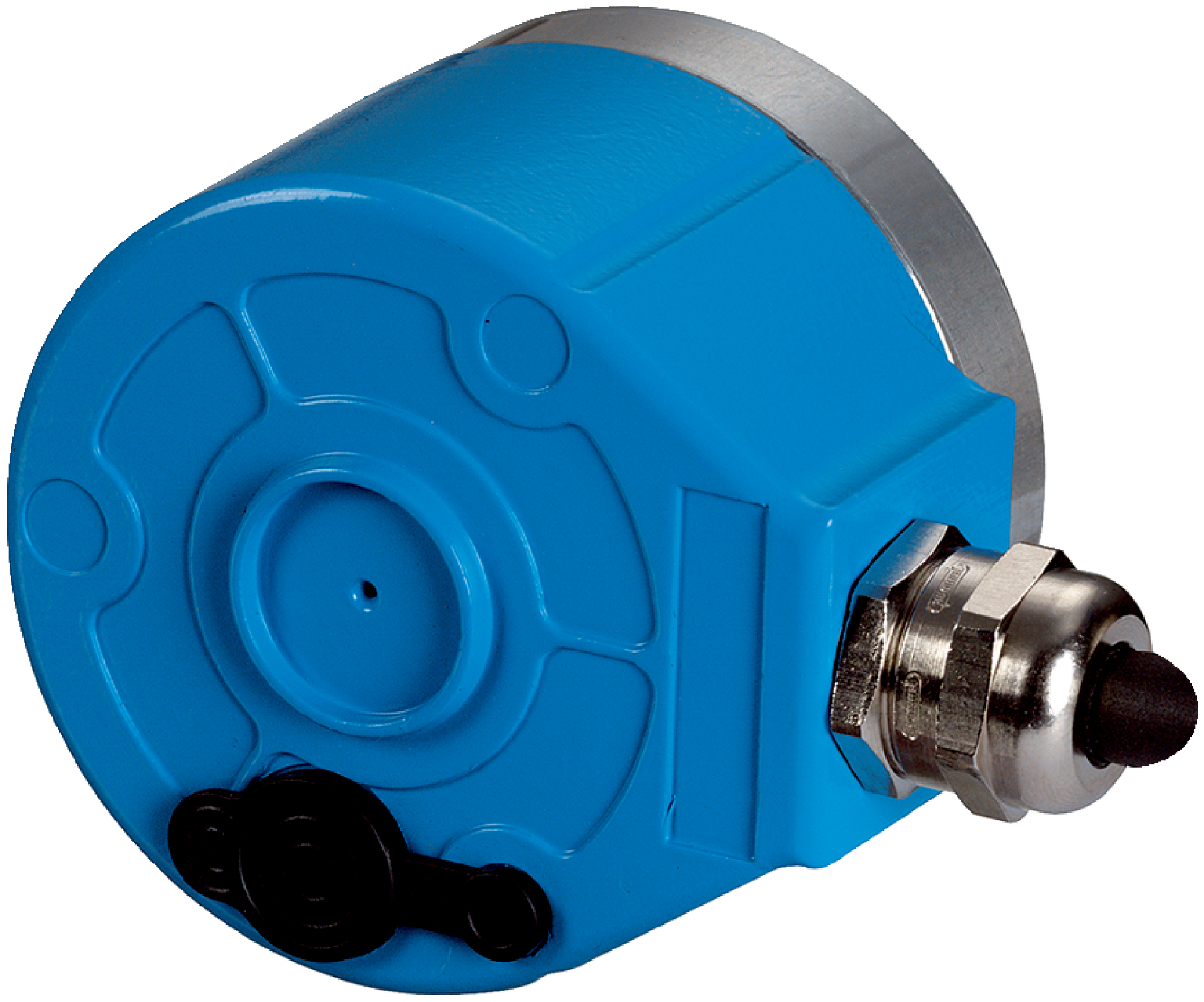

1030142 ARS60 - Parallel data world Motion Control Sensor, Blind hollow shaft (36)

1030142 ARS60 - Parallel data world Motion Control Sensor, Blind hollow shaft (36)

SKU1030142BrandSICK
AED 3,766.00
AED 3,766.00
Sale Sold out
Shipping calculated at checkout.

The 1030142 ARS60 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Featuring a parallel data world interface, this sensor delivers an exact 36 resolution and draws typ. 90 ma. Designed for secure and straightforward installation via a blind hollow shaft and operating on a standard 10 ... 32 v supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details
ParameterValue
Brand
Sick
Cable Length
3 m
Series
ARS60
Pulses Per Revolution
36
Maximum Revolutions
≤ 3,000 min⁻¹
Shaft Type
Front clamp
Shaft Diameter
15 mm
Supply Voltage
10 ... 32 V
Resolution
36
ParameterValue
Steps Per Revolution
36
IP Rating
IP66
Interface
Parallel data world
Minimum Operating Temperature
-20 °C
Maximum Operating Temperature
+85 °C
Mounting Type
Blind Hollow Shaft
Connection Type
Cable, 22-wire, radial, 3 m
Current Rating
Typ. 90 mA
