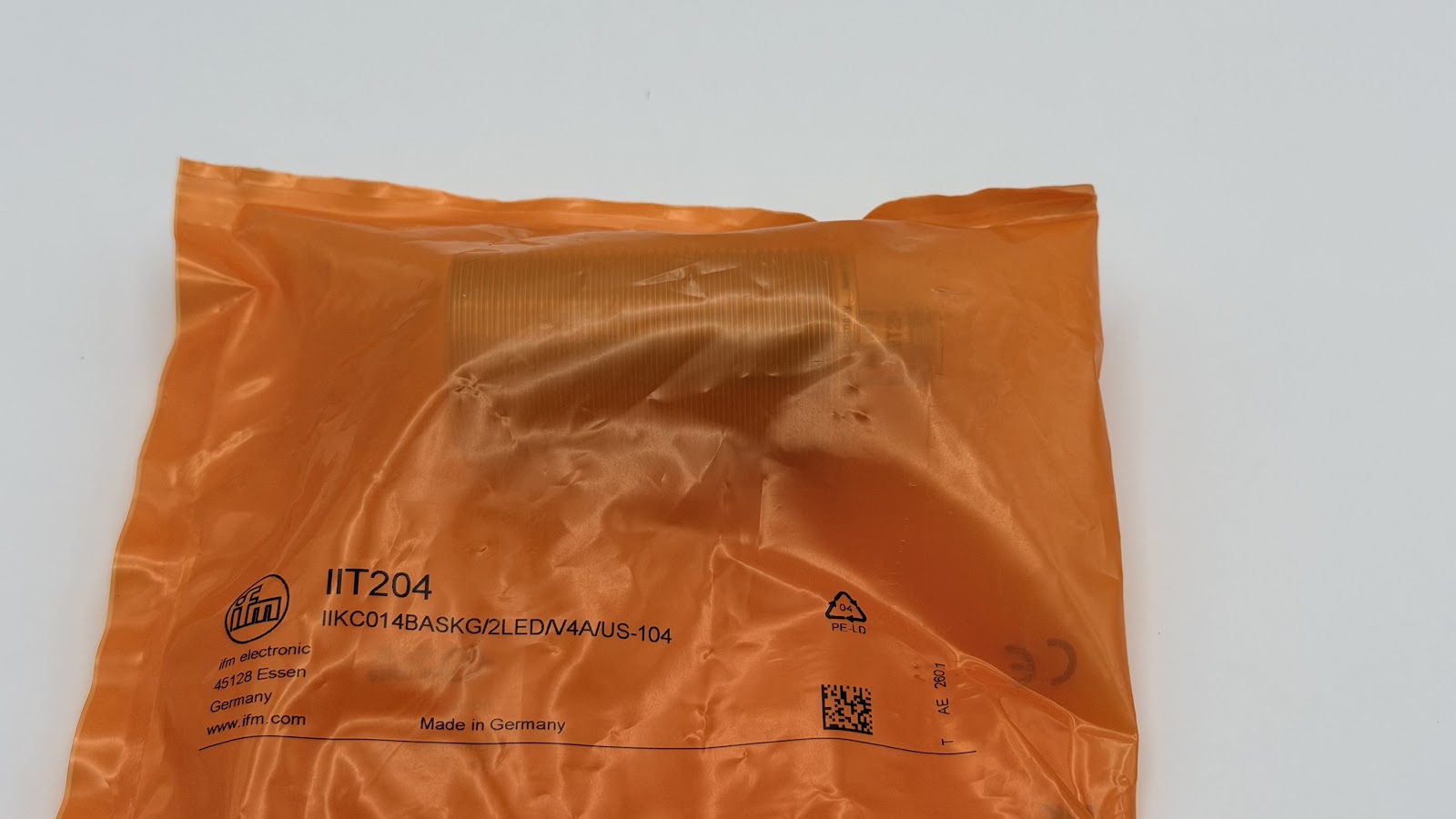

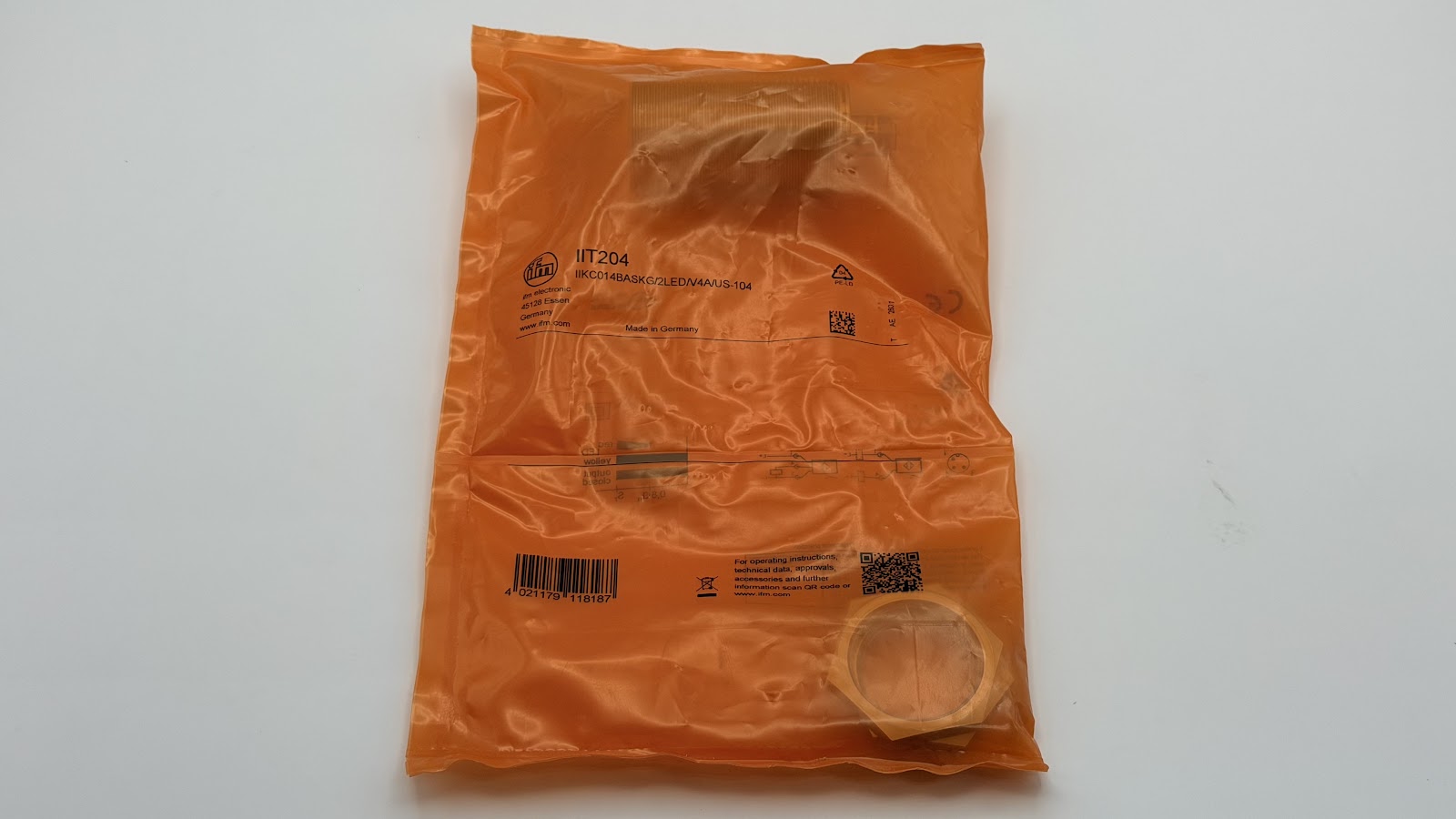

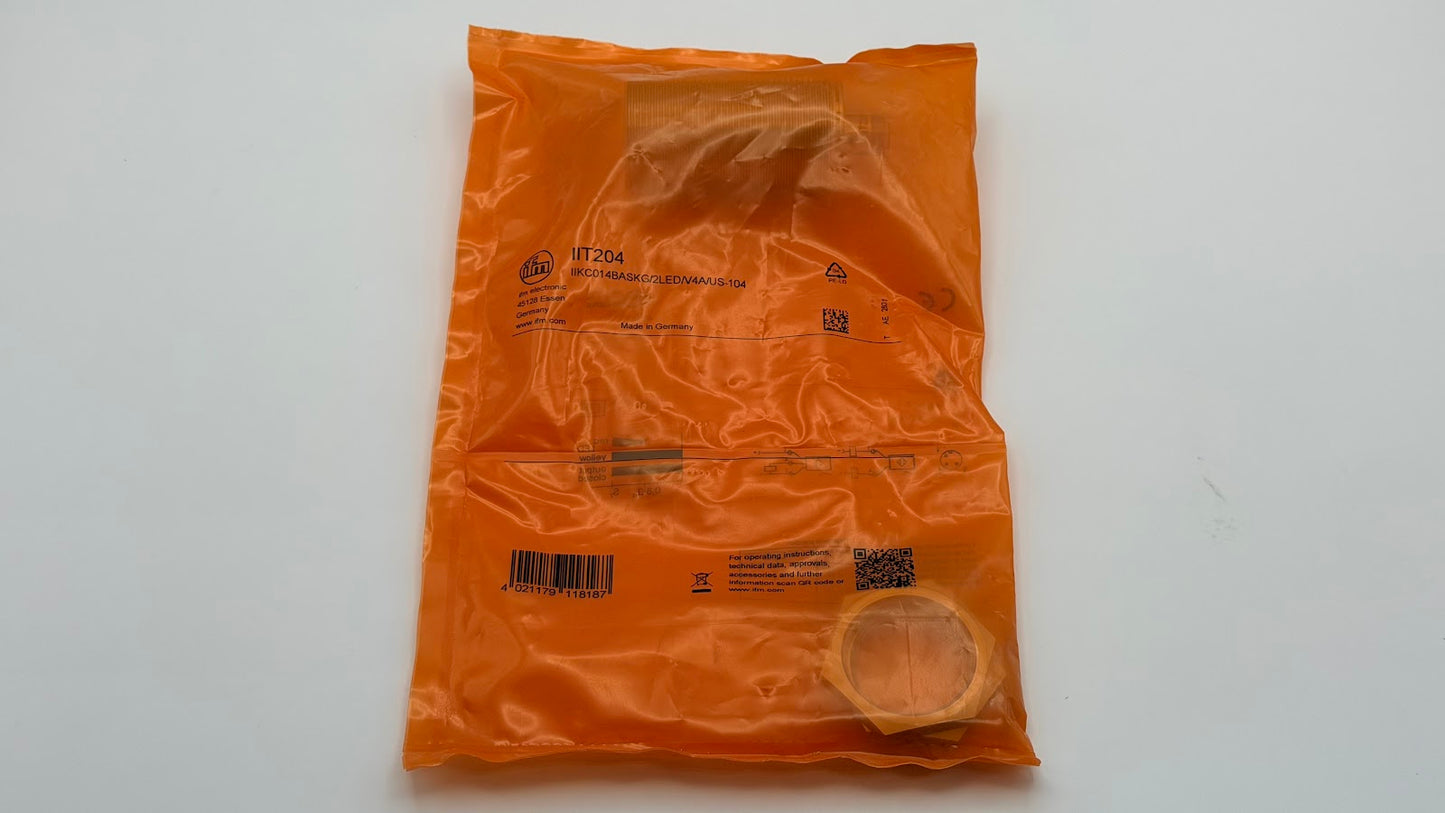

IFM IIT204 - Inductive Sensor, M30 Stainless 14 mm Range, IP69K

IFM IIT204 - Inductive Sensor, M30 Stainless 14 mm Range, IP69K

SKUIIT204BrandIFM
AED 263.00
AED 263.00
Sale Sold out
Shipping calculated at checkout.

Only 10 left

IFM IIT204 Inductive Sensor — flush-mountable M30 stainless steel (V4A/316L) sensor with an increased 14 mm range, rated to 100 °C and IP 68 / IP 69K. M30 x 1.5, 14 mm flush, PNP/NPN N/O, 10...36 V DC, 100 mA, M12 connector, IP 68 / IP 69K, 0...100 °C.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: IIT204

Also known as: IFM IIT204 proximity sensor / proximity switch.

IIT204 Applications

The IFM IIT204 is an inductive proximity sensor for non-contact detection of metallic targets. Its M30 x 1.5 threaded stainless steel (1.4404/316L) barrel is flush-mountable and offers an increased 14 mm sensing range. The PNP/NPN normally-open output switches up to 100 mA at 10...36 V DC. IP 68 / IP 69K protection, a PEEK sensing face and an ambient rating of 0...100 °C suit demanding, washdown and high-temperature positioning and end-of-travel applications, with a 4 x 90° yellow LED for switching status.

IIT204 Specifications

Brand IFM Product Type Inductive sensor
IFM Type Code IIKC014BASKG/M/V4A/US-104-DRS Operating voltage 10...36 V DC
Current consumption 10 mA (at 24 V) Sensing range 14 mm
Real sensing range (Sr) 14 mm ± 10 % Output type PNP/NPN
Output function normally open Permanent current rating 100 mA
Voltage drop 2.5 V Switching frequency 100 Hz
Housing / thread M30 x 1.5, L = 70 mm, stainless steel (1.4404/316L), flush mountable Sensing face material PEEK
Electrical connection M12 connector, gold-plated contacts Degree of protection IP 68 / IP 69K
Ambient temperature 0...100 °C

IIT204 Datasheet & Manual

Download Datasheet & ManualIFM IIT204 · PDF · Official IFM document

IIT204 – Frequently Asked Questions (FAQ)

What is the sensing range of the IFM IIT204?

The IIT204 has an increased rated sensing range of 14 mm (real sensing range Sr = 14 mm ± 10 %), and it is flush mountable.

What output type and function does the IIT204 provide?

It has a PNP/NPN switching output configured as normally open (NO), rated at 100 mA permanent current with a 2.5 V max voltage drop.

What is the operating voltage and current draw of the IIT204?

The IIT204 operates on 10...36 V DC with a current consumption of about 10 mA at 24 V and a switching frequency of 100 Hz.

How is the IIT204 connected electrically?

Via an M12 connector with gold-plated contacts.

What is the housing and thread size of the IIT204?

A flush-mountable M30 x 1.5 threaded barrel, 70 mm long, made of stainless steel (1.4404/316L) with a PEEK sensing face.

What is the IP protection rating of the IIT204?

IP 68 and IP 69K.

What ambient temperature range does the IIT204 tolerate?

0...100 °C (UL approval applies to Ta 0...40 °C).

Is the IIT204 flush or non-flush mountable?

The IIT204 is flush (embeddable) mountable in metal.
