MPN / SKU: EVC014
Also known as: IFM EVC014 cable / cordset / connecting cable.
EVC014 Applications

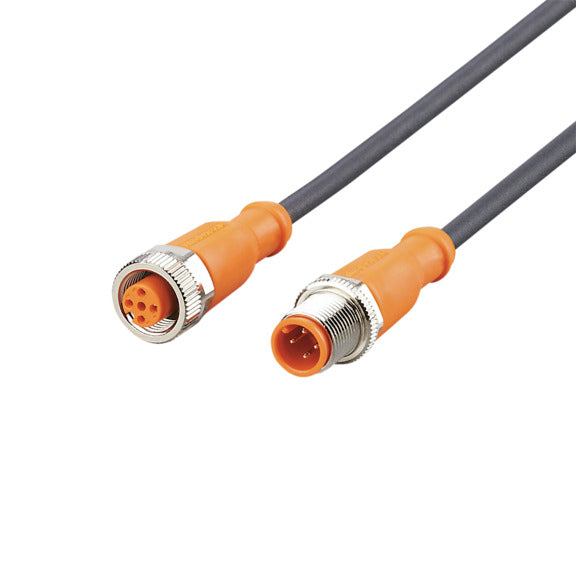

The IFM EVC014 M12 patchcord links a sensor to an I/O module or splitter with a 5 m male-to-female connection. Its halogen-free PUR jacket resists oils and coolants and is drag-chain rated for moving machinery.
How long is the IFM EVC014 cable and what is the jacket material?
The EVC014 is 5 m long with a halogen-free black PUR jacket measuring 4.3 mm in diameter.
What connectors does the IFM EVC014 have?
It is a double-ended cordset with 1 x M12 straight plug (male) and 1 x M12 straight socket (female), both A-coded and 4-pole with gold-plated contacts and orange TPU moulded bodies.
How many cores does the IFM EVC014 have and what is the wire cross-section?
The EVC014 has 4 cores with a cross-section of 4 x 0.34 mm2 (42 x 0.1 mm dia. strands).
What are the electrical ratings of the IFM EVC014?
The EVC014 is rated for an operating voltage of < 250 V AC / < 300 V DC, a maximum total current of 4 A, and protection class II.
What IP rating does the IFM EVC014 offer?
The EVC014 is rated IP 65, IP 67, IP 68 and IP 69K.
What is the operating temperature range of the IFM EVC014?
The EVC014 has an ambient operating temperature range of -25...90 C and a storage temperature range of -25...55 C.
Is the IFM EVC014 suitable for flexible or moving applications?
Yes; for flexible use it has a minimum bending radius of 10 x the cable diameter, is rated for more than 5 million bending cycles, and withstands torsional strain of +/- 180 deg/m.
What locking and tightening torque does the IFM EVC014 use?
Both connector ends use nickel-plated brass locking nuts with a tightening torque of 0.6...1.5 Nm.
