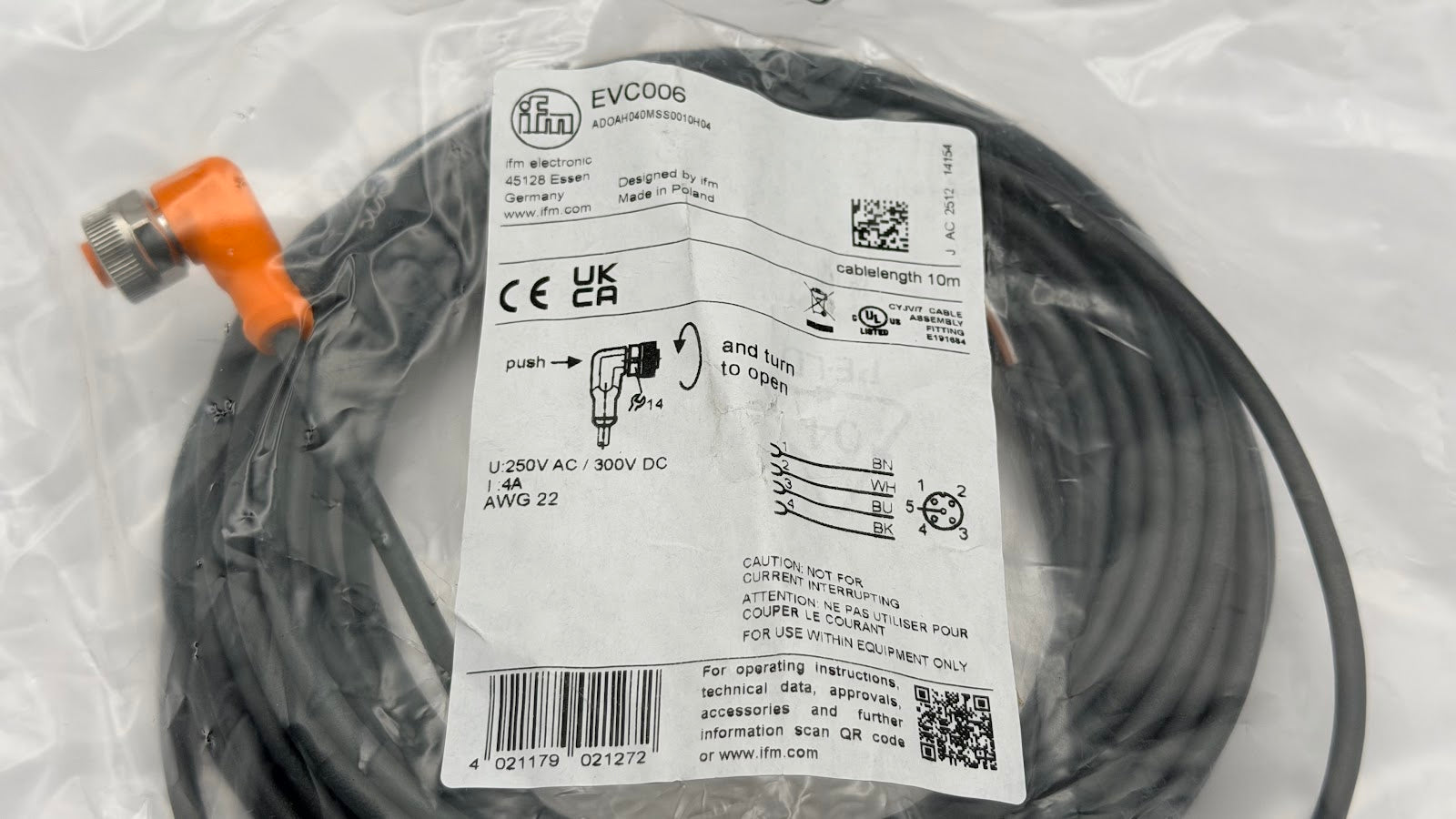

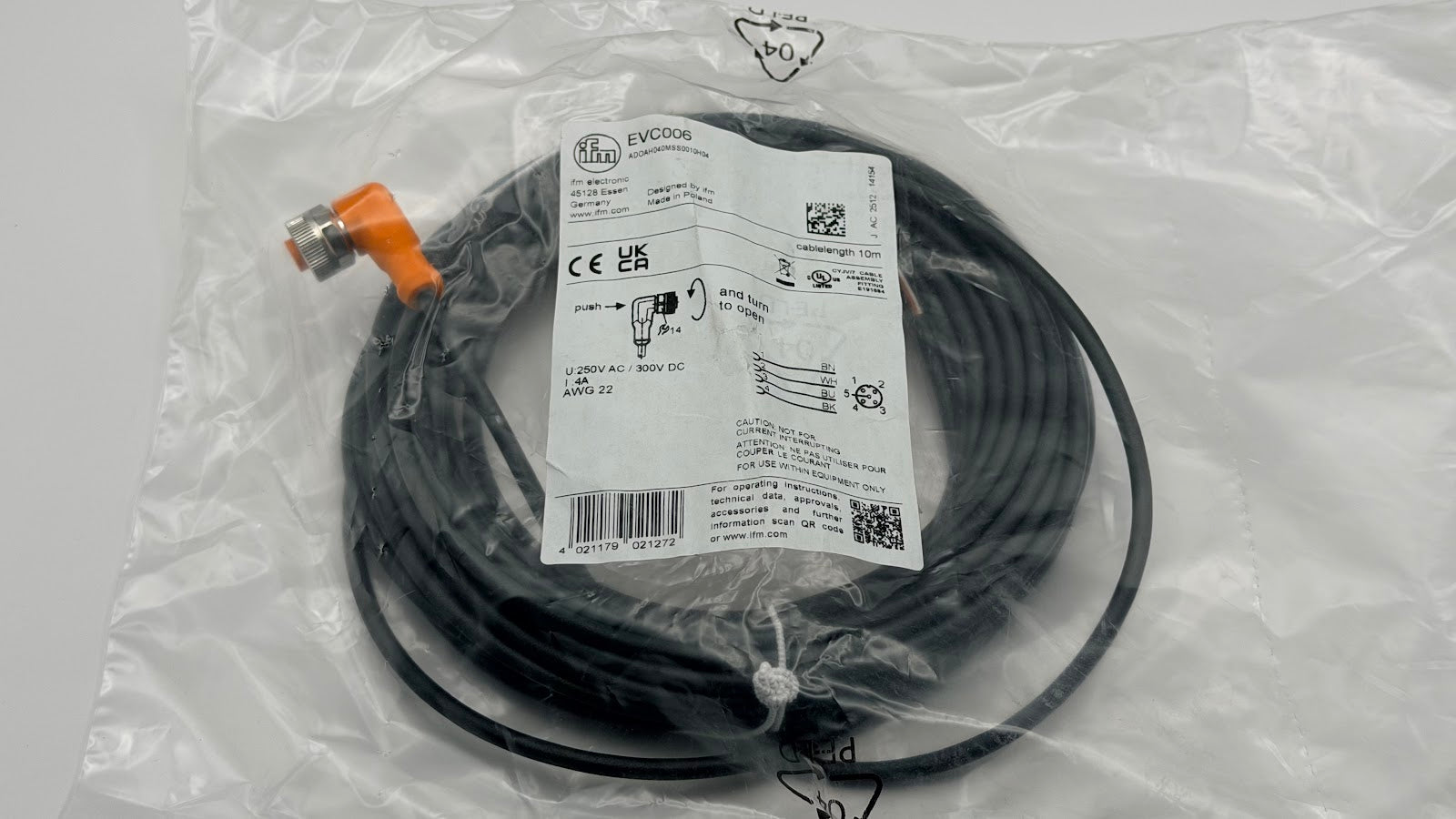

MPN / SKU: EVC006
Also known as: IFM EVC006 cable / cordset / connecting cable.
EVC006 Applications
The IFM EVC006 M12 female cordset connects sensors and actuators to controllers over a 10 m run. Its halogen-free PUR jacket resists oils and coolants and is rated for continuous drag-chain movement, making it suited to machine tools, handling systems and packaging lines. The angled, gold-plated M12 socket seals to IP69K for washdown environments.
What are the cable length and construction of the IFM EVC006?
The IFM EVC006 has a 10 m halogen-free PUR cable, black, Ø 4.3 mm, with 4 x 0.34 mm2 cores (42 x Ø 0.1 mm stranding).
What connector does the EVC006 use?
The IFM EVC006 terminates in one M12 A-coded angled socket (female) with 4 gold-plated contacts.
What are the electrical ratings of the EVC006?
The IFM EVC006 is rated for < 250 V AC / < 300 V DC operating voltage and a maximum current of 4 A (protection class II).
What IP rating and temperature range does the EVC006 have?
The IFM EVC006 carries IP 65, IP 67, IP 68 and IP 69K protection and operates from -25...90 degrees C (storage -25...55 degrees C).
What are the wire colors of the EVC006?
The IFM EVC006 uses BK (black), BN (brown), BU (blue) and WH (white) wire colors.
Is the EVC006 suitable for drag-chain use?
Yes. The IFM EVC006 is drag-chain suitable with a minimum bending radius of 10x the cable diameter, > 5 million bending cycles and +/-180 degrees/m torsional strain.
What is the tightening torque for the EVC006 connector?
The IFM EVC006 connector has a tightening torque of 0.6...1.5 Nm with a nickel-plated brass locking nut and FKM seal.
