MPN / SKU: EVC003
Also known as: IFM EVC003 cable / cordset / connecting cable.
EVC003 Applications

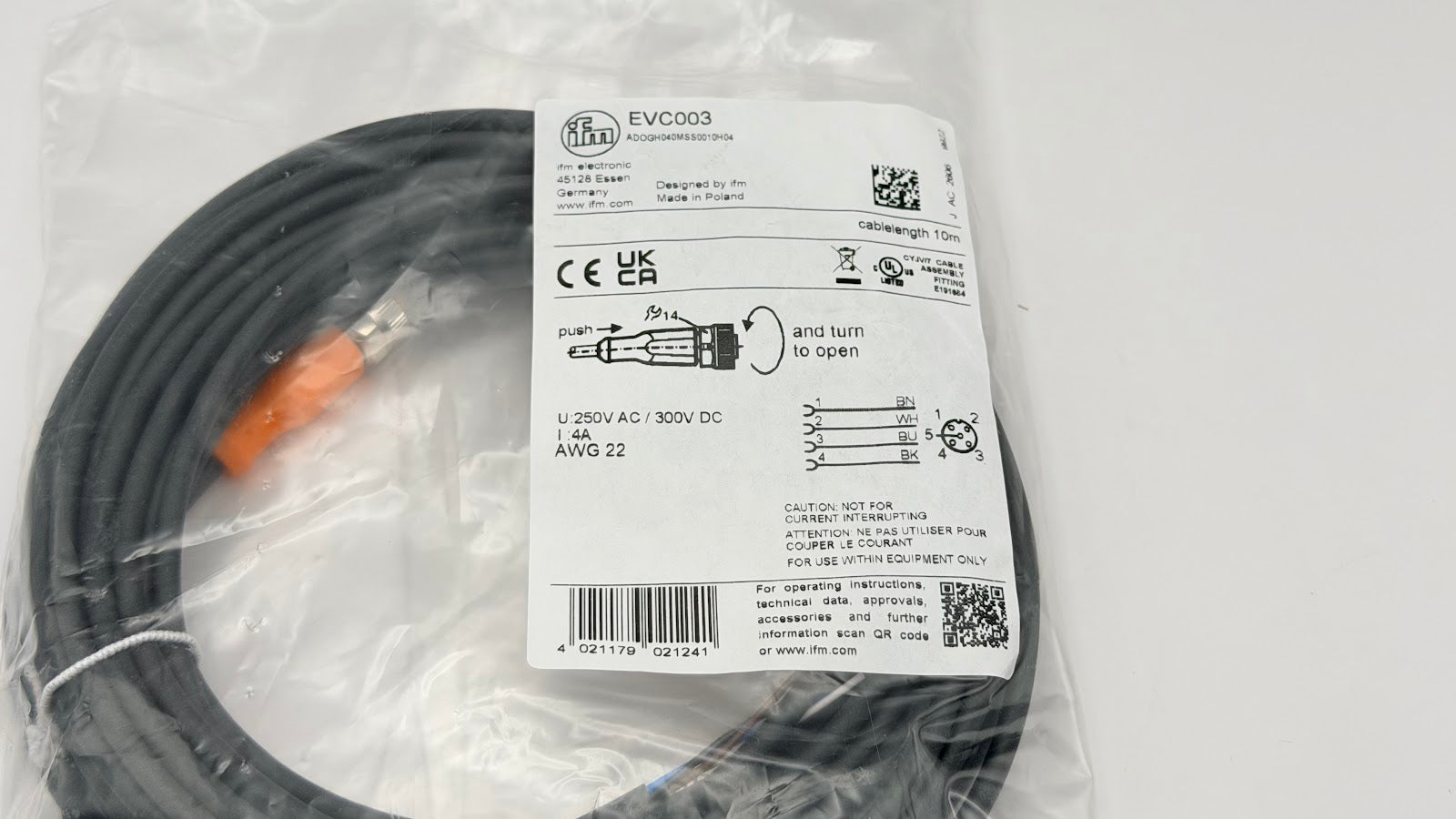

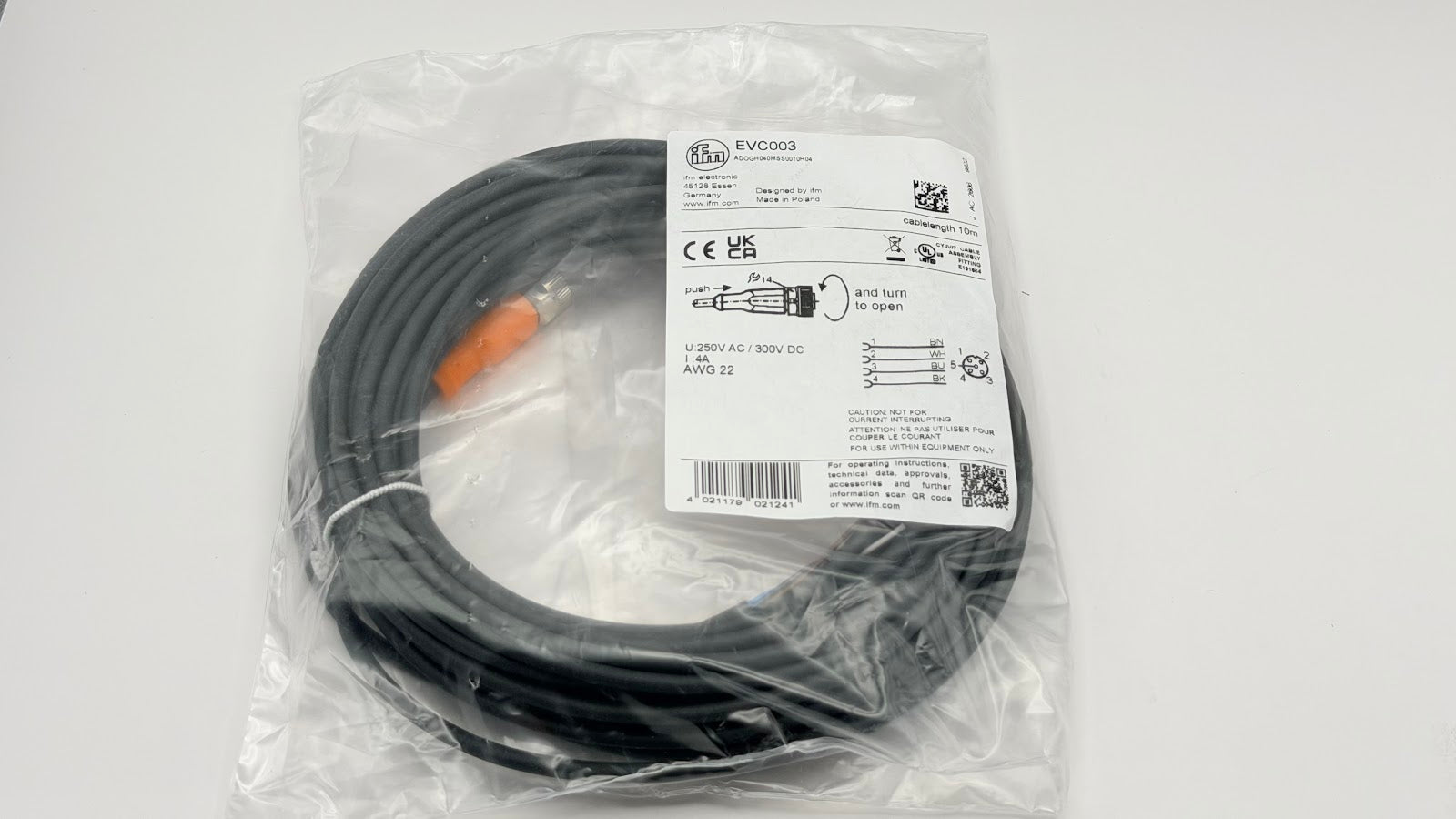

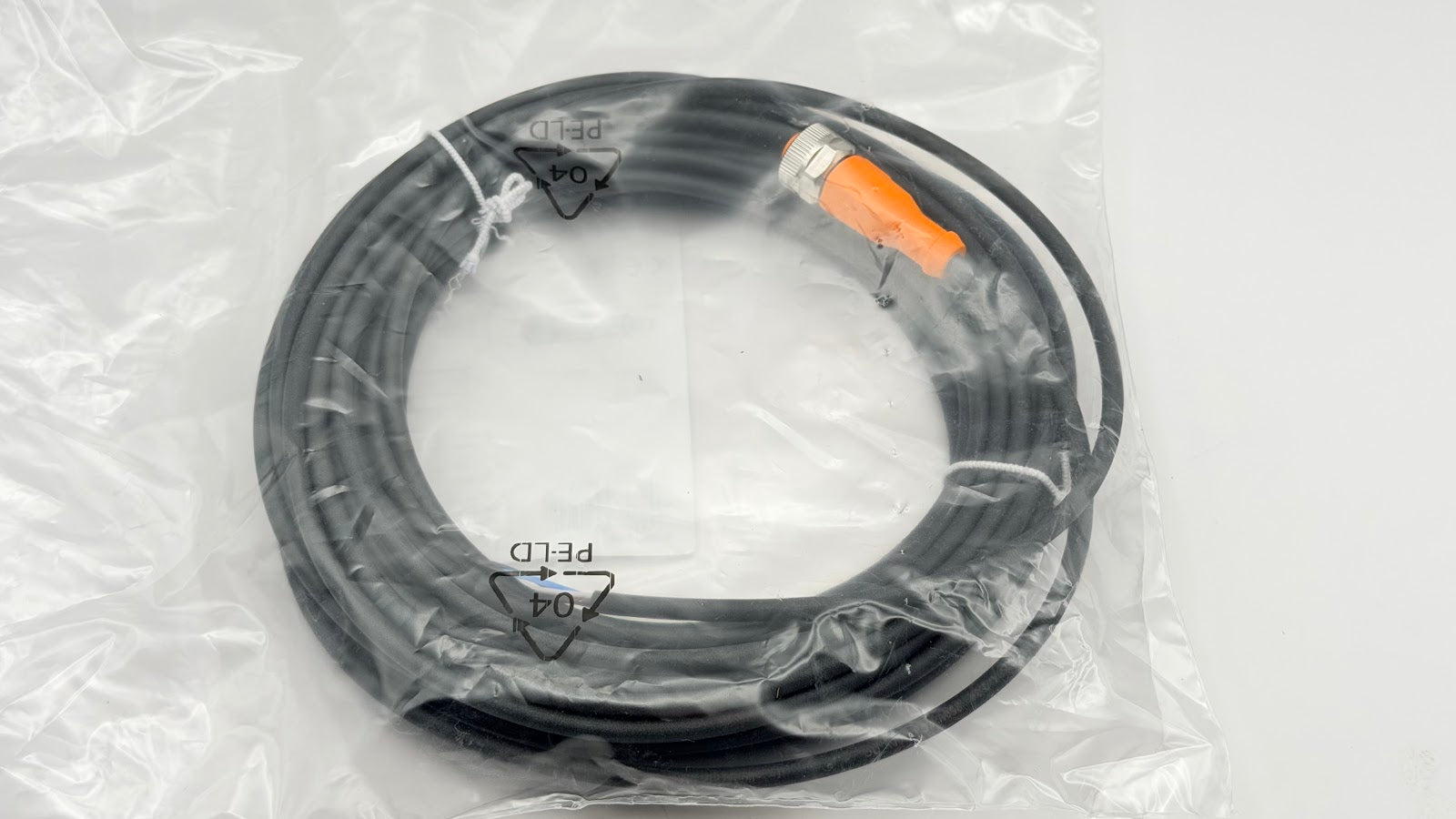

The IFM EVC003 M12 female cordset provides a 10 m straight connection between sensors/actuators and controllers. The halogen-free PUR cable resists oils and coolants and is rated for continuous drag-chain movement, suiting machine tools, conveyors and packaging lines. The gold-plated M12 socket seals to IP69K for reliable connections in harsh, washdown areas.
What are the cable length and construction of the IFM EVC003?
The IFM EVC003 has a 10 m halogen-free PUR cable, black, Ø 4.3 mm, with 4 x 0.34 mm2 cores (42 x Ø 0.1 mm stranding).
What connector does the EVC003 use?
The IFM EVC003 terminates in one M12 A-coded straight socket (female) with 4 gold-plated contacts.
What are the electrical ratings of the EVC003?
The IFM EVC003 is rated for < 250 V AC / < 300 V DC operating voltage and a max. current load of 4 A (with a 0.8 derating factor per DIN EN 60512-5-2).
What IP rating and temperature range does the EVC003 have?
The IFM EVC003 carries IP 65, IP 67, IP 68 and IP 69K protection and operates from -25...90 degrees C (storage -25...55 degrees C).
What are the wire colors of the EVC003?
The IFM EVC003 uses BK (black), BN (brown), BU (blue) and WH (white) wire colors.
Is the EVC003 suitable for drag-chain / moving applications?
Yes. The IFM EVC003 is drag-chain suitable with a minimum bending radius of 10x the cable diameter, max. travel speed 3.3 m/s, > 5 million bending cycles and +/-180 degrees/m torsional strain.
