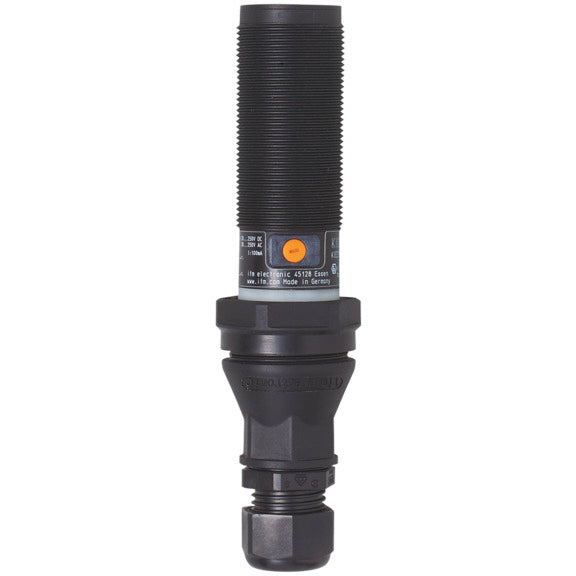

IFM KI503A - Capacitive Sensor, M30 ATEX, 15 mm Adjustable

Q: What is the sensing range of the IFM KI503A and is it adjustable?

The KI503A has a sensing range of 15 mm, which is adjustable, with a real sensing range Sr of 15 mm +/- 10 %.

Q: What measuring principle and mounting does the KI503A use?

It is a capacitive sensor that is non-flush mountable.

Q: What ATEX rating does the KI503A carry?

It is ATEX marked II 3D Ex tc IIIC T90 C Dc, per approvals BVS 20 ATEX E 058 X and IECEx BVS 20.0061X.

Q: What output does the KI503A provide?

It has a PNP output with complementary function, rated 200 mA permanent current, with a maximum voltage drop of 2.5 V DC and a maximum leakage current of 0.1 mA.

Q: What is the switching frequency of the KI503A?

The switching frequency is 10 Hz.

Q: What is the operating voltage and current consumption of the KI503A?

It operates on 10 to 30 V DC and consumes less than 20 mA.

Q: What is the housing material, IP rating and temperature range of the KI503A?

The housing is PBT and PA with an M30 x 1.5 thread, rated IP 65 and IP 67, with an ambient temperature range of -20 to 60 C.

Q: How is the KI503A connected and protected?

It connects via terminals accepting 0.34 to 1.5 mm2 conductors through an M20 x 1.5 cable gland (cable sheath 5 to 9 mm dia), and is short-circuit proof with pulsed protection.

SKUKI503ABrandIFM

AED 655.69

~~AED 728.55~~ AED 655.69

Sale Sold out

Shipping calculated at checkout.

Only 10 left

Quantity

IFM KI503A Capacitive Sensor — M30 ATEX Zone-22 capacitive sensor, adjustable 15 mm range, complementary NO/NC. PNP complementary NO/NC, 15 mm adjustable range, M30 x 1.5 (L 150 mm), ATEX II 3D, 10...30 V DC, IP65/67, -20...60 °C, terminal box.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: KI503A

KI503A Applications

The IFM KI503A is a capacitive sensor certified for use in hazardous (dust Ex) areas. It is suited for level and presence detection of bulk solids and liquids in silos, hoppers and process vessels within ATEX Zone-22 environments. Its ATEX II 3D marking allows direct connection to the plant control without a switching amplifier, the sensing range is set easily via potentiometer, and the complementary NO/NC output plus clearly visible LED indication simplify integration and diagnostics in dusty industrial applications.

KI503A Specifications

Brand	IFM	Product Type	Capacitive sensor (ATEX)
IFM Type Code	KIE4150NCPKG/3D	Electrical Design	PNP
Output Function	Complementary (NO/NC)	Sensing Range	15 mm, adjustable (potentiometer)
ATEX Marking	II 3D Ex tc IIIC T90°C Dc (BVS 20 ATEX E 058 X; IECEx)	Housing	M30 x 1.5, L = 150 mm, non-flush
Operating Voltage	10...30 V DC	Current Consumption	< 20 mA
Switching Frequency	10 Hz	Protection Rating	IP 65 / IP 67
Ambient Temperature	-20...60 °C	Housing Material	PBT / PA
Electrical Connection	Terminals 0.34...1.5 mm², cable gland M20 x 1.5	Weight	149 g

KI503A Datasheet & Manual

Download Datasheet & ManualIFM KI503A · PDF · Official IFM document

KI503A – Frequently Asked Questions (FAQ)

What is the sensing range of the IFM KI503A and is it adjustable?

The KI503A has a sensing range of 15 mm, which is adjustable, with a real sensing range Sr of 15 mm +/- 10 %.

What measuring principle and mounting does the KI503A use?

It is a capacitive sensor that is non-flush mountable.

What ATEX rating does the KI503A carry?

It is ATEX marked II 3D Ex tc IIIC T90 C Dc, per approvals BVS 20 ATEX E 058 X and IECEx BVS 20.0061X.

What output does the KI503A provide?

It has a PNP output with complementary function, rated 200 mA permanent current, with a maximum voltage drop of 2.5 V DC and a maximum leakage current of 0.1 mA.

What is the switching frequency of the KI503A?

The switching frequency is 10 Hz.

What is the operating voltage and current consumption of the KI503A?

It operates on 10 to 30 V DC and consumes less than 20 mA.

What is the housing material, IP rating and temperature range of the KI503A?

The housing is PBT and PA with an M30 x 1.5 thread, rated IP 65 and IP 67, with an ambient temperature range of -20 to 60 C.

How is the KI503A connected and protected?

It connects via terminals accepting 0.34 to 1.5 mm2 conductors through an M20 x 1.5 cable gland (cable sheath 5 to 9 mm dia), and is short-circuit proof with pulsed protection.
