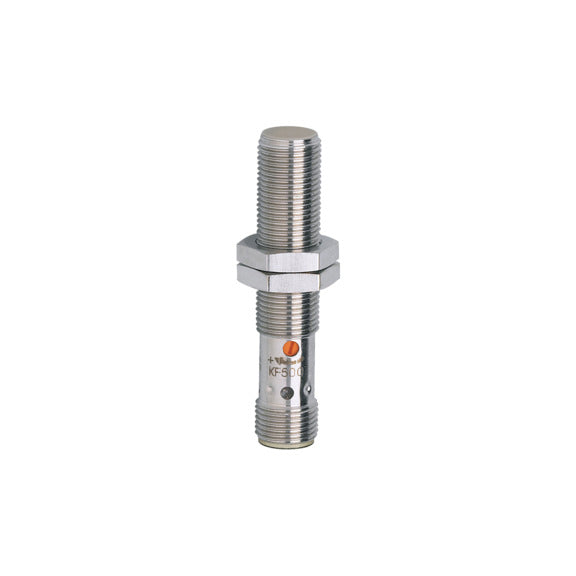

IFM KF5001 - Capacitive Sensor, M12 Stainless, 1...6 mm Adjustable

Q: What is the sensing range of the IFM KF5001 capacitive sensor?

The KF5001 has an adjustable sensing range of 1...6 mm, with a factory setting of 4 mm.

Q: What can the IFM KF5001 detect?

The KF5001 detects both dry bulk material and liquids, with correction factors such as water 1.0, glass 0.6, ceramics 0.5 and PVC 0.4.

Q: What output does the IFM KF5001 have?

The KF5001 has a single PNP normally open output, with a permanent current rating of 100 mA DC and a maximum voltage drop of 2.5 V DC.

Q: What is the switching frequency of the IFM KF5001?

The KF5001 has a switching frequency of 50 Hz DC.

Q: What operating voltage and current does the IFM KF5001 use?

The KF5001 runs on 10...36 V DC and consumes less than 12 mA.

Q: What is the housing of the IFM KF5001?

The KF5001 has a threaded M12 x 1 housing, 60 mm long, made of stainless steel (316L/1.4404) with a PEEK sensing face. It weighs 39.3 g.

Q: What is the IP rating and operating temperature of the IFM KF5001?

The KF5001 is rated IP 65 with an ambient temperature range of -25...70 degrees C.

Q: How is the IFM KF5001 adjusted and connected?

The KF5001 has 1 potentiometer for adjustment and a yellow LED for switching status, and connects via one M12 A-coded connector with 3 contacts. It includes short-circuit and reverse polarity protection.

SKUKF5001BrandIFM

AED 520.54

~~AED 578.38~~ AED 520.54

Sale Sold out

Shipping calculated at checkout.

Only 6 left

Quantity

IFM KF5001 Capacitive Sensor — compact M12 stainless capacitive sensor, adjustable 1...6 mm via potentiometer, high noise immunity. PNP normally open, 1...6 mm adjustable range, M12 x 1 (L 60 mm) stainless, 10...36 V DC, IP65, -25...70 °C, potentiometer set.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: KF5001

KF5001 Applications

The IFM KF5001 is a compact capacitive sensor used for position detection and level monitoring of dry bulk material and liquids. It is suited for detecting fill levels in small hoppers and pipes, part-present checks, and sensing non-metallic objects in factory automation. The robust stainless steel M12 housing suits harsh environments, the sensing range is set easily from 1...6 mm via potentiometer, high noise immunity gives stable switching, and a clearly visible LED indicates switching status.

KF5001 Specifications

Brand	IFM	Product Type	Capacitive sensor
IFM Type Code	KFA3040BBPKG/NI/US	Electrical Design	PNP
Output Function	Normally open	Sensing Range	1...6 mm, adjustable (factory 4 mm)
Housing	M12 x 1, L = 60 mm, flush mountable	Operating Voltage	10...36 V DC
Current Consumption	< 12 mA	Switching Frequency	50 Hz
Protection Rating	IP 65	Ambient Temperature	-25...70 °C
Media	Dry bulk material, liquids	Housing Material	Stainless steel 316L; PEEK face
Electrical Connection	M12 connector, A-coded, 3 contacts	Weight	39.3 g

KF5001 Datasheet & Manual

Download Datasheet & ManualIFM KF5001 · PDF · Official IFM document

KF5001 – Frequently Asked Questions (FAQ)

What is the sensing range of the IFM KF5001 capacitive sensor?

The KF5001 has an adjustable sensing range of 1...6 mm, with a factory setting of 4 mm.

What can the IFM KF5001 detect?

The KF5001 detects both dry bulk material and liquids, with correction factors such as water 1.0, glass 0.6, ceramics 0.5 and PVC 0.4.

What output does the IFM KF5001 have?

The KF5001 has a single PNP normally open output, with a permanent current rating of 100 mA DC and a maximum voltage drop of 2.5 V DC.

What is the switching frequency of the IFM KF5001?

The KF5001 has a switching frequency of 50 Hz DC.

What operating voltage and current does the IFM KF5001 use?

The KF5001 runs on 10...36 V DC and consumes less than 12 mA.

What is the housing of the IFM KF5001?

The KF5001 has a threaded M12 x 1 housing, 60 mm long, made of stainless steel (316L/1.4404) with a PEEK sensing face. It weighs 39.3 g.

What is the IP rating and operating temperature of the IFM KF5001?

The KF5001 is rated IP 65 with an ambient temperature range of -25...70 degrees C.

How is the IFM KF5001 adjusted and connected?

The KF5001 has 1 potentiometer for adjustment and a yellow LED for switching status, and connects via one M12 A-coded connector with 3 contacts. It includes short-circuit and reverse polarity protection.
