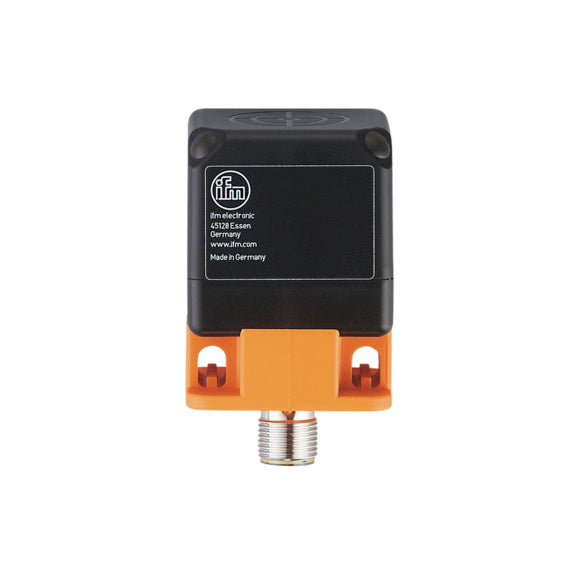

IFM IM5115 - Inductive Sensor, 20 mm Range, PNP NO

SKUIM5115BrandIFM

AED 270.04

~~AED 300.04~~ AED 270.04

Sale Sold out

Shipping calculated at checkout.

Quantity

IFM IM5115 Inductive Sensor — block sensor 40x40, 20 mm range, PNP NO, five sensing-face positions. inductive proximity sensor, 40x40 mm block, 20 mm range, PNP normally open, five selectable sensing-face positions, 10...36 V DC, IP67.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: IM5115

Also known as: IFM IM5115 proximity sensor / proximity switch.

IM5115 Applications

The IFM IM5115 inductive sensor offers a long 20 mm range in a rugged 40x40 block with five sensing-face positions, suiting long-range position detection in conveying and handling systems.

IM5115 Specifications

Brand	IFM	Product Type	Inductive sensor
Product type code	IMC3020BBPKG/US-100-DPS	Housing	40 x 40 x 54 mm block
Sensing range	20 mm	Output	PNP normally open
Operating voltage	10...36 V DC	Protection	IP 67
Weight	146.5 g

IM5115 Datasheet & Manual

Download Datasheet & ManualIFM IM5115 · PDF · Official IFM document

IM5115 – Frequently Asked Questions (FAQ)

What is the sensing range of the IFM IM5115 inductive sensor?

The IM5115 has a rated sensing range of 20 mm with a usable operating distance of 0...16.2 mm.

What output type does the IM5115 have?

The IM5115 is a PNP normally open (NO) sensor with a single output rated for 200 mA, a switching frequency of 100 Hz, and a maximum voltage drop of 2.5 V DC.

What are the correction factors for the IM5115?

The IM5115 has correction factors of steel 1, stainless steel 0.7, brass 0.4, aluminium 0.4 and copper 0.3.

What voltage does the IM5115 operate on?

The IM5115 operates on 10...36 V DC with a current consumption of less than 20 mA, and it includes reverse polarity and short-circuit (pulsed) protection.

What is the housing of the IM5115 made of?

The IM5115 has a rectangular, flush-mountable PA housing measuring 40 x 40 x 54 mm with a black PA sensing face.

What is the IP rating and temperature range of the IM5115?

The IM5115 is rated IP 67 and operates over an ambient temperature range of -25...70 C.

How does the IM5115 connect electrically?

The IM5115 connects via a single M12 A-coded 4-pin connector with gold-plated, rotatable contacts.
