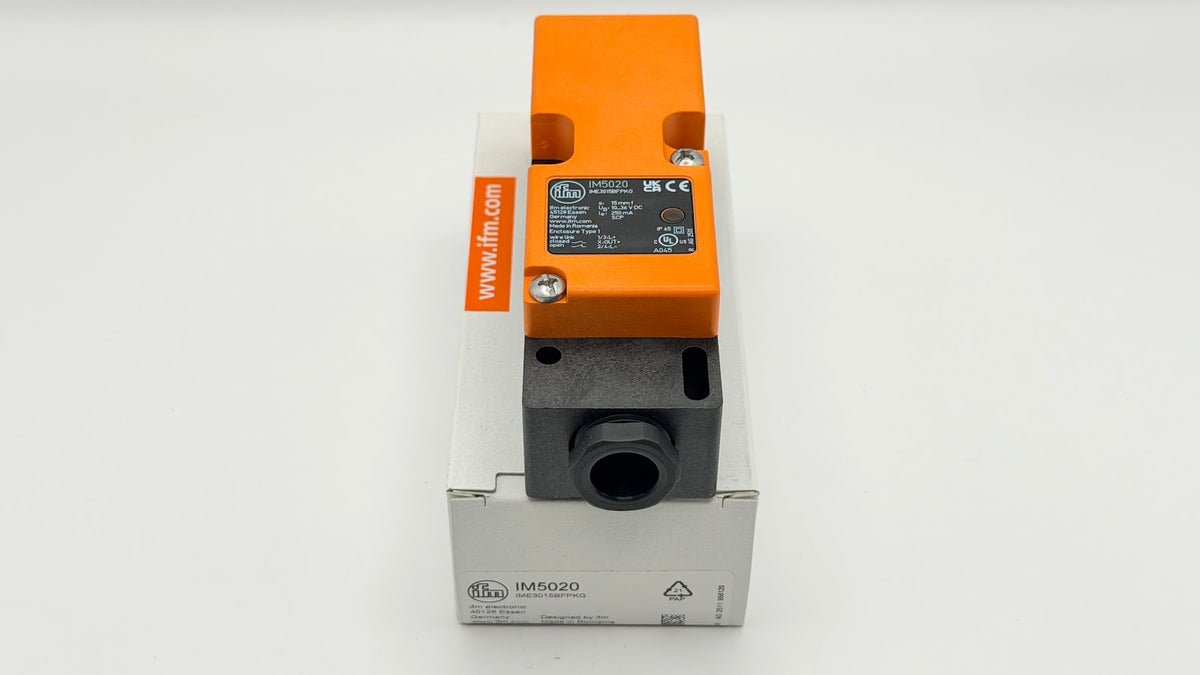

IFM IM5020 - Inductive Sensor, 15 mm Range, PNP NO/NC

SKUIM5020BrandIFM

AED 298.00

Sale Sold out

Shipping calculated at checkout.

20 in stock

Quantity

IFM IM5020 Inductive Sensor — block sensor 40x40x120, 15 mm range, PNP NO/NC, terminal connection. inductive proximity sensor, 40x40x120 mm block, 15 mm range, PNP normally open/closed selectable, terminal connection, 10...36 V DC, IP65.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: IM5020

Also known as: IFM IM5020 proximity sensor / proximity switch.

IM5020 Applications

The IFM IM5020 inductive sensor provides a 15 mm range in a large block housing with terminal wiring and selectable NO/NC output, for long-range position sensing in conveying and heavy machinery.

IM5020 Specifications

Brand	IFM	Product Type	Inductive sensor
Product type code	IME3015BFPKG	Housing	40 x 40 x 120 mm block
Sensing range	15 mm	Output	PNP NO/NC (selectable)
Operating voltage	10...36 V DC	Protection	IP 65
Weight	191 g

IM5020 Datasheet & Manual

Download Datasheet & ManualIFM IM5020 · PDF · Official IFM document

IM5020 – Frequently Asked Questions (FAQ)

What is the sensing range of the IFM IM5020 inductive sensor?

The IM5020 has a rated sensing range of 15 mm with a usable operating distance of 0...12.1 mm.

What output function does the IM5020 provide?

The IM5020 is a PNP sensor with a selectable normally open / normally closed output rated for 250 mA permanent current and a switching frequency of 250 Hz.

What are the correction factors for the IM5020?

The IM5020 has correction factors of steel 1, stainless steel 0.7, brass 0.4, aluminium 0.3 and copper 0.2.

What operating voltage does the IM5020 use?

The IM5020 operates on 10...36 V DC with a current consumption of 15 mA at 24 V, and includes reverse polarity and pulsed short-circuit protection.

What is the housing of the IM5020 like?

The IM5020 has a rectangular, flush-mountable PPE housing measuring 40 x 40 x 120 mm.

What is the IP rating and temperature range of the IM5020?

The IM5020 is rated IP 65 and operates over an ambient temperature range of -25...80 C.

How does the IM5020 connect?

The IM5020 uses a cable-gland terminal connection with an M20 x 1.5 gland, terminals up to 2.5 mm2, and a cable sheath of 7...13 mm; a yellow LED indicates switching status.
