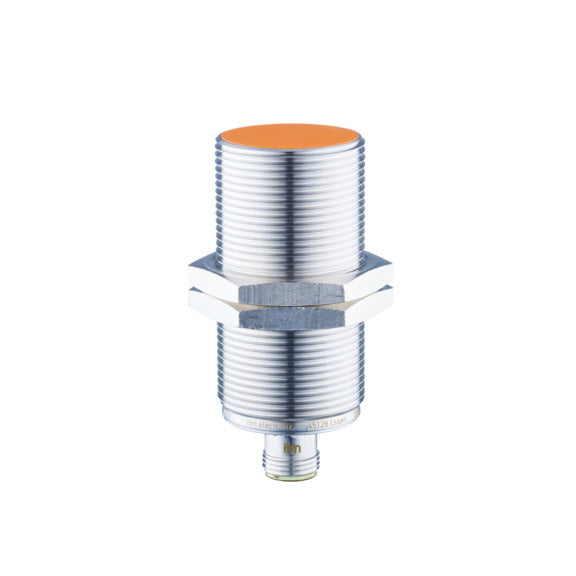

IFM IIS206 - Inductive Sensor, M30 Flush, 15 mm Range

Q: What is the sensing range of the IFM IIS206?

The IIS206 has a sensing range of 15 mm, with a real sensing range of 15 mm +/- 10 %.

Q: Is the IFM IIS206 flush mountable and what housing size is it?

Yes, the IIS206 is flush mountable in an M30 x 1.5 threaded housing with a length of 70 mm.

Q: What is the output type of the IFM IIS206?

The IIS206 has a PNP/NPN electrical design with a normally open output function and a maximum voltage drop of 2.8 V DC.

Q: What is the switching frequency and current rating of the IFM IIS206?

The IIS206 has a switching frequency of 100 Hz and a permanent current rating of 100 mA DC.

Q: What is the operating voltage and protection of the IFM IIS206?

The IIS206 operates on 10...30 V DC with a current consumption of < 15 mA, and features reverse polarity protection, pulsed short-circuit protection and overload protection.

Q: What temperature range and IP rating does the IFM IIS206 have?

The IIS206 operates from -25...70 C and is rated IP 67.

Q: What housing material and connection does the IFM IIS206 use?

The housing and lock nuts are brass with a white bronze coating, the sensing face is PBT orange; connection is via 1 x M12 A-coded connector with 3 gold-plated contacts.

Q: What indicators does the IFM IIS206 provide?

The IIS206 has a 4 x 90 deg yellow LED switching status display and a 1 x red LED setting aid.

SKUIIS206BrandIFM

AED 332.95

~~AED 369.93~~ AED 332.95

Sale Sold out

Shipping calculated at checkout.

Quantity

IFM IIS206 Inductive Sensor — M30 flush, 15 mm long range, PNP/NPN with optical setting aid, 2-/3-wire. PNP/NPN normally open, 15 mm sensing range, M30 x 1.5 threaded (L 70 mm), 10...30 V DC, IP67, -25...70 °C, 2-/3-wire operation.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: IIS206

Also known as: IFM IIS206 proximity sensor / proximity switch.

IIS206 Applications

The IFM IIS206 is used for position and presence detection in general factory automation where a long sensing range is needed. It is suited for end-position sensing on large actuators, part-present checks on conveyors, and machine-guard interlocks. It can be wired as a three-wire or two-wire device for flexible integration, and its optical setting aid plus clearly visible switching indication simplify installation and commissioning in harsh industrial environments.

IIS206 Specifications

Brand	IFM	Product Type	Inductive sensor
IFM Type Code	IIKC015BASKG/2LED/US-104	Electrical Design	PNP/NPN
Output Function	Normally open	Sensing Range	15 mm (Sr 15 mm ±10%)
Housing	M30 x 1.5, L = 70 mm, threaded, flush mountable	Operating Voltage	10...30 V DC
Current Consumption	< 15 mA	Switching Frequency	100 Hz
Operation	2-wire / 3-wire; optical setting aid	Protection Rating	IP 67
Ambient Temperature	-25...70 °C	Housing Material	Brass, white bronze coated
Electrical Connection	M12 connector, A-coded, 3 gold-plated contacts	Weight	125.7 g
Approvals	cULus (UL E174191); EMC EN 55011 Class B

IIS206 Datasheet & Manual

Download Datasheet & ManualIFM IIS206 · PDF · Official IFM document

IIS206 – Frequently Asked Questions (FAQ)

What is the sensing range of the IFM IIS206?

The IIS206 has a sensing range of 15 mm, with a real sensing range of 15 mm +/- 10 %.

Is the IFM IIS206 flush mountable and what housing size is it?

Yes, the IIS206 is flush mountable in an M30 x 1.5 threaded housing with a length of 70 mm.

What is the output type of the IFM IIS206?

The IIS206 has a PNP/NPN electrical design with a normally open output function and a maximum voltage drop of 2.8 V DC.

What is the switching frequency and current rating of the IFM IIS206?

The IIS206 has a switching frequency of 100 Hz and a permanent current rating of 100 mA DC.

What is the operating voltage and protection of the IFM IIS206?

The IIS206 operates on 10...30 V DC with a current consumption of < 15 mA, and features reverse polarity protection, pulsed short-circuit protection and overload protection.

What temperature range and IP rating does the IFM IIS206 have?

The IIS206 operates from -25...70 C and is rated IP 67.

What housing material and connection does the IFM IIS206 use?

The housing and lock nuts are brass with a white bronze coating, the sensing face is PBT orange; connection is via 1 x M12 A-coded connector with 3 gold-plated contacts.

What indicators does the IFM IIS206 provide?

The IIS206 has a 4 x 90 deg yellow LED switching status display and a 1 x red LED setting aid.
