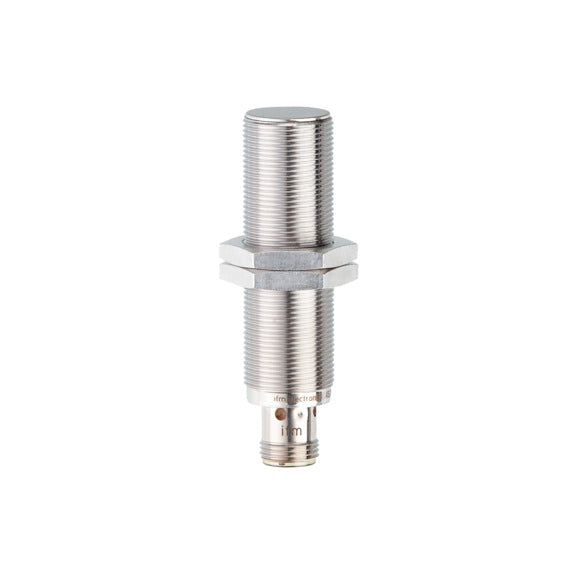

IFM IGT247 - Inductive Full-Metal Sensor, Full-Metal M18, 5 mm Range

Q: What is the sensing range of the IFM IGT247 full-metal sensor?

The IGT247 has a sensing range of 5 mm, with an operating distance of 0...4.05 mm, and is flush mountable.

Q: What makes the IFM IGT247 a full-metal sensor?

The IGT247 has a stainless steel 316L/1.4404 housing with a full-metal sensing face, designed for hygienic areas and regular cleaning processes.

Q: What output does the IFM IGT247 provide?

The IGT247 has 1 PNP normally open output (pin 4 = DO), with a permanent current rating of 100 mA DC and a maximum voltage drop of 2.5 V DC.

Q: What is the switching frequency of the IFM IGT247?

The IGT247 has a switching frequency of 100 Hz DC.

Q: What operating voltage and current does the IFM IGT247 use?

The IGT247 runs on 10...30 V DC and consumes less than 20 mA.

Q: What is the IP rating and operating temperature of the IFM IGT247?

The IGT247 is rated to IP 68 and IP 69K, with an ambient temperature range of 0...100 degrees C.

Q: What are the housing dimensions of the IFM IGT247?

The IGT247 has an M18 x 1 housing that is 70 mm long.

Q: How is the IFM IGT247 connected and what is its display?

The IGT247 uses one M12 A-coded connector with 3 gold-plated contacts, and has a 4 x 90 degree yellow LED for switching status. It includes reverse polarity, short-circuit (pulsed) and overload protection.

SKUIGT247BrandIFM

AED 310.80

~~AED 345.33~~ AED 310.80

Sale Sold out

Shipping calculated at checkout.

Quantity

IFM IGT247 Inductive Full-Metal Sensor — M18 full-metal stainless sensor for food industry, 5 mm range, IP69K, medium to 100 °C. PNP normally open, 5 mm sensing range, M18 x 1 (L 70 mm) full-metal 316L, 10...30 V DC, IP69K, 0...100 °C, 100 bar face rating.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: IGT247

Also known as: IFM IGT247 inductive sensor / proximity sensor / proximity switch.

IGT247 Applications

The IFM IGT247 is a full-metal inductive sensor built for the food industry and hygienic areas with regular cleaning. It is suited for position and presence detection on filling, packaging and processing machinery exposed to high-pressure washdown and temperature cycling. The one-piece stainless steel 316L housing and sensing face resist aggressive cleaning agents and temperature shock, withstand up to 100 bar on the face and IP69K ingress, and operate across a wide 0...100 °C range with clearly visible LED switching indication.

IGT247 Specifications

Brand	IFM	Product Type	Inductive full-metal sensor (hygienic)
IFM Type Code	IGK3005-BPKG/AM/US-104	Electrical Design	PNP
Output Function	Normally open	Sensing Range	5 mm
Housing	M18 x 1, L = 70 mm, full-metal, flush mountable	Operating Voltage	10...30 V DC
Current Consumption	< 20 mA	Switching Frequency	100 Hz
Pressure Rating (face)	100 bar	Protection Rating	IP 68 / IP 69K
Ambient Temperature	0...100 °C	Housing Material	Stainless steel (316L / 1.4404)
Electrical Connection	M12 connector, A-coded, 3 gold-plated contacts	Weight	55 g
Approvals	cULus (UL E174191); EMC EN 55011 Class B

IGT247 Datasheet & Manual

Download Datasheet & ManualIFM IGT247 · PDF · Official IFM document

IGT247 – Frequently Asked Questions (FAQ)

What is the sensing range of the IFM IGT247 full-metal sensor?

The IGT247 has a sensing range of 5 mm, with an operating distance of 0...4.05 mm, and is flush mountable.

What makes the IFM IGT247 a full-metal sensor?

The IGT247 has a stainless steel 316L/1.4404 housing with a full-metal sensing face, designed for hygienic areas and regular cleaning processes.

What output does the IFM IGT247 provide?

The IGT247 has 1 PNP normally open output (pin 4 = DO), with a permanent current rating of 100 mA DC and a maximum voltage drop of 2.5 V DC.

What is the switching frequency of the IFM IGT247?

The IGT247 has a switching frequency of 100 Hz DC.

What operating voltage and current does the IFM IGT247 use?

The IGT247 runs on 10...30 V DC and consumes less than 20 mA.

What is the IP rating and operating temperature of the IFM IGT247?

The IGT247 is rated to IP 68 and IP 69K, with an ambient temperature range of 0...100 degrees C.

What are the housing dimensions of the IFM IGT247?

The IGT247 has an M18 x 1 housing that is 70 mm long.

How is the IFM IGT247 connected and what is its display?

The IGT247 uses one M12 A-coded connector with 3 gold-plated contacts, and has a 4 x 90 degree yellow LED for switching status. It includes reverse polarity, short-circuit (pulsed) and overload protection.
