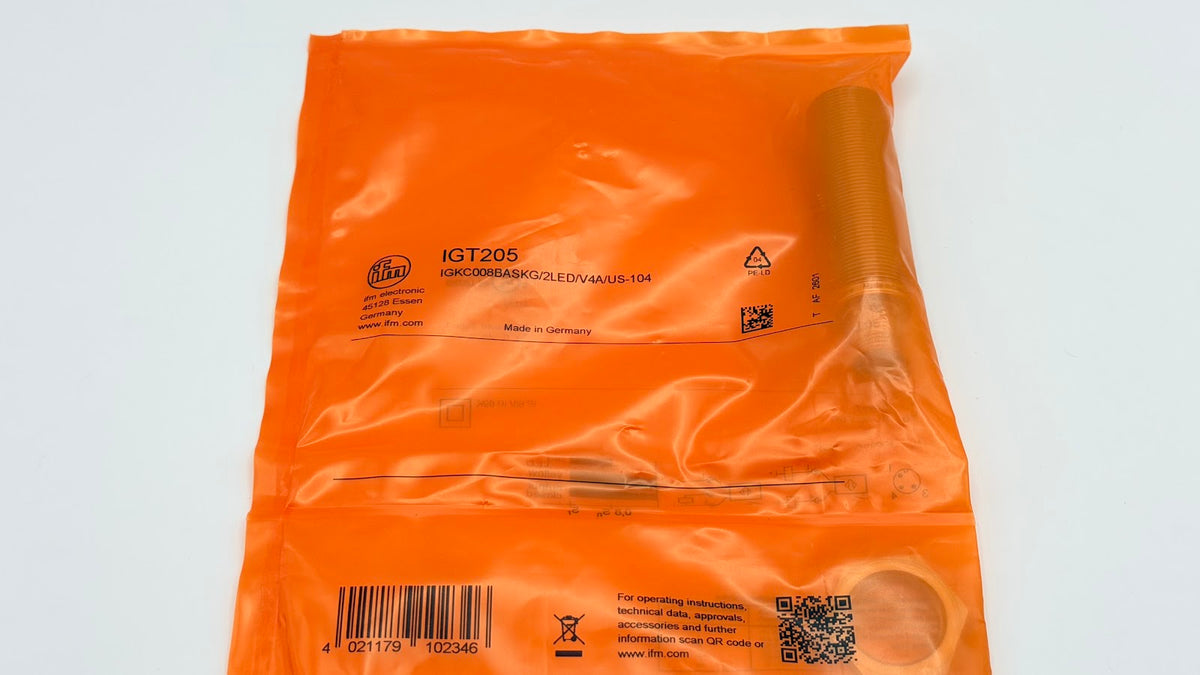

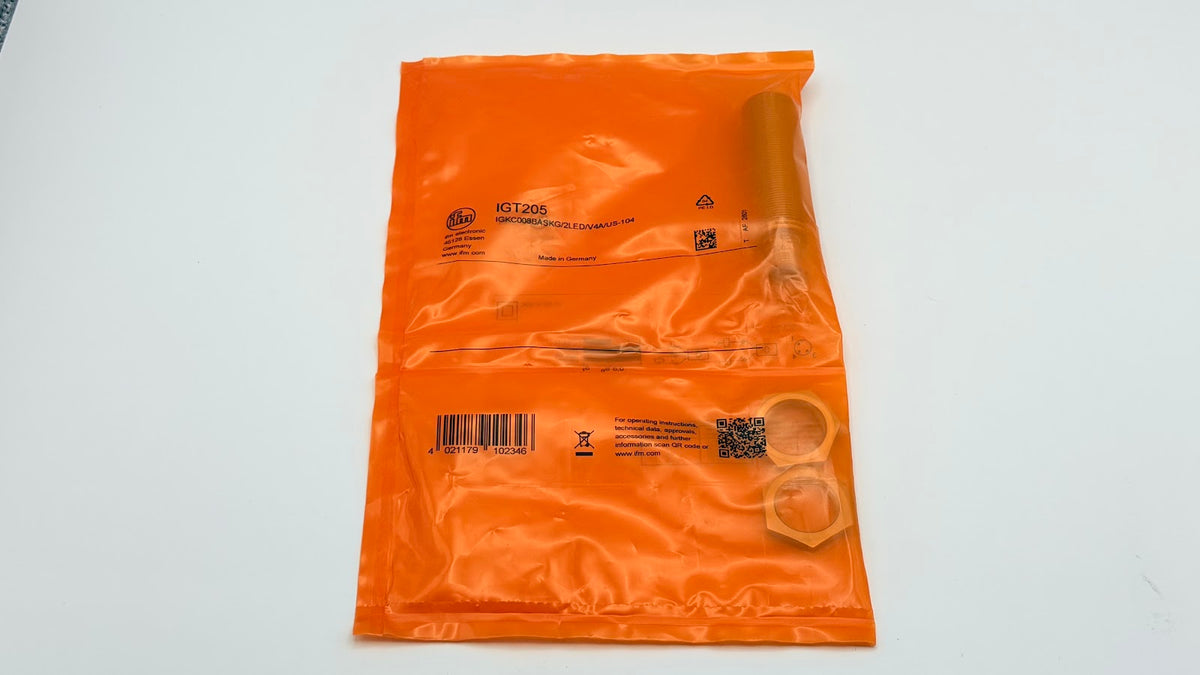

IFM IGT205 - Inductive Sensor, Hygienic M18, 8 mm Range

SKUIGT205BrandIFM

AED 238.00

Sale Sold out

Shipping calculated at checkout.

Only 3 left

Quantity

IFM IGT205 Inductive Sensor — hygienic 316L stainless M18, 8 mm range, 2/3-wire, PEEK face with optical setting aid, IP69K. inductive proximity sensor for hygienic areas, 316L stainless M18 x 1 housing, 8 mm extended range, PNP/NPN 2 or 3-wire, PEEK sensing face, optical setting aid, resistant to high-pressure cleaning, IP68/IP69K.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: IGT205

Also known as: IFM IGT205 proximity sensor / proximity switch.

IGT205 Applications

The IFM IGT205 inductive sensor is built for the food and beverage industry, with a 316L stainless housing and PEEK face that withstand high-pressure washdown and aggressive cleaning agents. Temperature-shock resistant and flush mountable, it provides reliable non-contact metal detection on hygienic machinery, and its optical setting aid speeds up alignment during installation.

IGT205 Specifications

Brand	IFM	Product Type	Inductive sensor (hygienic)
Product type code	IGKC008BASKG/2LED/V4A/US-104	Housing / thread	M18 x 1, 316L stainless
Sensing range	8 mm (extended)	Electrical design	PNP/NPN (2 or 3-wire)
Output function	Normally open	Operating voltage	10...30 V DC
Sensing face	PEEK	Ambient temperature	0...100 C
Protection	IP 68; IP 69K	Weight	54.8 g
Electrical connection	M12 connector, A-coded, 3 contacts

IGT205 Datasheet & Manual

Download Datasheet & ManualIFM IGT205 · PDF · Official IFM document

IGT205 – Frequently Asked Questions (FAQ)

What is the sensing range of the IFM IGT205 inductive sensor?

The IGT205 has a rated sensing range of 8 mm, with a real sensing range Sr of 8 mm +/-10 percent, and it is flush mountable.

Is the IGT205 flush mountable and what is its housing thread size?

Yes, the IGT205 is flush mountable. It has a threaded M18 x 1 housing with an overall length L = 70 mm.

What output type and switching capacity does the IGT205 provide?

The IGT205 has a PNP/NPN electrical design with a normally open output function, a permanent DC switching output current rating of 100 mA, and a switching frequency of 400 Hz.

What operating voltage and current consumption does the IGT205 require?

The IGT205 operates on 10...30 V DC with a current consumption of less than 15 mA, and it includes both reverse polarity and short-circuit protection.

What is the IGT205 housing and sensing face made of?

The IGT205 housing is stainless steel (316L/1.4404) and the sensing face is PEEK natural, suiting it to hygienic applications.

What protection rating and temperature range does the IGT205 have?

The IGT205 is rated IP 68 and IP 69K, with an ambient temperature range of 0...100 degrees C.

How is the IGT205 electrically connected?

The IGT205 uses a single M12 connector, A-coded, with 3 gold-plated contacts.

What are the target correction factors for the IGT205?

For the IGT205, correction factors are steel 1, stainless steel 0.7, brass 0.5, aluminium 0.4, and copper 0.3.
