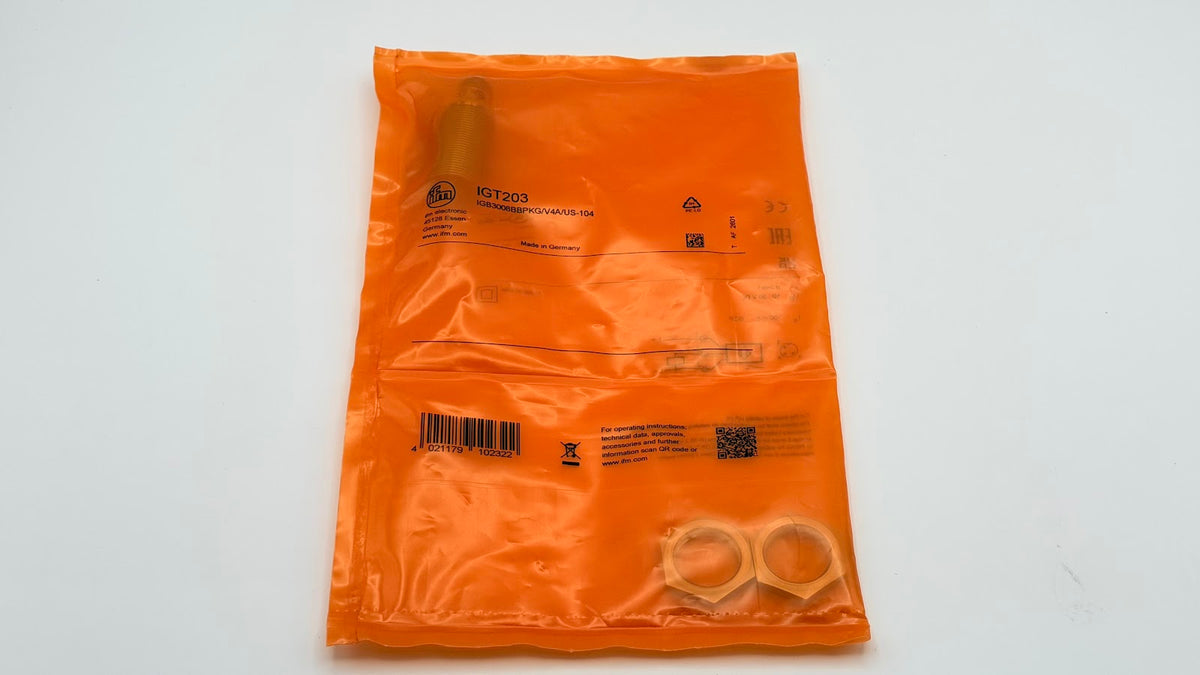

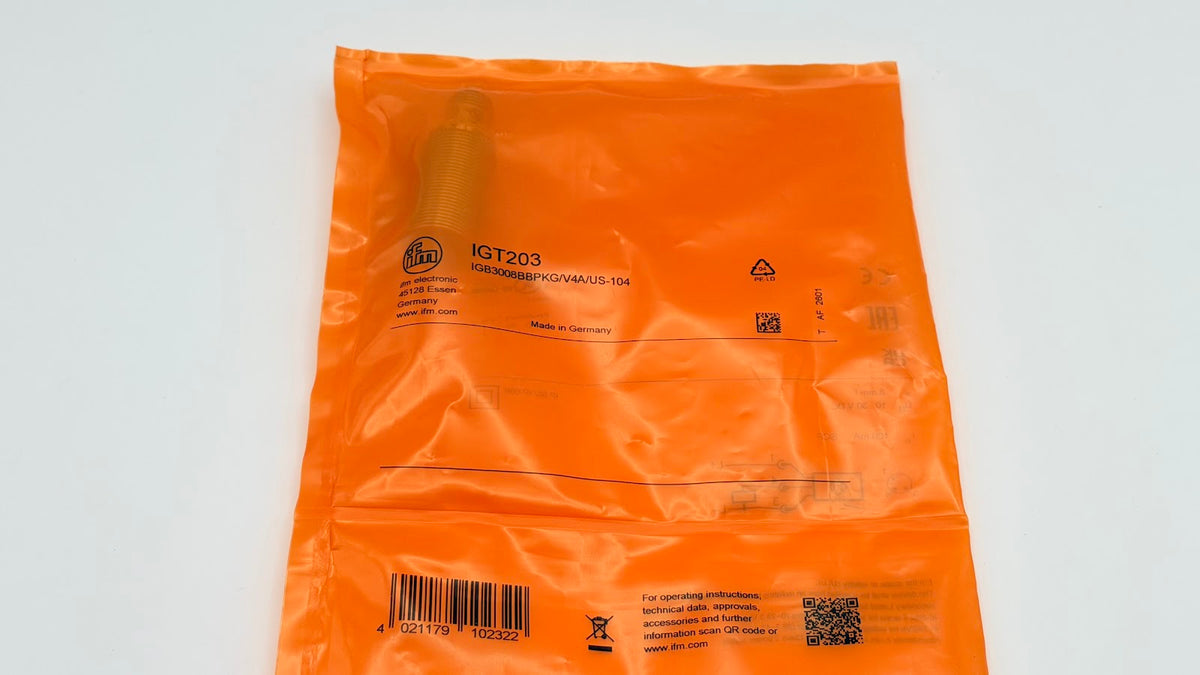

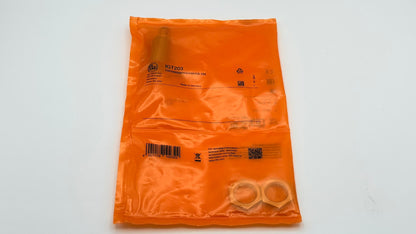

IFM IGT203 - Inductive Sensor, Hygienic M18, 8 mm Range

Q: What materials make the IFM IGT203 suitable for hygienic use?

The IFM IGT203 has a stainless steel (316L/1.4404) housing with a PEEK natural sensing face and PEI LED window, designed for use in hygienic areas with regular cleaning processes.

Q: What is the IP rating and temperature range of the IFM IGT203?

The IFM IGT203 is rated IP 68 and IP 69K with an ambient temperature range of 0...100 deg C.

Q: What protections does the IFM IGT203 have?

The IFM IGT203 includes reverse polarity protection, pulsed short-circuit protection and overload protection.

Q: What connection and indicators does the IFM IGT203 have?

The IFM IGT203 has an M12 A-coded connector with 3 gold-plated contacts and 4 x yellow LEDs for switching status.

SKUIGT203BrandIFM

AED 209.00

Sale Sold out

Shipping calculated at checkout.

Only 5 left

Quantity

IFM IGT203 Inductive Sensor — hygienic 316L stainless M18, 8 mm range, PNP NO, PEEK face, IP69K. inductive proximity sensor for hygienic areas, 316L stainless M18 x 1 housing, 8 mm range, PNP normally open, PEEK face, high-pressure-clean resistant, IP68/IP69K.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: IGT203

Also known as: IFM IGT203 proximity sensor / proximity switch.

IGT203 Applications

The IFM IGT203 inductive sensor is built for food-industry washdown, with a 316L stainless housing and PEEK face resistant to aggressive cleaning and temperature shock, for reliable non-contact metal detection.

IGT203 Specifications

Brand	IFM	Product Type	Inductive sensor (hygienic)
Product type code	IGB3008BBPKG/V4A/US-104	Housing / thread	M18 x 1, 316L stainless
Sensing range	8 mm	Output	PNP normally open
Operating voltage	10...30 V DC	Ambient temperature	0...100 C
Protection	IP 68; IP 69K	Weight	44.7 g

IGT203 Datasheet & Manual

Download Datasheet & ManualIFM IGT203 · PDF · Official IFM document

IGT203 – Frequently Asked Questions (FAQ)

What is the sensing range of the IFM IGT203?

The IFM IGT203 has a sensing range of 8 mm and is flush mountable.

What is the output function of the IFM IGT203?

The IFM IGT203 has a normally open output with a permanent current rating of 100 mA DC and a maximum voltage drop of 2.5 V DC.

What is the switching frequency of the IFM IGT203?

The IFM IGT203 has a switching frequency of 600 Hz.

What supply voltage and current does the IFM IGT203 need?

The IFM IGT203 operates on 10...30 V DC with a current consumption of < 10 mA.

What materials make the IFM IGT203 suitable for hygienic use?

The IFM IGT203 has a stainless steel (316L/1.4404) housing with a PEEK natural sensing face and PEI LED window, designed for use in hygienic areas with regular cleaning processes.

What is the IP rating and temperature range of the IFM IGT203?

The IFM IGT203 is rated IP 68 and IP 69K with an ambient temperature range of 0...100 deg C.

What protections does the IFM IGT203 have?

The IFM IGT203 includes reverse polarity protection, pulsed short-circuit protection and overload protection.

What connection and indicators does the IFM IGT203 have?

The IFM IGT203 has an M12 A-coded connector with 3 gold-plated contacts and 4 x yellow LEDs for switching status.
