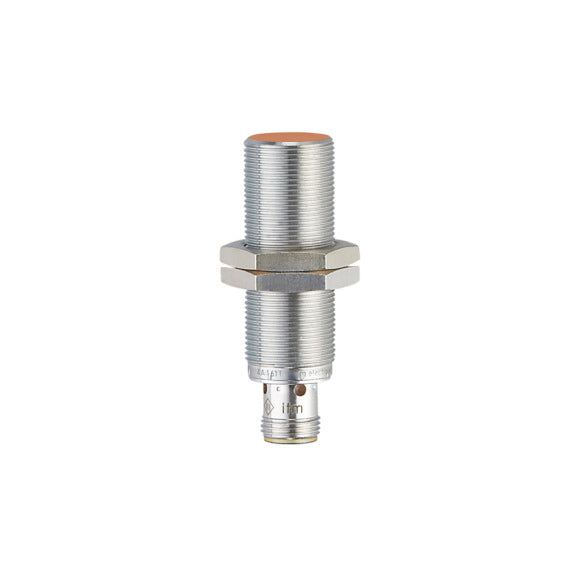

IFM IGS232 - Inductive Sensor, M18 Flush, 8 mm Range

Q: What is the sensing range of the IFM IGS232?

The IGS232 has an increased sensing range of 8 mm, with a real sensing range of 8 mm +/- 10 %.

Q: Is the IFM IGS232 flush mountable and what housing size is it?

Yes, the IGS232 is flush mountable in an M18 x 1 threaded housing with a length of 60 mm.

Q: What is the output type of the IFM IGS232?

The IGS232 is a PNP sensor with a normally open output function and a maximum voltage drop of 2.5 V DC.

Q: What is the switching frequency and permanent current rating of the IFM IGS232?

The IGS232 has a switching frequency of 400 Hz and a permanent current rating of 100 mA DC.

Q: What is the operating voltage and current consumption of the IFM IGS232?

The IGS232 operates on 10...30 V DC with a current consumption of < 10 mA, and includes short-circuit, reverse polarity and overload protection.

Q: What temperature range and IP rating does the IFM IGS232 have?

The IGS232 operates from -40...85 C and is rated IP 65, IP 66, IP 67, IP 68 and IP 69K.

Q: What housing material and electrical connection does the IFM IGS232 use?

The housing is brass with a white bronze coating and a PBT orange sensing face; connection is via 1 x M12 A-coded connector with 3 gold-plated contacts.

Q: What are the correction factors of the IFM IGS232 for different metals?

The correction factors are steel 1, stainless steel 0.7, brass 0.5, aluminium 0.4 and copper 0.3.

SKUIGS232BrandIFM

AED 253.95

~~AED 282.16~~ AED 253.95

Sale Sold out

Shipping calculated at checkout.

Quantity

IFM IGS232 Inductive Sensor — M18 flush, 8 mm extended range, IP69K, -40...85 °C wide temperature. PNP normally open, 8 mm sensing range, M18 x 1 threaded (L 60 mm), 10...30 V DC, IP65/66/67/68/69K, -40...85 °C, brass housing.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: IGS232

Also known as: IFM IGS232 proximity sensor / proximity switch.

IGS232 Applications

The IFM IGS232 is used in industrial, mobile, cooling and lubricating applications where a robust proximity switch is required. It is suited for position and presence detection on conveyors, indexing tables and mobile machinery. Its wide -40...85 °C operating range and IP69K rating allow reliable operation in harsh, washdown and outdoor environments, while the 8 mm increased sensing range and low tolerances give safe, dependable detection.

IGS232 Specifications

Brand	IFM	Product Type	Inductive sensor
IFM Type Code	IGK3008BBPKG/US-104	Electrical Design	PNP
Output Function	Normally open	Sensing Range	8 mm (Sr 8 mm ±10%)
Housing	M18 x 1, L = 60 mm, threaded, flush mountable	Operating Voltage	10...30 V DC
Current Consumption	< 10 mA	Switching Frequency	400 Hz
Protection Rating	IP 65 / 66 / 67 / 68 / 69K	Ambient Temperature	-40...85 °C
Housing Material	Brass, white bronze coated	Electrical Connection	M12 connector, A-coded, 3 gold-plated contacts
Weight	48.3 g	Approvals	cULus (UL E174191); EMC EN 55011 Class B

IGS232 Datasheet & Manual

Download Datasheet & ManualIFM IGS232 · PDF · Official IFM document

IGS232 – Frequently Asked Questions (FAQ)

What is the sensing range of the IFM IGS232?

The IGS232 has an increased sensing range of 8 mm, with a real sensing range of 8 mm +/- 10 %.

Is the IFM IGS232 flush mountable and what housing size is it?

Yes, the IGS232 is flush mountable in an M18 x 1 threaded housing with a length of 60 mm.

What is the output type of the IFM IGS232?

The IGS232 is a PNP sensor with a normally open output function and a maximum voltage drop of 2.5 V DC.

What is the switching frequency and permanent current rating of the IFM IGS232?

The IGS232 has a switching frequency of 400 Hz and a permanent current rating of 100 mA DC.

What is the operating voltage and current consumption of the IFM IGS232?

The IGS232 operates on 10...30 V DC with a current consumption of < 10 mA, and includes short-circuit, reverse polarity and overload protection.

What temperature range and IP rating does the IFM IGS232 have?

The IGS232 operates from -40...85 C and is rated IP 65, IP 66, IP 67, IP 68 and IP 69K.

What housing material and electrical connection does the IFM IGS232 use?

The housing is brass with a white bronze coating and a PBT orange sensing face; connection is via 1 x M12 A-coded connector with 3 gold-plated contacts.

What are the correction factors of the IFM IGS232 for different metals?

The correction factors are steel 1, stainless steel 0.7, brass 0.5, aluminium 0.4 and copper 0.3.
