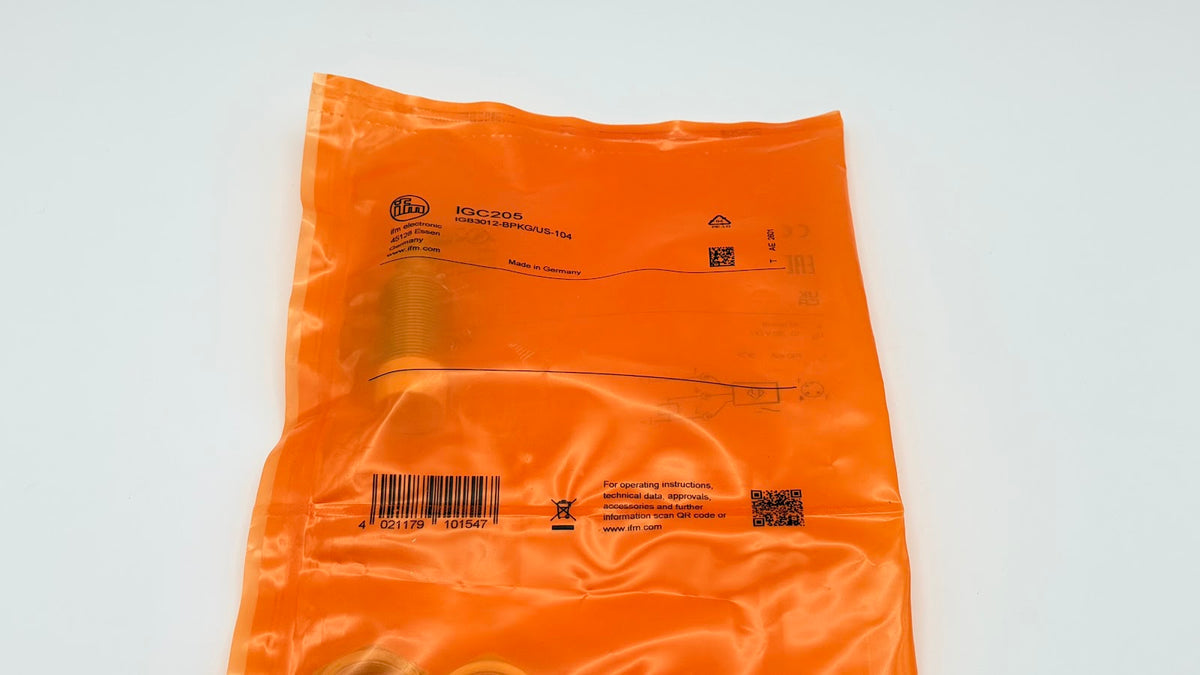

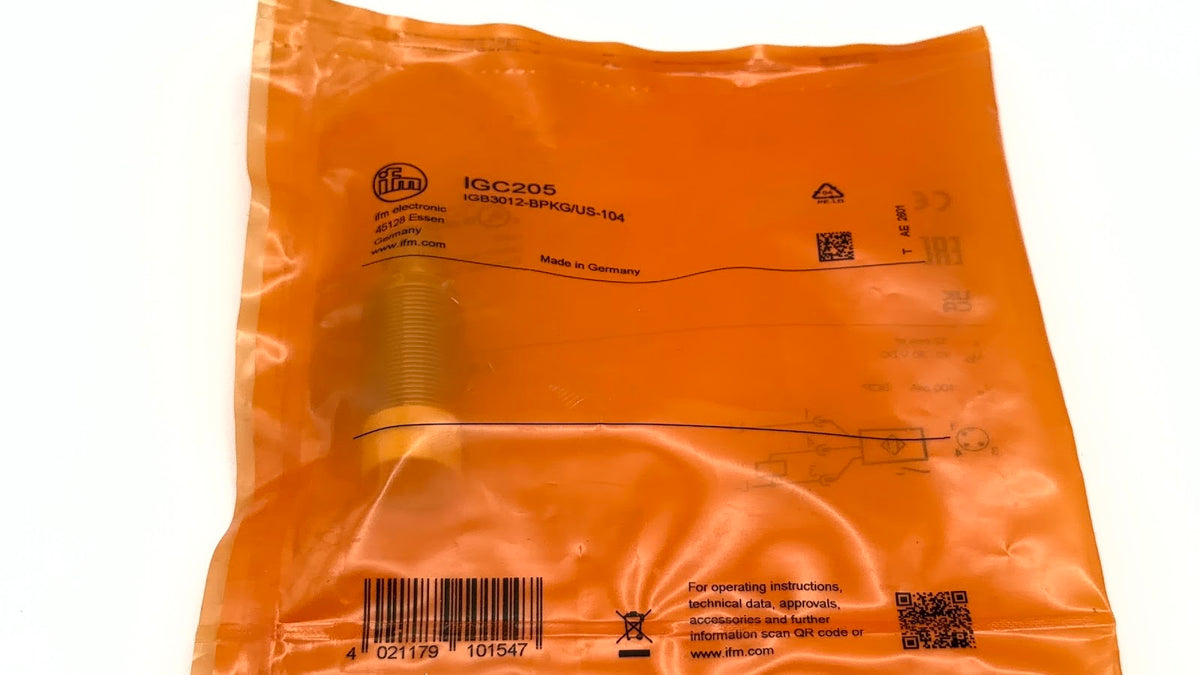

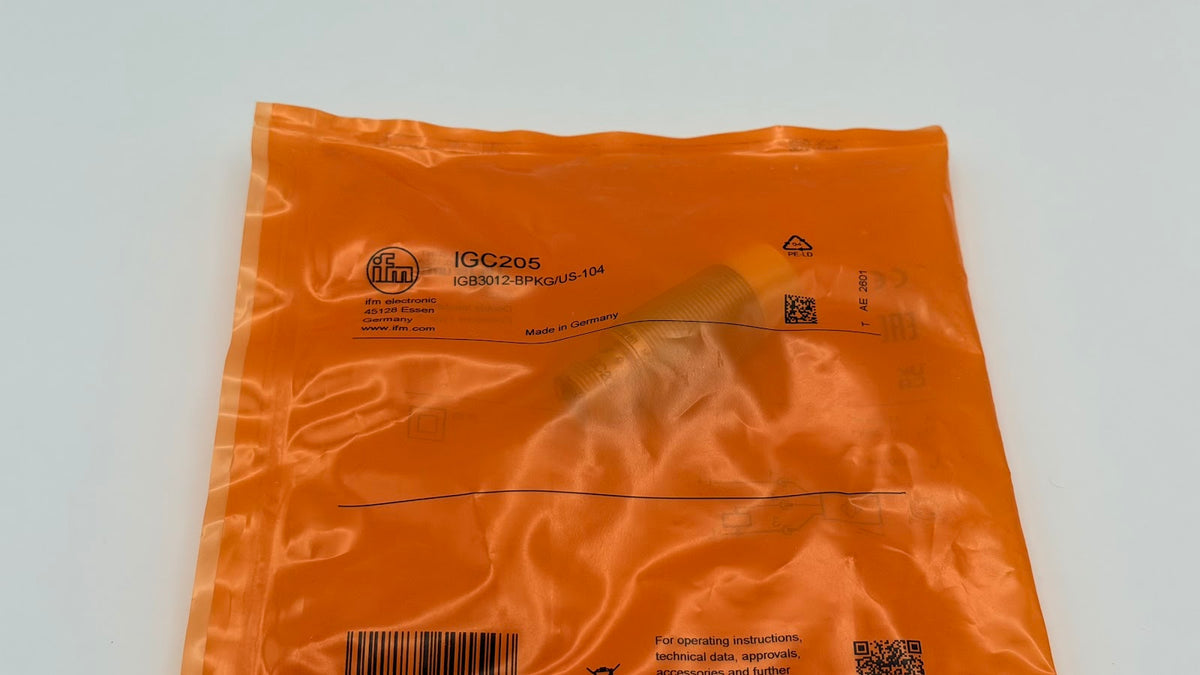

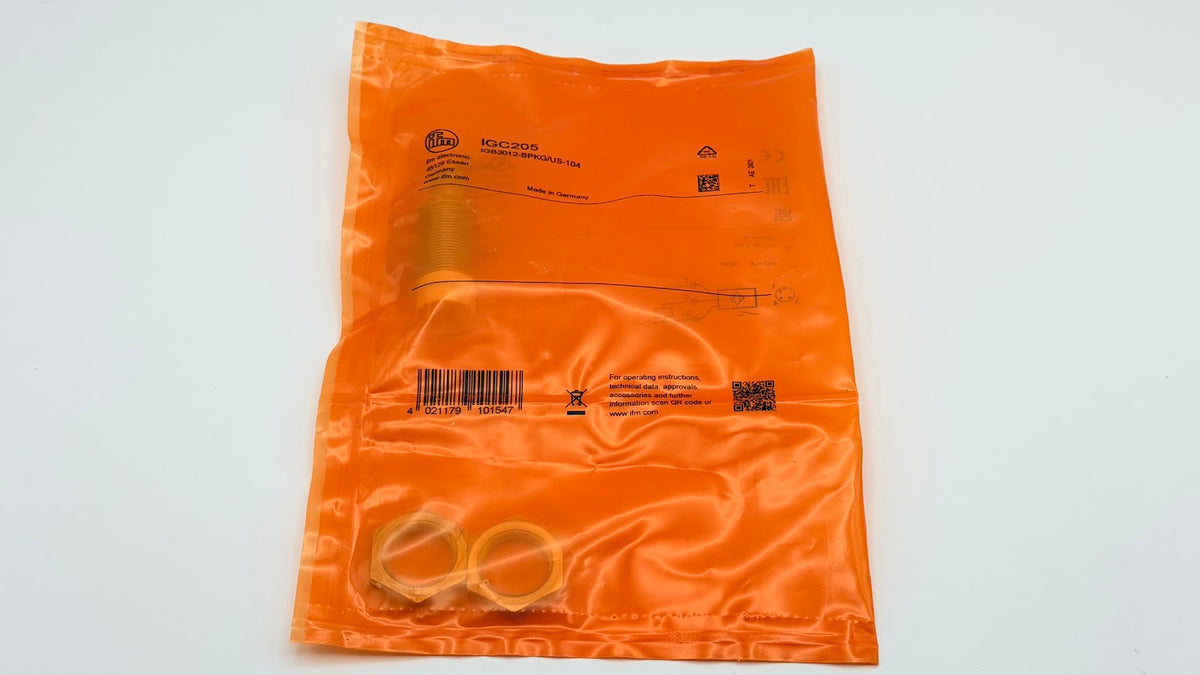

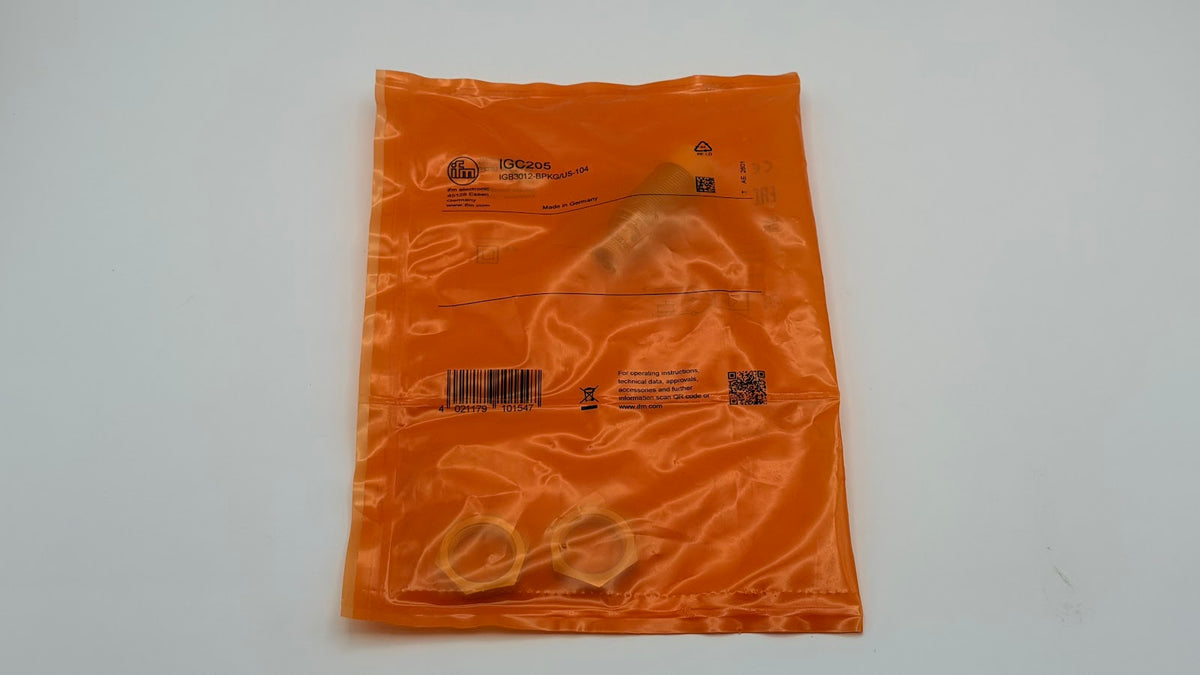

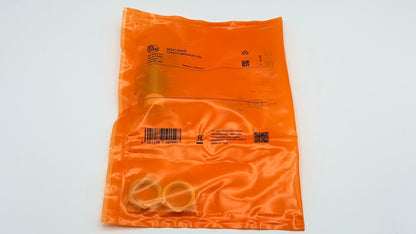

IFM IGC205 - Inductive Sensor, M18 Non-Flush, 12 mm Range

Q: What is the sensing range of the IFM IGC205?

The IGC205 has a sensing range of 12 mm, with a real sensing range Sr of 12 mm +/- 10 %.

Q: Is the IGC205 flush or non-flush mountable?

The IGC205 is non-flush mountable.

Q: What output type and function does the IGC205 have?

It has a PNP output with normally open function, rated 100 mA permanent current with a maximum voltage drop of 2.5 V DC.

Q: What is the switching frequency of the IGC205?

The switching frequency is 300 Hz.

Q: What is the operating voltage and current consumption of the IGC205?

It operates on 10 to 30 V DC and consumes less than 10 mA.

Q: What is the housing material and IP rating of the IGC205?

The housing is brass white bronze coated with an LCP white sensing face, rated IP 68, with an ambient temperature range of -25 to 70 C.

Q: How is the IGC205 connected electrically?

It connects via a 1 x M12 A-coded 3-pin gold-plated connector.

Q: Does the IGC205 offer an increased sensing range and what are its correction factors?

Yes, it features an increased sensing range, with correction factors of 1 for steel, 0.7 for stainless steel, 0.5 for brass, 0.4 for aluminium and 0.3 for copper.

SKUIGC205BrandIFM

AED 164.00

Sale Sold out

Shipping calculated at checkout.

50 in stock

Quantity

IFM IGC205 Inductive Sensor — M18 non-flush, 12 mm extended range, IP68, oils/coolants resistant. PNP normally open, 12 mm sensing range, M18 x 1 (L 50 mm) non-flush, 10...30 V DC, IP68, -25...70 °C, brass housing.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: IGC205

Also known as: IFM IGC205 proximity sensor / proximity switch.

IGC205 Applications

The IFM IGC205 is an inductive proximity sensor used in machine tools and metalworking where oils and coolants are present. It is suited for position and presence detection on tool changers, indexing tables and clamping systems in factory automation. The increased 12 mm sensing range gives high uptime and installation tolerance, the IP68 brass housing withstands harsh industrial environments, and clearly visible 4-way LED switching indication simplifies commissioning and fault-finding.

IGC205 Specifications

Brand	IFM	Product Type	Inductive sensor
IFM Type Code	IGB3012-BPKG/US-104	Electrical Design	PNP
Output Function	Normally open	Sensing Range	12 mm (Sr 12 mm ±10%)
Housing	M18 x 1, L = 50 mm, non-flush mountable	Operating Voltage	10...30 V DC
Current Consumption	< 10 mA	Switching Frequency	300 Hz
Protection Rating	IP 68	Ambient Temperature	-25...70 °C
Housing Material	Brass, white bronze coated	Electrical Connection	M12 connector, A-coded, 3 gold-plated contacts
Weight	43.8 g	Approvals	cULus (UL E174191); EMC EN 55011 Class B

IGC205 Datasheet & Manual

Download Datasheet & ManualIFM IGC205 · PDF · Official IFM document

IGC205 – Frequently Asked Questions (FAQ)

What is the sensing range of the IFM IGC205?

The IGC205 has a sensing range of 12 mm, with a real sensing range Sr of 12 mm +/- 10 %.

Is the IGC205 flush or non-flush mountable?

The IGC205 is non-flush mountable.

What output type and function does the IGC205 have?

It has a PNP output with normally open function, rated 100 mA permanent current with a maximum voltage drop of 2.5 V DC.

What is the switching frequency of the IGC205?

The switching frequency is 300 Hz.

What is the operating voltage and current consumption of the IGC205?

It operates on 10 to 30 V DC and consumes less than 10 mA.

What is the housing material and IP rating of the IGC205?

The housing is brass white bronze coated with an LCP white sensing face, rated IP 68, with an ambient temperature range of -25 to 70 C.

How is the IGC205 connected electrically?

It connects via a 1 x M12 A-coded 3-pin gold-plated connector.

Does the IGC205 offer an increased sensing range and what are its correction factors?

Yes, it features an increased sensing range, with correction factors of 1 for steel, 0.7 for stainless steel, 0.5 for brass, 0.4 for aluminium and 0.3 for copper.
