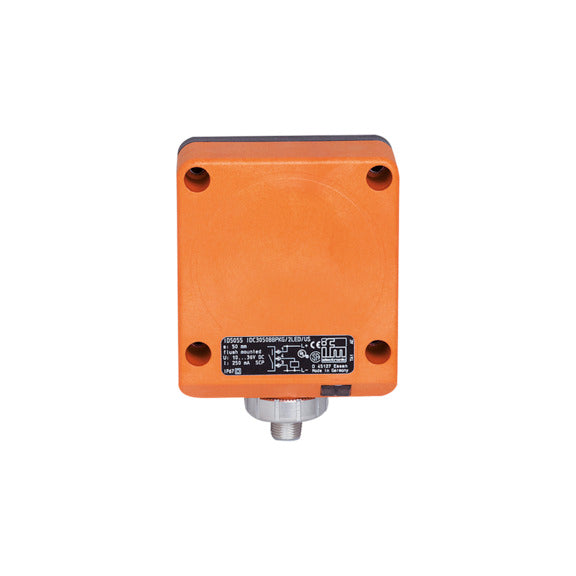

IFM ID5055 - Inductive Sensor, Rectangular Block, 50 mm Range

SKUID5055BrandIFM

AED 621.20

~~AED 690.21~~ AED 621.20

Sale Sold out

Shipping calculated at checkout.

Quantity

IFM ID5055 Inductive Sensor — large rectangular block, very long 50 mm sensing range, DIN-rail mount, M12. PNP normally open, 50 mm sensing range, rectangular 92 x 80 x 40 mm, DIN-rail mountable, 10...36 V DC, IP67, -25...70 °C.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: ID5055

Also known as: IFM ID5055 proximity sensor / proximity switch.

ID5055 Applications

The IFM ID5055 is a long-range inductive block sensor used for detecting metal objects at large distances in factory automation. It is suited for pallet, carrier and large-part detection on conveyors and storage systems where a big sensing gap is needed. The large active sensor face gives a very long 50 mm sensing range, the robust PPE and nickel-plated zinc housing withstands harsh industrial environments, and DIN-rail mounting with a robust M12 connector makes installation and replacement quick and reliable.

ID5055 Specifications

Brand	IFM	Product Type	Inductive sensor (long range)
IFM Type Code	IDC3050BBPKG/2LED/US-100-DPS	Electrical Design	PNP
Output Function	Normally open	Sensing Range	50 mm
Housing	Rectangular, 92 x 80 x 40 mm, flush mountable	Mounting	DIN rail TH35 (EN 60715)
Operating Voltage	10...36 V DC	Current Consumption	15 mA (24 V)
Switching Frequency	70 Hz	Protection Rating	IP 67
Ambient Temperature	-25...70 °C	Housing Material	PPE; diecast zinc, nickel-plated
Electrical Connection	M12 connector, A-coded, 4 contacts	Weight	420.5 g

ID5055 Datasheet & Manual

Download Datasheet & ManualIFM ID5055 · PDF · Official IFM document

ID5055 – Frequently Asked Questions (FAQ)

What is the sensing range of the IFM ID5055 inductive sensor?

The ID5055 has a sensing range of 50 mm, with an operating distance of 0...40.5 mm (mounted flush with mild steel ST37).

What output does the IFM ID5055 have?

The ID5055 has 1 PNP normally open output, with a permanent current rating of 250 mA DC and a maximum voltage drop of 2.5 V.

What is the switching frequency of the IFM ID5055?

The ID5055 has a switching frequency of 70 Hz DC.

What operating voltage and current does the IFM ID5055 use?

The ID5055 runs on 10...36 V DC and consumes 15 mA at 24 V.

What is the housing and mounting of the IFM ID5055?

The ID5055 has a rectangular housing measuring 92 x 80 x 40 mm made of PPE and nickel-plated diecast zinc, and mounts on a DIN rail. It weighs 420.5 g.

What is the IP rating and operating temperature of the IFM ID5055?

The ID5055 is rated IP 67 with an operating temperature range of -25...70 degrees C and protection class II.

What connection and indicators does the IFM ID5055 have?

The ID5055 uses one M12 A-coded connector with 4 contacts, and has a yellow LED for switching status plus a green LED for operation.

What protection features does the IFM ID5055 have?

The ID5055 includes reverse polarity protection, short-circuit protection (pulsed) and overload protection.
