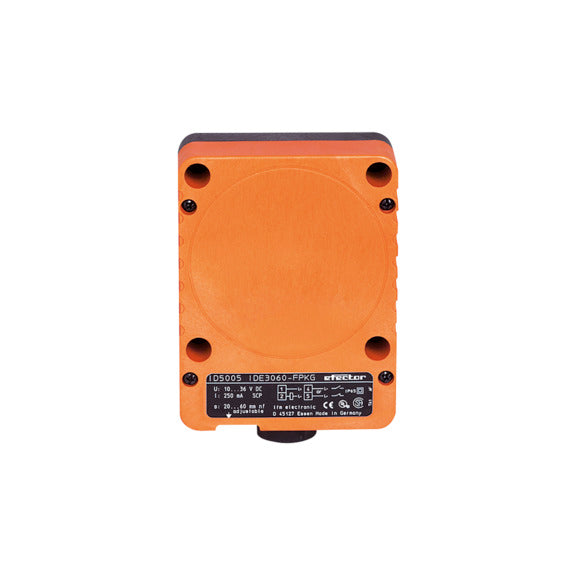

IFM ID5005 - Inductive Sensor, 60 mm Range, Adjustable PNP

SKUID5005BrandIFM

AED 636.74

~~AED 707.47~~ AED 636.74

Sale Sold out

Shipping calculated at checkout.

Quantity

IFM ID5005 Inductive Sensor — long-range block sensor, adjustable up to 60 mm, PNP NO/NC, terminal connection. inductive proximity sensor in rectangular block housing, very long 60 mm sensing range adjustable via potentiometer, PNP normally open/closed selectable, 10...36 V DC, large active face, terminal connection, IP65.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: ID5005

Also known as: IFM ID5005 proximity sensor / proximity switch.

ID5005 Applications

The IFM ID5005 long-range inductive sensor detects metal at up to 60 mm, ideal where large gaps or non-flush mounting are required, such as on pallet, gate and heavy-machinery position sensing. Its adjustable potentiometer range and selectable NO/NC output give installation flexibility, and the robust block housing withstands demanding industrial conditions.

ID5005 Specifications

Brand	IFM	Product Type	Inductive sensor (long range)
Product type code	IDE3060-FPKG	Housing	Rectangular, 105 x 80 x 40 mm
Sensing range	60 mm (adjustable)	Electrical design	PNP
Output function	Normally open / closed (selectable)	Operating voltage	10...36 V DC
Switching frequency	100 Hz	Mounting	Non-flush mountable
Protection	IP 65	Weight	434 g
Electrical connection	Terminals, cable gland M20 x 1.5

ID5005 Datasheet & Manual

Download Datasheet & ManualIFM ID5005 · PDF · Official IFM document

ID5005 – Frequently Asked Questions (FAQ)

What is the sensing range of the IFM ID5005?

The ID5005 has a sensing range of 60 mm, which is adjustable, and it is non-flush mountable.

Can the sensing distance of the ID5005 be adjusted?

Yes, the ID5005 has an adjustable sensing range with a hysteresis of 1...15 percent of the real sensing range Sr.

What output type and function does the ID5005 provide?

The ID5005 has a single PNP output that is selectable between normally open and normally closed, with a switching frequency of 100 Hz DC.

What is the operating voltage and output current of the ID5005?

The ID5005 operates on 10...36 V DC, draws 15 mA at 24 V, and has a permanent switching output current rating of 250 mA, with reverse polarity and short-circuit protection.

What is the housing material and protection rating of the ID5005?

The ID5005 has a PPE housing and is rated IP 65.

What temperature range does the ID5005 operate in?

The ID5005 has an ambient temperature range of -25...80 degrees C (UL approval 0...40 degrees C).

How is the ID5005 wired?

The ID5005 uses terminals up to 2.5 mm square, with a cable sheath diameter of 7...13 mm and an M20 x 1.5 cable gland.

What are the target correction factors for the ID5005?

For the ID5005, correction factors are steel 1.0, stainless steel 0.7, brass 0.4, aluminium 0.3, and copper 0.2.
