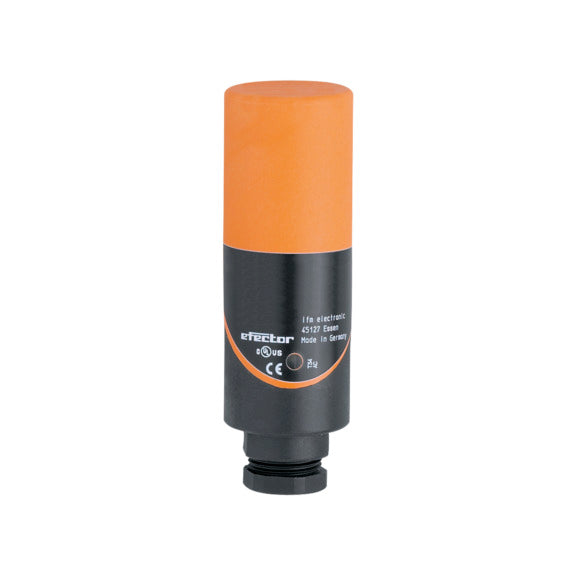

IFM IB5124 - Inductive Sensor, Ø34, 20 mm Range, NO/NC

Name: IFM IB5124 - Inductive Sensor, Ø34, 20 mm Range, NO/NC
Brand: IFM
SKU: IB5124
Price: 469.97 AED
Availability: InStock

SKUIB5124BrandIFM

AED 469.97

~~AED 522.19~~ AED 469.97

Sale Sold out

Shipping calculated at checkout.

Quantity

IFM IB5124 Inductive Sensor — tubular Ø34, 20 mm range, PBT housing for aggressive media, PNP/NPN NO/NC. inductive proximity sensor, tubular Ø34 mm, 20 mm range, smooth PBT housing for aggressive media, PNP/NPN NO/NC selectable, rotatable terminal chamber, 10...55 V DC, IP65.

MPN / SKU: IB5124

Also known as: IFM IB5124 proximity sensor / proximity switch.

IB5124 Applications

The IFM IB5124 inductive sensor detects metal at 20 mm and its smooth chemical-resistant PBT housing prevents deposits, suiting harsh and aggressive-media applications with a rotatable terminal chamber for easy wiring.

IB5124 Specifications

Brand	IFM	Product Type	Inductive sensor
Product type code	IBE2020-FRKG	Housing	Tubular Ø 34 / L 98 mm, PBT
Sensing range	20 mm	Output	PNP/NPN NO/NC (selectable)
Operating voltage	10...55 V DC	Protection	IP 65
Weight	183 g

IB5124 Datasheet & Manual

Download IFM IB5124 Datasheet & Manual (PDF)

IB5124 -- Frequently Asked Questions (FAQ)

What is the IFM IB5124?

IFM IB5124 is a Inductive Sensor -- tubular Ø34, 20 mm range, PBT housing for aggressive media, PNP/NPN NO/NC.

What is the IFM IB5124 used for?

What are the key specifications of the IFM IB5124?

IFM IB5124 -- inductive proximity sensor, tubular Ø34 mm, 20 mm range, smooth PBT housing for aggressive media, PNP/NPN NO/NC selectable, rotatable terminal chamber, 10...55 V DC, IP65.

What output or connection does the IFM IB5124 have?

The IFM IB5124 has -- Output: PNP/NPN NO/NC (selectable).

Where can I get the IFM IB5124 datasheet?

The official IFM IB5124 datasheet (PDF) is linked in the Datasheet & Manual section on this page.
