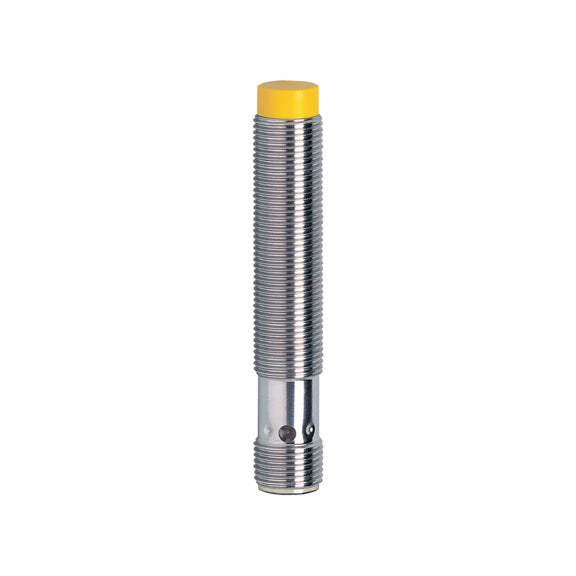

IFM GF711S - Fail-Safe Inductive Sensor, 2x OSSD, SIL 2 / PL d

Name: IFM GF711S - Fail-Safe Inductive Sensor, 2x OSSD, SIL 2 / PL d
Brand: IFM
SKU: GF711S
Price: 711.62 AED
Availability: InStock

SKUGF711SBrandIFM

AED 711.62

~~AED 790.69~~ AED 711.62

Sale Sold out

Shipping calculated at checkout.

Quantity

IFM GF711S Fail-Safe Inductive Sensor — fail-safe inductive sensor M12, 2x OSSD, SIL 2 / PL d, no special actuator. fail-safe inductive sensor for machine safety, M12 x 1 stainless housing, 4 mm enable zone, two OSSD outputs, certified EN 60947-5-3, IEC 61508 SIL 2 and ISO 13849-1 PL d, no special actuator required, IP67.

MPN / SKU: GF711S

Also known as: IFM GF711S safety sensor / safety inductive sensor / proximity safety switch.

GF711S Applications

The IFM GF711S fail-safe inductive sensor ensures machine safety without a coded actuator, providing two OSSD outputs for connection to a safety PLC or safe evaluation unit. It is certified to SIL 2 and PL d for guarding and interlock functions.

GF711S Specifications

Brand	IFM	Product Type	Fail-safe inductive sensor
Product type code	GIFA4004-2PS/SIL2/V4A/US	Housing / thread	M12 x 1, 316L stainless
Enable zone	0.5...4 mm	Outputs	2 x OSSD (PNP)
Safety rating	SIL 2 (IEC 61508); PL d (ISO 13849-1)	Operating voltage	19.2...30 V DC
Protection	IP 65; IP 67	Weight	109.5 g

GF711S Datasheet & Manual

Download IFM GF711S Datasheet & Manual (PDF)

GF711S -- Frequently Asked Questions (FAQ)

What is the IFM GF711S?

IFM GF711S is a Fail-Safe Inductive Sensor -- fail-safe inductive sensor M12, 2x OSSD, SIL 2 / PL d, no special actuator.

What is the IFM GF711S used for?

The IFM GF711S fail-safe inductive sensor ensures machine safety without a coded actuator, providing two OSSD outputs for connection to a safety PLC or safe evaluation unit.

What are the key specifications of the IFM GF711S?

IFM GF711S -- fail-safe inductive sensor for machine safety, M12 x 1 stainless housing, 4 mm enable zone, two OSSD outputs, certified EN 60947-5-3, IEC 61508 SIL 2 and ISO 13849-1 PL d, no special actuator required, IP67.

What output or connection does the IFM GF711S have?

The IFM GF711S has -- Output: 2 x OSSD (PNP).

Where can I get the IFM GF711S datasheet?

The official IFM GF711S datasheet (PDF) is linked in the Datasheet & Manual section on this page.

View full details
