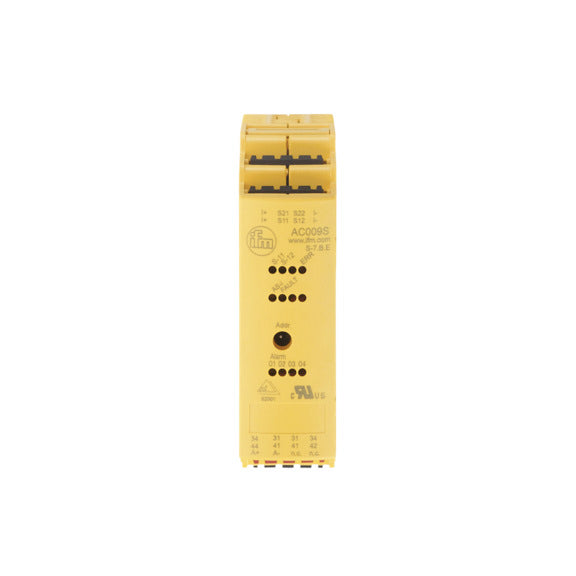

IFM AC009S - AS-Interface Safety Module, 2 Safe Inputs, SIL3 Relay

IFM AC009S - AS-Interface Safety Module, 2 Safe Inputs, SIL3 Relay

SKUAC009SBrandIFM
Regular price AED 946.11
Regular price AED 1,051.25 Sale price AED 946.11
Sale Sold out
Shipping calculated at checkout.

Only 6 left

IFM AC009S AS-Interface Safety Module — AS-i SmartLine safety module, 2 safe inputs + 2 relay outputs, SIL3 / PLe, DIN-rail. AS-Interface safety module, 2 safe inputs (cross-monitored) + 2 relay outputs, SIL3 / ISO 13849 PLe, DIN-rail, 26.5...31.6 V DC, IP20.

MPN / SKU: AC009S

AC009S Applications

The IFM AC009S is an AS-Interface control cabinet safety module used to connect mechanical safety switches to an AS-i safety network. It is suited for E-stop, guard-door and interlock monitoring on machines using AS-i Safety at Work. It provides two safe inputs with cross-monitoring and two relay outputs, meets ISO 13849-1 Category 4 PLe and IEC 61508 SIL3, and uses powerful LEDs to show operation, switching status and errors. The space-saving DIN-rail housing wires quickly via screw terminals.

AC009S Specifications

Brand IFM Product Type AS-Interface control cabinet safety module
IFM Type Code SmartLine SafetyModul Inputs 2 x safe input (PNP, cross-monitored)
Outputs 2 x relay (24 V DC / 10...240 V AC, 6 A ohmic) Safety Rating SIL3 (IEC 61508); Cat 4 PLe (ISO 13849-1)
PFH 4E-09 /h AS-i Profile S-7.B.E; AS-i v2.11 / 3.0
Operating Voltage 26.5...31.6 V DC (AS-i) Mounting DIN rail TH35 (EN 60715)
Dimensions 93 x 25.4 x 108 mm Protection Rating IP 20
Ambient Temperature -25...50 °C Housing Material PC-GF20
Electrical Connection Screw terminals / pin headers Weight 258 g

AC009S -- Frequently Asked Questions (FAQ)

What is the IFM AC009S?

IFM AC009S is a AS-Interface Safety Module -- AS-i SmartLine safety module, 2 safe inputs + 2 relay outputs, SIL3 / PLe, DIN-rail.

What is the IFM AC009S used for?

The IFM AC009S is an AS-Interface control cabinet safety module used to connect mechanical safety switches to an AS-i safety network.

What are the key specifications of the IFM AC009S?

IFM AC009S -- AS-Interface safety module, 2 safe inputs (cross-monitored) + 2 relay outputs, SIL3 / ISO 13849 PLe, DIN-rail, 26.5...31.6 V DC, IP20.

What output or connection does the IFM AC009S have?

The IFM AC009S has -- Output: 2 x relay (24 V DC / 10...240 V AC, 6 A ohmic).

Where can I get the IFM AC009S datasheet?

The official IFM AC009S datasheet (PDF) is linked in the Datasheet & Manual section on this page.
