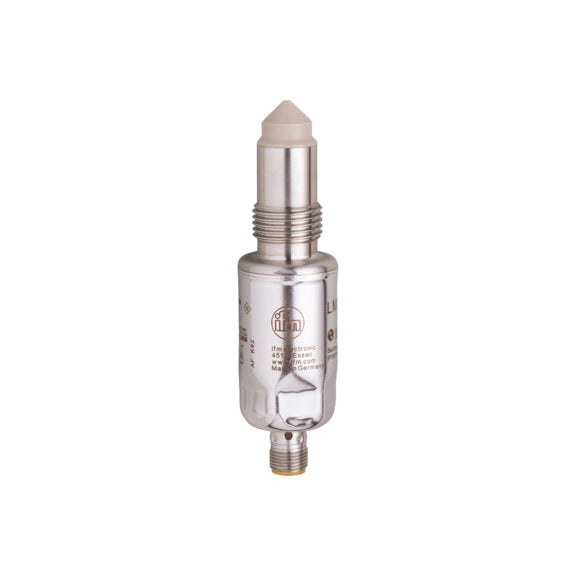

IFM LMT110 - Point Level Sensor, Hygienic G1/2, IO-Link

Q: What outputs does the LMT110 provide?

The IFM LMT110 provides two digital outputs, electrically configurable as PNP/NPN and as normally open / normally closed (parameterisable), with a permanent current rating of 100 mA and a max. switching-output voltage drop of 2.5 V DC.

Q: Does the LMT110 support IO-Link, and at what revision and baud rate?

Yes. The IFM LMT110 supports IO-Link revision 1.1 with transmission type COM2 (38.4 kBaud) per the SDCI standard IEC 61131-9.

Q: What is the operating voltage and current consumption of the LMT110?

The IFM LMT110 operates on 18...30 V DC with a current consumption of < 50 mA.

Q: What are the wetted materials and IP rating of the LMT110?

The IFM LMT110 uses stainless steel (316L/1.4404), PEEK, PEI and FKM, and carries protection ratings IP 68 and IP 69K.

Q: What is the medium temperature range and pressure rating of the LMT110?

The IFM LMT110 handles a medium temperature of -40...100 degrees C (short-term up to -40...150 degrees C for max. 1 hour) and a tank pressure of -1...40 bar (-0.1...4 MPa); ambient temperature is -40...85 degrees C.

Q: What process and electrical connections does the LMT110 use?

The IFM LMT110 has a G 1/2 sealing-cone process connection and one M12 A-coded electrical connector with 4 gold-plated contacts.

SKULMT110BrandIFM

AED 899.95

~~AED 999.95~~ AED 899.95

Sale Sold out

Shipping calculated at checkout.

Quantity

IFM LMT110 Point Level Sensor — factory-set for oil / oil-based media, hygienic G 1/2 sealing cone, 2 outputs and IO-Link. capacitive point level detection for liquids, viscous media and powders, hygienic G 1/2 sealing-cone connection, factory-set for oil and oil-based media, 2 switching outputs and IO-Link, PEEK sensor tip, IP68/IP69K.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: LMT110

Also known as: IFM LMT110 level sensor / level switch.

LMT110 Applications

The IFM LMT110 point level sensor detects level in tanks and containers, with its factory setting optimised for oil and oil-based media. Suited to lubrication systems, hydraulic reservoirs and process plant, it gives reliable switching in liquid, viscous and bulk media with residue and foam suppression. Two configurable outputs and IO-Link support overflow and dry-run protection as well as media differentiation.

LMT110 Specifications

Brand	IFM	Product Type	Sensor for point level detection
Product type code	LMACE-A12E/QSKG/1/US	Measuring principle	Capacitive
Factory setting	Oils; oil-based media	Media	Liquid & viscous media; powder
Tank pressure	-1...40 bar	Medium temperature	-40...100 °C (150 °C short-time)
Process connection	G 1/2 sealing cone	Operating voltage	18...30 V DC
Outputs	2 x switching (PNP/NPN); IO-Link	Protection	IP 68; IP 69K
Wetted material	PEEK	Weight	210 g
Electrical connection	M12 connector, A-coded, 4 contacts (gold-plated)

LMT110 Datasheet & Manual

Download Datasheet & ManualIFM LMT110 · PDF · Official IFM document

LMT110 – Frequently Asked Questions (FAQ)

What operating principle and media does the IFM LMT110 use for point level detection?

The IFM LMT110 uses a capacitive measuring principle with an 11 mm probe length for point level detection in liquid and viscous media and powders; its factory setting is for oils and oil-based media.

What is the response time of the LMT110?

The IFM LMT110 has a response time of < 0.5 s.

What outputs does the LMT110 provide?

The IFM LMT110 provides two digital outputs, electrically configurable as PNP/NPN and as normally open / normally closed (parameterisable), with a permanent current rating of 100 mA and a max. switching-output voltage drop of 2.5 V DC.

Does the LMT110 support IO-Link, and at what revision and baud rate?

Yes. The IFM LMT110 supports IO-Link revision 1.1 with transmission type COM2 (38.4 kBaud) per the SDCI standard IEC 61131-9.

What is the operating voltage and current consumption of the LMT110?

The IFM LMT110 operates on 18...30 V DC with a current consumption of < 50 mA.

What are the wetted materials and IP rating of the LMT110?

The IFM LMT110 uses stainless steel (316L/1.4404), PEEK, PEI and FKM, and carries protection ratings IP 68 and IP 69K.

What is the medium temperature range and pressure rating of the LMT110?

The IFM LMT110 handles a medium temperature of -40...100 degrees C (short-term up to -40...150 degrees C for max. 1 hour) and a tank pressure of -1...40 bar (-0.1...4 MPa); ambient temperature is -40...85 degrees C.

What process and electrical connections does the LMT110 use?

The IFM LMT110 has a G 1/2 sealing-cone process connection and one M12 A-coded electrical connector with 4 gold-plated contacts.
