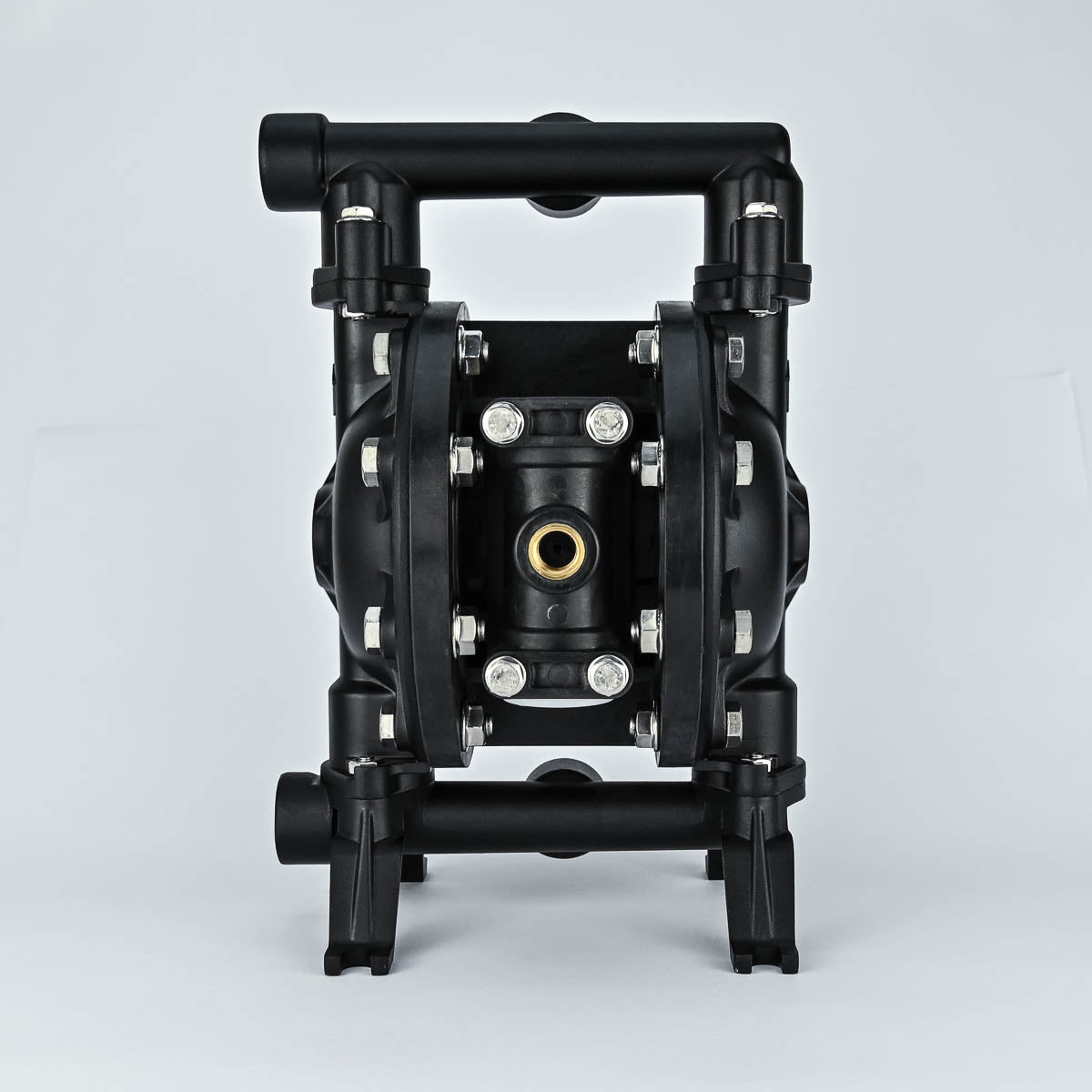

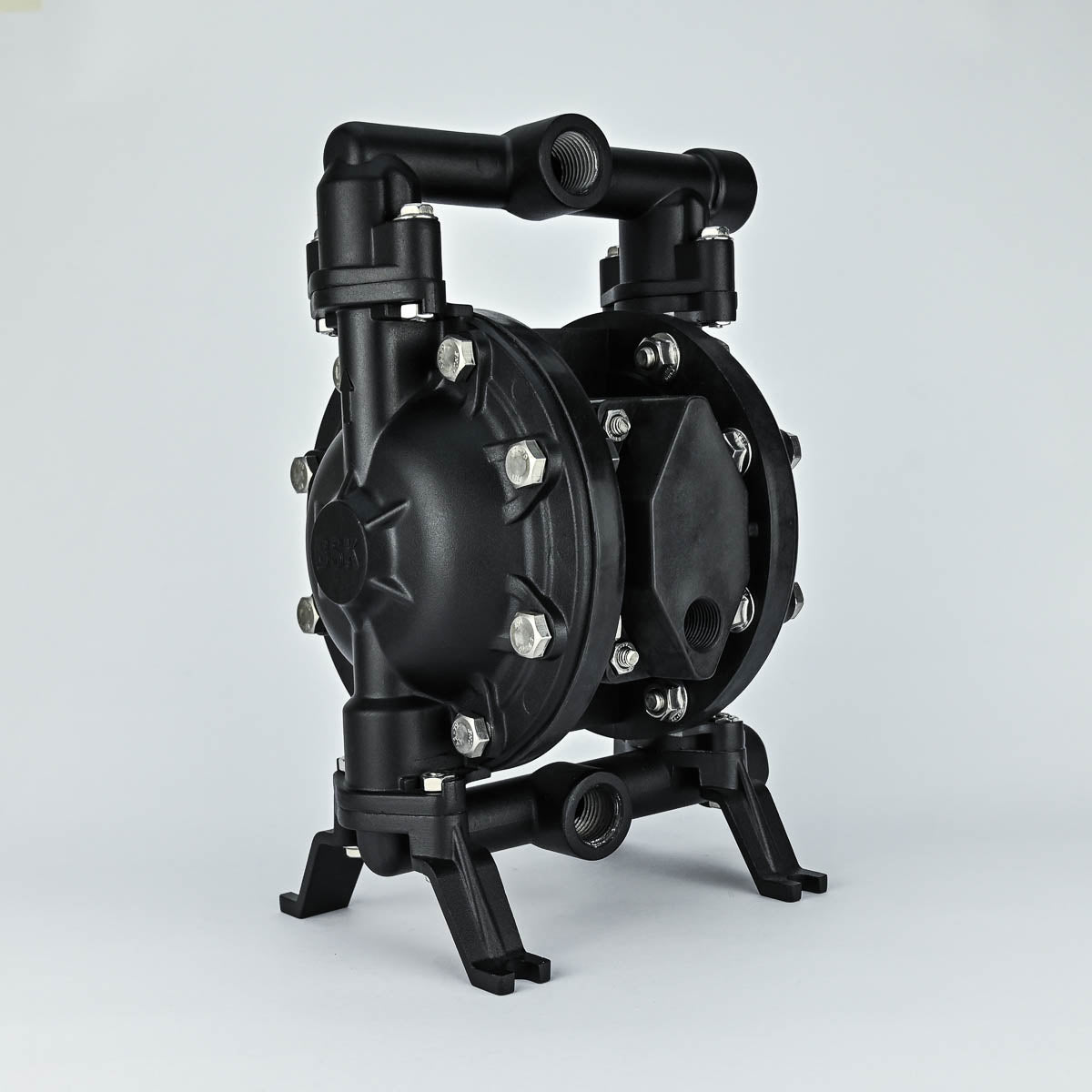

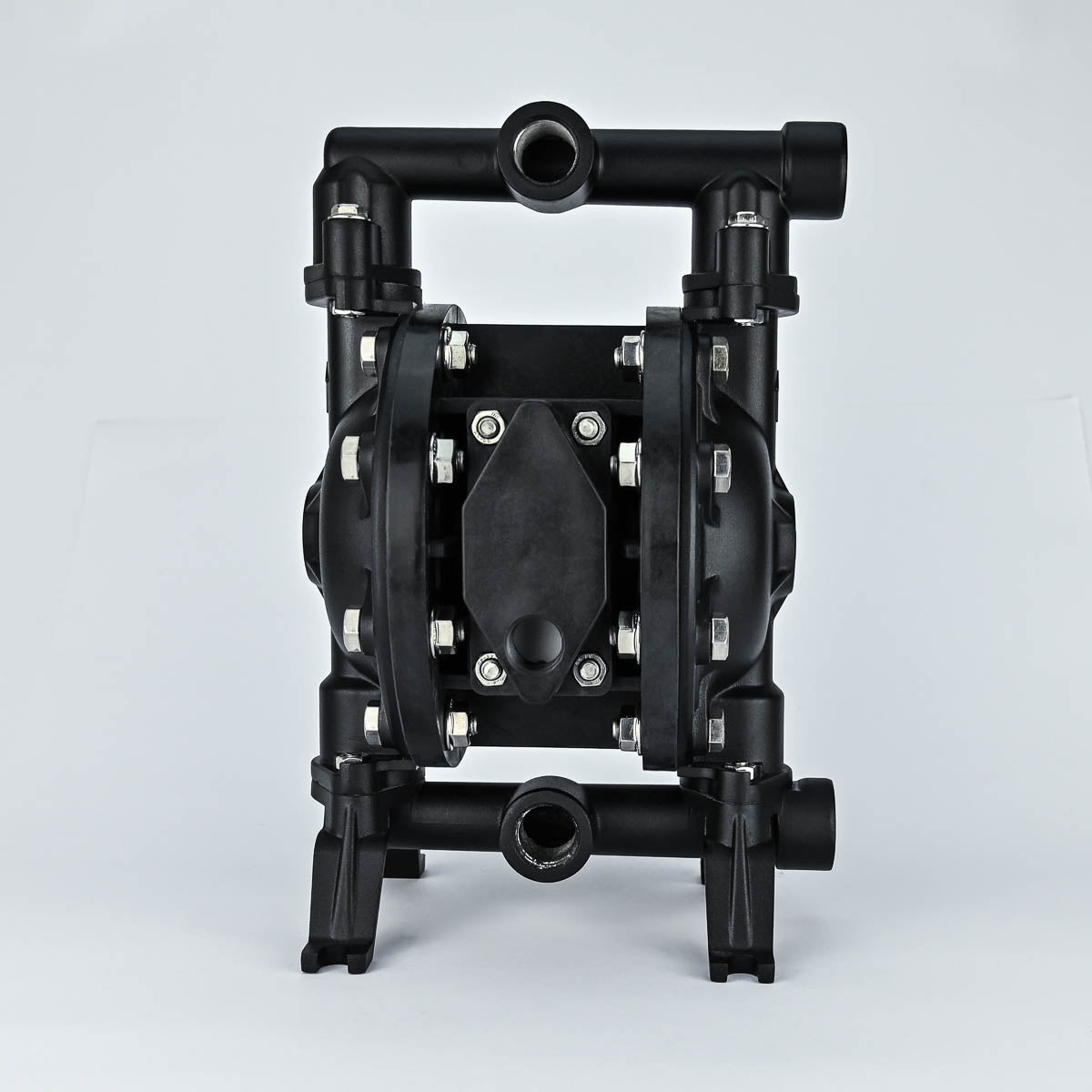

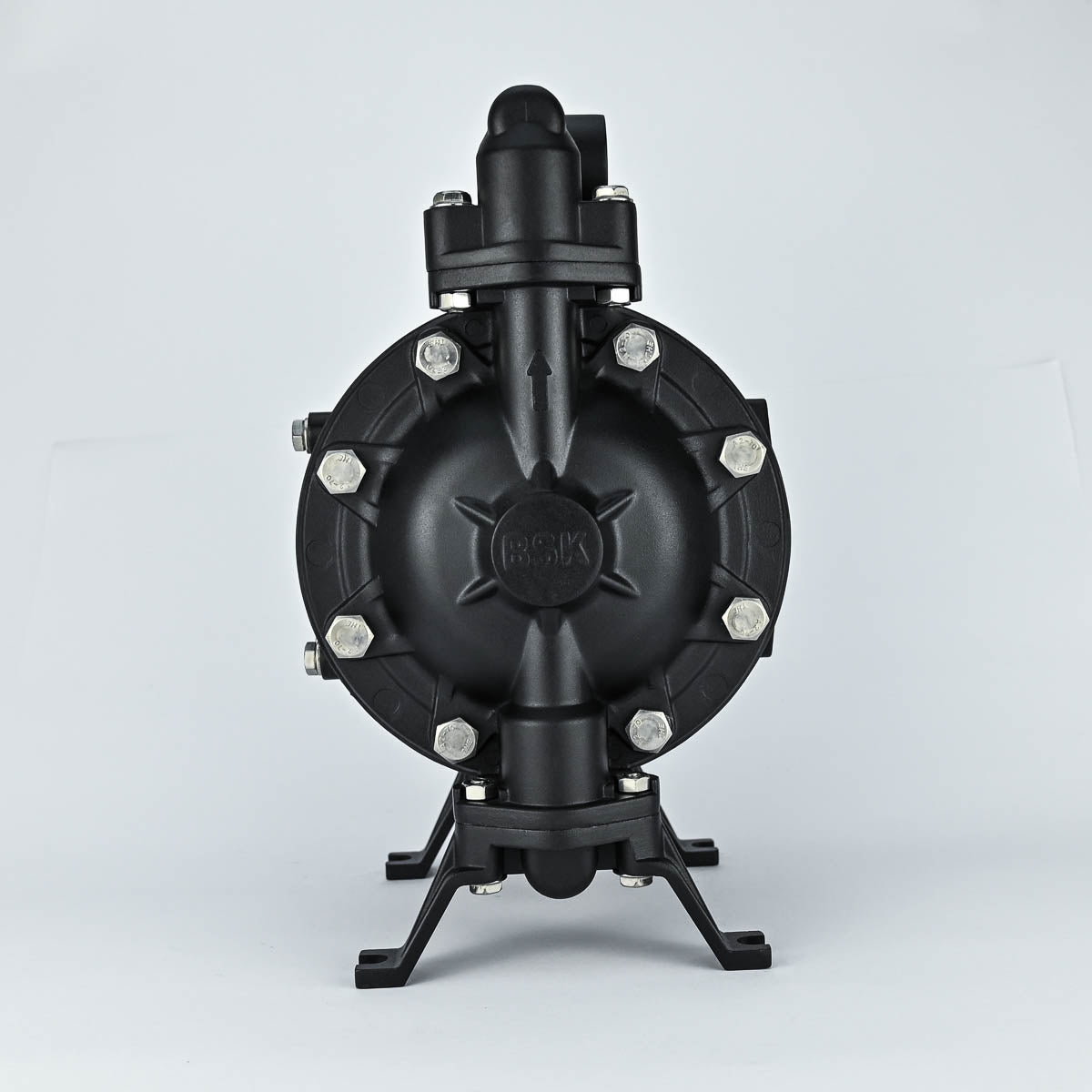

1/2 Inch AODD Pumps BP15AL-PTT3-B - Aluminium Alloy Body PTFE Diaphragm -BSK

Name: 1/2 Inch AODD Pumps BP15AL-PTT3-B - Aluminium Alloy Body PTFE Diaphragm -BSK
Brand: BSK
SKU: BP15AL-PTT3-B
Price: 1300.00 AED
Availability: InStock

SKUBP15AL-PTT3-BBrandBSK

AED 1,300.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The BP15AL-PTT3-B is a high-performance, air-operated double diaphragm (AODD) pump constructed with a durable aluminum alloy body and a chemically resistant PTFE diaphragm. Designed for chemical sampling and pure applications, this pump is engineered to reliably transfer chemicals and pure fluids in demanding laboratory and analytical environments. With a maximum flow rate of 45.3 L/Min and a maximum suction lift of 70 m, it provides efficient and safe operation for a wide range of applications

View full details

Wetted Material: Aluminium
Seat Material: PTFE
Ball Material: PTFE
Diaphragm Material: PTFE
O-ring Materials: NBR
Discharge Port: BSP
Fluid Outlet: 0.5"
Fluid Inlet: 0.5"
Max Flow: 57 L/Min

Max Suction Lift-Dry: 4.5 m
Max Air Pressure: 8.3 bar
Weight: 4.8kg
Noise: <72dB
Temperature Range: -40°C to 149°C
Dimensions/Size: 178×285×195mm
Color/Finish: Anodized Aluminium
Applications/Industry: Chemical Processing

Product Features

Compact Aluminum Body Material: Provides excellent resistance to corrosion and lightweight durability, ensuring longevity and reliability in precision aggressive chemical environments.
All-PTFE Wetted Parts Design: Provides maximum chemical compatibility and temperature resistance for the most demanding precision chemical applications.
PTFE Diaphragm Material: Offers superior chemical compatibility and temperature resistance for handling precision quantities of aggressive chemicals, acids, and high-temperature process fluids.
57 L/Min Max Flow: Enables precise and controlled aggressive chemical transfer, precision dosing of corrosive fluids, and small-scale aggressive chemical handling operations.
Self-Priming & Can Run Dry: Reduces downtime and prevents damage, critical for precision aggressive chemical processing systems and automated corrosive fluid dosing.
Seal-Less, Leak-Proof Design: Eliminates the risk of costly leaks and protects the environment from aggressive chemicals in precision applications.
Air-Operated (Intrinsically Safe): Critical for precision hazardous chemical environments where electrical sparks could cause dangerous reactions in small-scale operations.
High Temperature Range (-40°C to 149°C): Handles high-temperature chemical processes and extreme operating conditions in precision applications.
Maximum Chemical Resistance: PTFE construction provides unmatched compatibility with precision quantities of aggressive acids, solvents, and corrosive chemicals.
Compact 0.5" Port Design: Optimized for precision aggressive chemical flow control and space-limited installations requiring maximum chemical compatibility.

Applications & Industries

Precision Aggressive Chemical Processing: Controlled handling of strong acids, caustic solutions, and aggressive solvents requiring maximum chemical resistance in laboratory and pilot-scale operations.
High-Purity Laboratory Applications: Precision transfer of ultra-pure chemicals, aggressive reagents, and high-purity analytical solutions requiring zero contamination risk.
Pharmaceutical Research & Development: Precision handling of aggressive pharmaceutical intermediates, research chemicals, and corrosive process development fluids.
Semiconductor Research Applications: Controlled transfer of ultra-pure aggressive chemicals, precision etchants, and specialty cleaning solutions in R&D clean room environments.
Specialty Chemical R&D: Precision processing of aggressive intermediates, corrosive solvents, and high-value research chemicals requiring zero contamination tolerance.
Note: The BP15AL-PTT3-B's all-PTFE wetted parts construction in a compact 0.5" port design provides maximum chemical compatibility and temperature resistance for the most demanding precision applications. This model is specifically designed for laboratory and pilot-scale aggressive chemical processing where standard materials would fail, offering unmatched performance in corrosive environments while maintaining precision control and space efficiency.

Why Choose This Pump?

The BP15AL-PTT3-B from BSK Fluid Technology represents the pinnacle of compact chemical compatibility and temperature resistance, combining all-PTFE construction with precision AODD technology to deliver unmatched performance in the most demanding small-scale aggressive chemical processing applications.

Key Product Highlights:

Compact All-PTFE Construction: Maximum chemical compatibility with aggressive acids, caustic solutions, and corrosive chemicals in precision applications
Precision High-Temperature Performance: Operates reliably across -40°C to 149°C for high-temperature precision chemical processes
Maximum Chemical Resistance: Unmatched compatibility with aggressive chemicals where other materials fail in precision applications
Laboratory-Grade Performance: Suitable for high-purity precision applications requiring zero contamination risk
Proven Precision AODD Technology: Self-priming, seal-less operation ideal for precision aggressive chemical handling
Compact Precision Flow Capacity: Consistent 57 L/Min flow for demanding precision chemical processing operations
Extended Temperature Range: Superior performance in precision high-temperature applications up to 149°C
Intrinsically Safe Precision Design: Critical safety feature for precision aggressive chemical environments

The BP15AL-PTT3-B is the ultimate choice for precision aggressive chemical processing, pharmaceutical research, laboratory applications, and specialty chemical R&D where maximum chemical compatibility, temperature resistance, precision control, and zero contamination risk are essential for operational success and safety in demanding small-scale chemical environments.
