MPN / SKU: N0533A
N0533A Applications

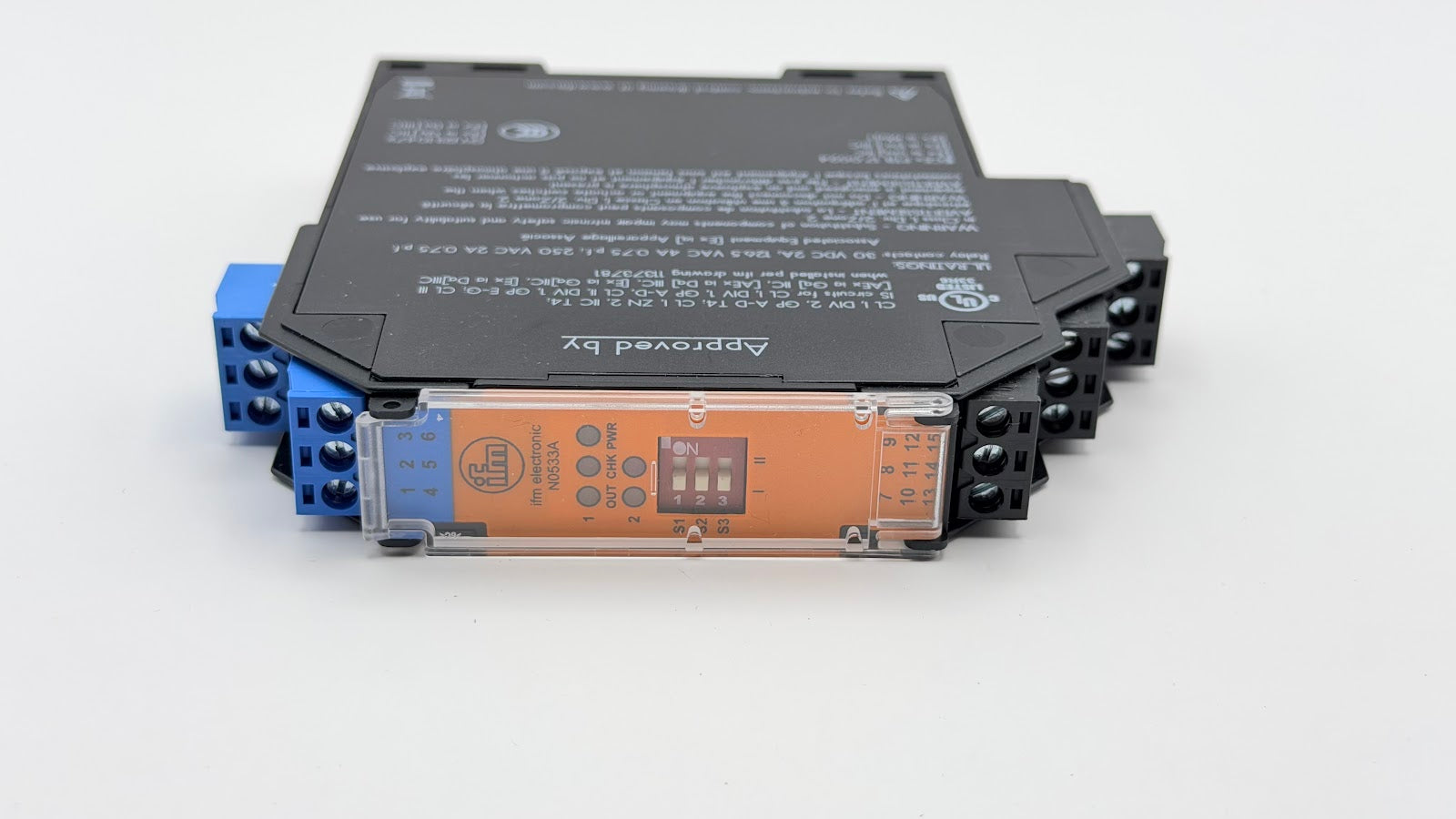

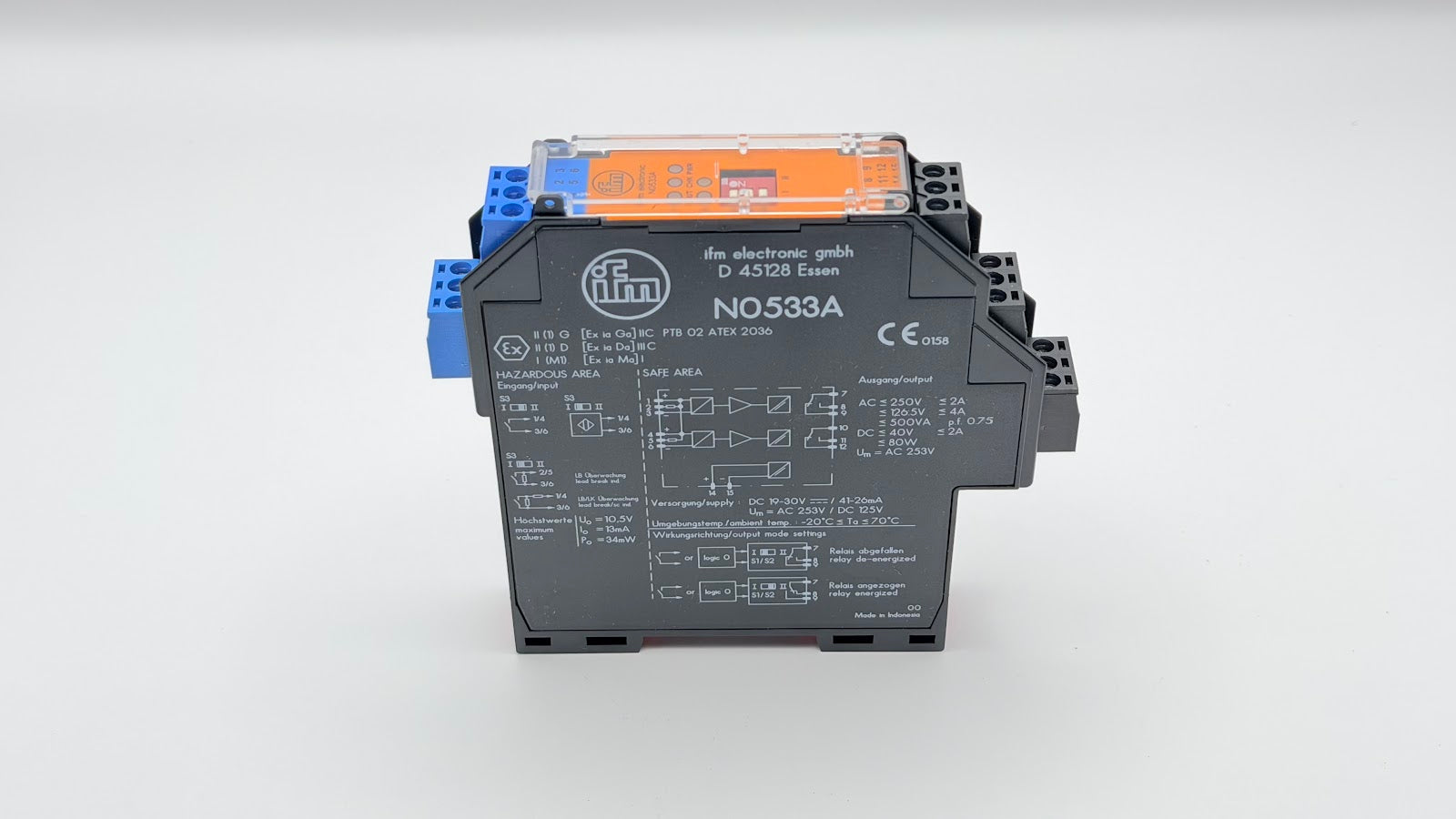

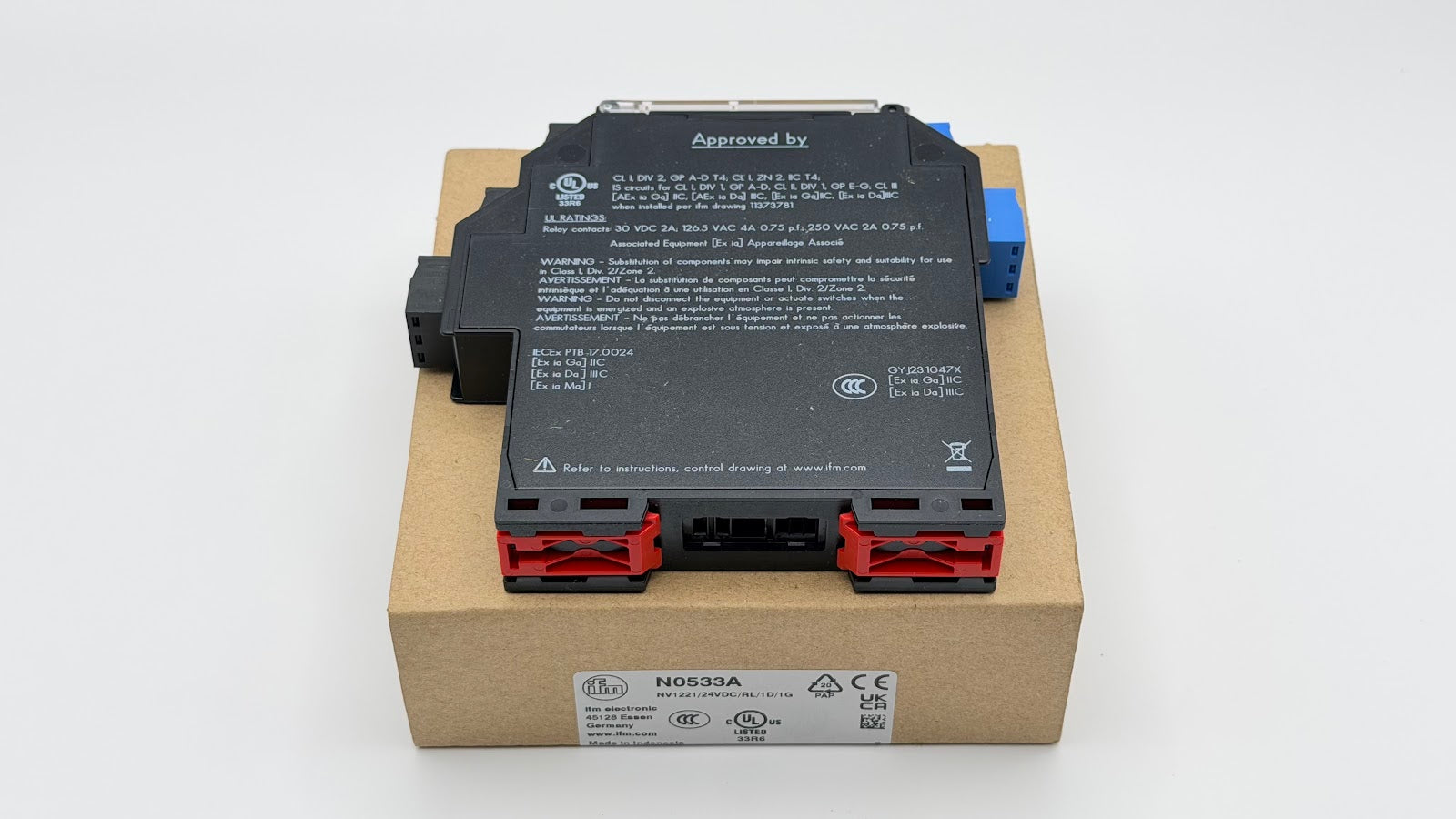

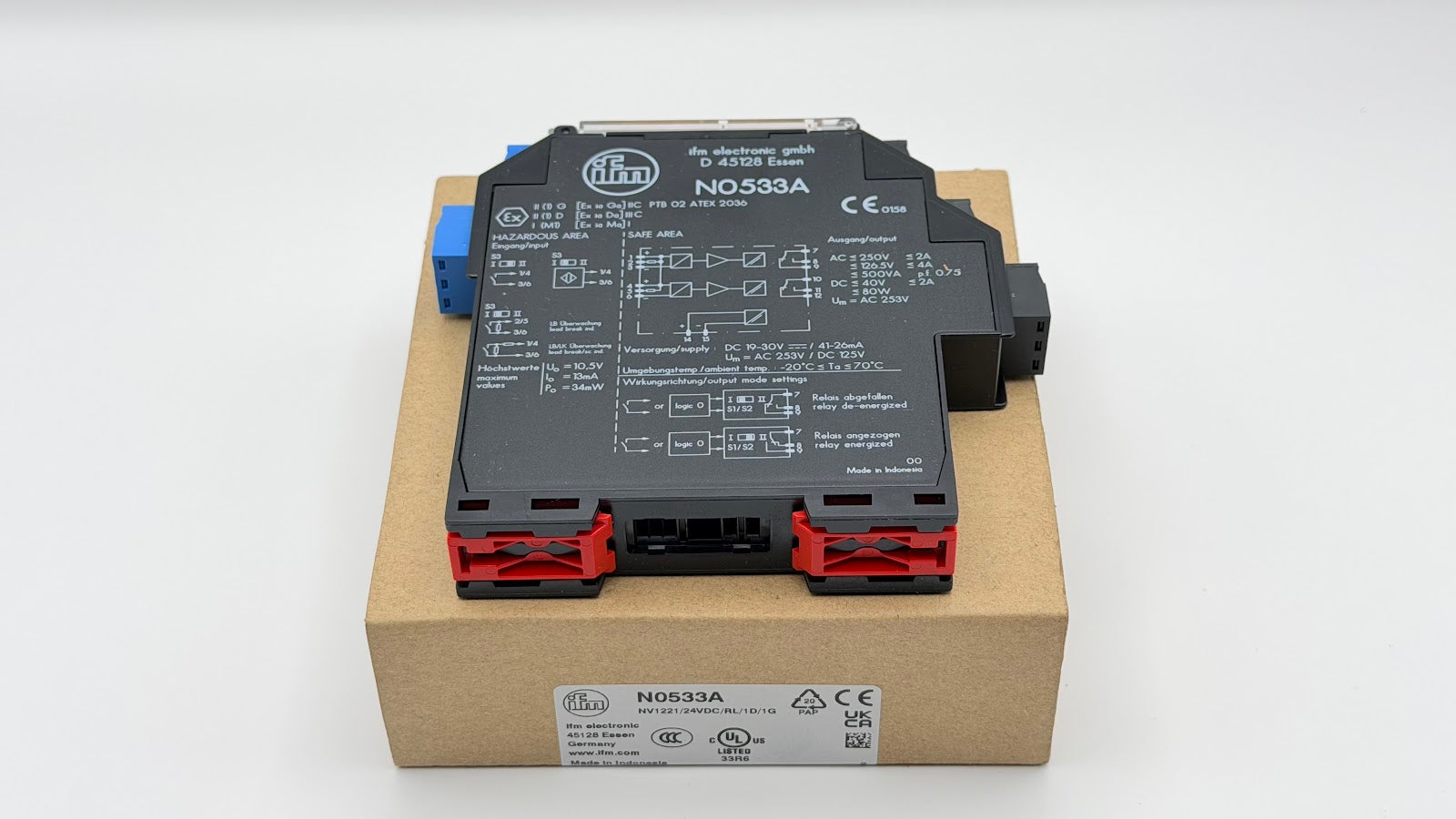

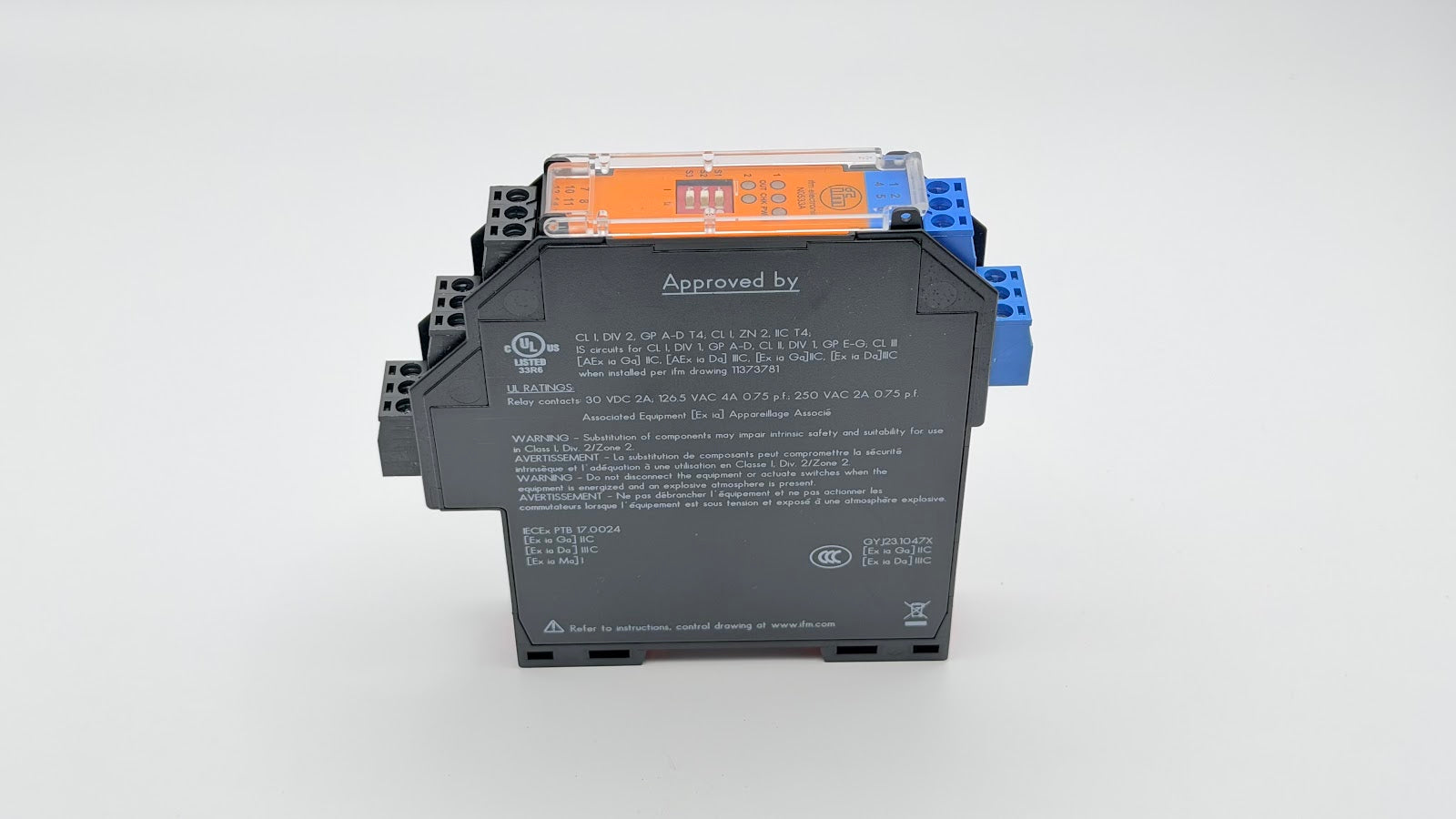

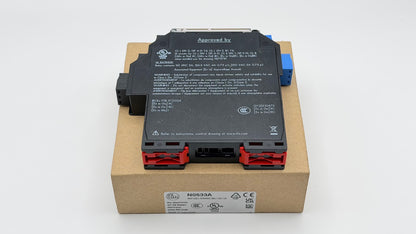

The IFM N0533A is a switching amplifier used to operate intrinsically safe NAMUR sensors located in hazardous areas from a safe-area control cabinet. It is suited for interfacing Ex ia inductive and NAMUR proximity sensors to a PLC while providing galvanic isolation, short-circuit and wire-break monitoring. Its two channels each provide a parameterisable relay changeover output, ATEX [Ex ia] associated apparatus marking, LED indication of operation, switching status and faults, and quick DIN-rail mounting. The amplifier must be mounted outside the hazardous area.
N0533A Specifications
Brand
IFM
Product Type
Switching amplifier for NAMUR sensors
IFM Type Code
NV1221/24VDC/RL/1D/1G
Channels
2
Output
Relay, 1 changeover contact per channel (parameterisable)
Contact Rating
253 V AC / 2 A; 40 V DC / 2 A (ohmic)
Monitoring
Short-circuit and wire-break
ATEX Marking
II (1) G [Ex ia Ga] IIC; II (1) D [Ex ia Da] IIIC (PTB / IECEx)
How many channels does the IFM N0533A NAMUR switching amplifier have?
The N0533A is a 2-channel NAMUR switching amplifier for connecting NAMUR sensors.
What output does the IFM N0533A have?
The N0533A has relay outputs, with 1 parameterisable changeover contact per channel and a switching frequency of 10 Hz DC.
What is the contact rating of the IFM N0533A?
The N0533A relay contacts are rated 253 V AC / 2 A / cos phi greater than 0.7 and 40 V DC / 2 A (ohmic resistance), with a mechanical life of 10 million switching cycles.
What supply voltage does the IFM N0533A need?
The N0533A runs on 24 V DC (-15...25 % tolerance) and consumes less than 50 mA.
Does the IFM N0533A detect line faults?
Yes, the N0533A provides short-circuit monitoring and wire break detection on the NAMUR input circuits.
What is the housing and mounting of the IFM N0533A?
The N0533A has a rectangular housing measuring 118.8 x 20 x 110 mm for TH35 DIN rail mounting (EN 60715), and weighs 188.45 g.
What is the IP rating and operating temperature of the IFM N0533A?
The N0533A is rated IP 20 with an operating temperature range of -20...60 degrees C, and connects via 2.5 mm2 terminals.
What indicators does the IFM N0533A have?
The N0533A has 2 yellow LEDs for switching status, a green LED for operation, and 2 red LEDs for function/fault indication.
