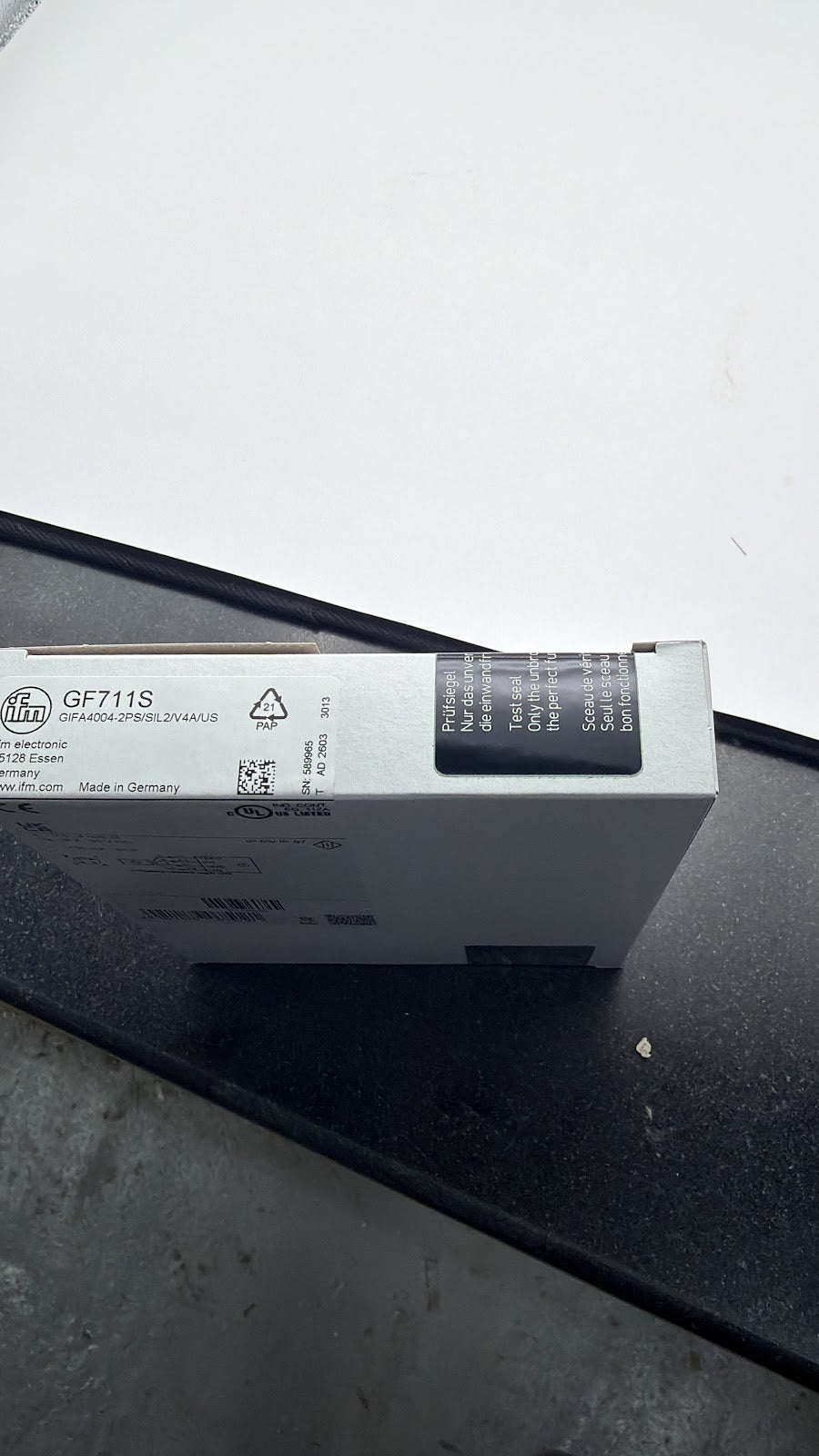

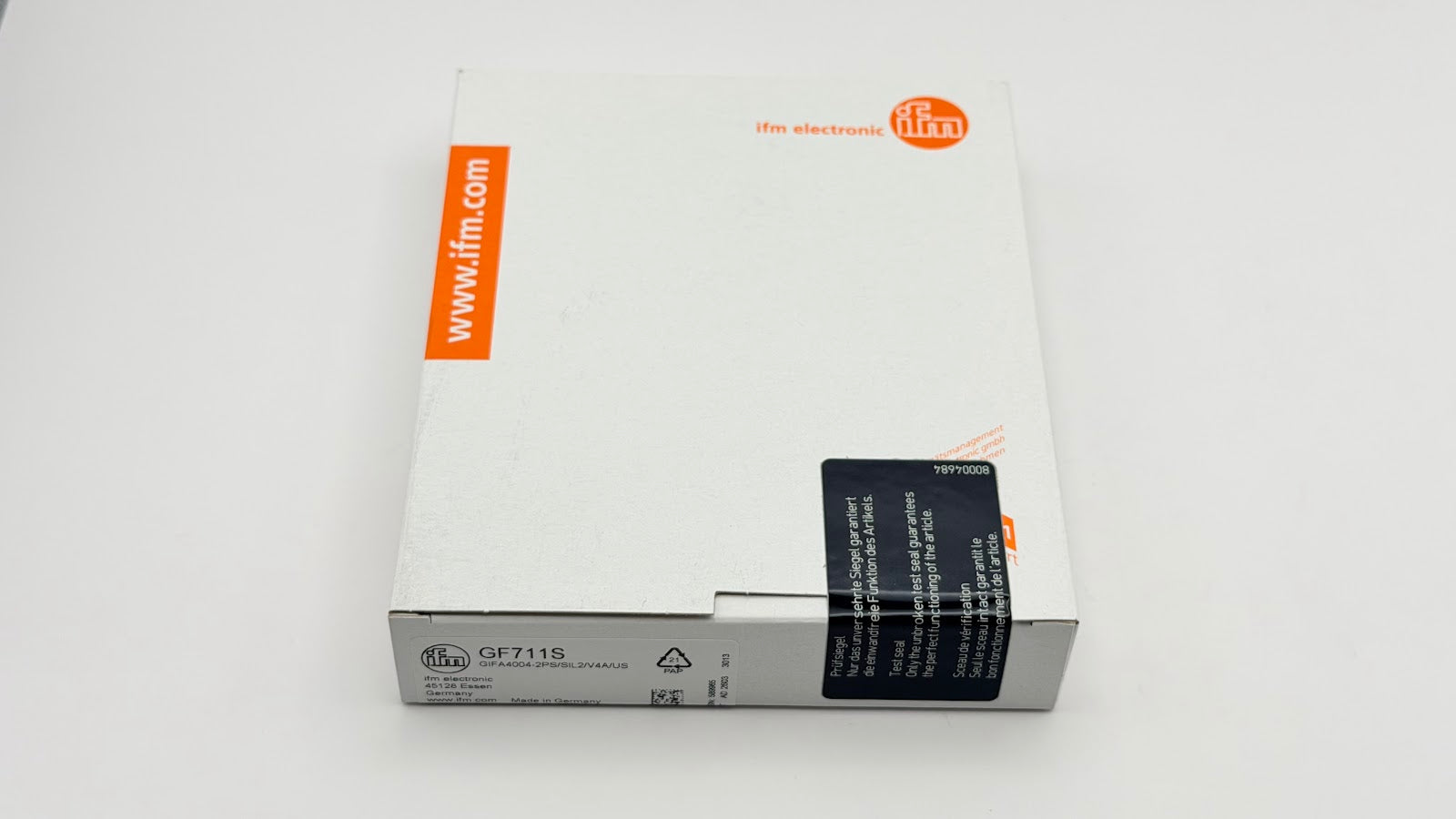

IFM GF711S - Fail-Safe Inductive Sensor, 2x OSSD, SIL 2 / PL d

IFM GF711S - Fail-Safe Inductive Sensor, 2x OSSD, SIL 2 / PL d

SKUGF711SBrandIFM
Regular price AED 395.00
Regular price Sale price AED 395.00
Sale Sold out
Shipping calculated at checkout.

Only 10 left

IFM GF711S Fail-Safe Inductive Sensor — fail-safe inductive sensor M12, 2x OSSD, SIL 2 / PL d, no special actuator. fail-safe inductive sensor for machine safety, M12 x 1 stainless housing, 4 mm enable zone, two OSSD outputs, certified EN 60947-5-3, IEC 61508 SIL 2 and ISO 13849-1 PL d, no special actuator required, IP67.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: GF711S

Also known as: IFM GF711S safety sensor / safety inductive sensor / proximity safety switch.

GF711S Applications

The IFM GF711S fail-safe inductive sensor ensures machine safety without a coded actuator, providing two OSSD outputs for connection to a safety PLC or safe evaluation unit. It is certified to SIL 2 and PL d for guarding and interlock functions.

GF711S Specifications

Brand IFM Product Type Fail-safe inductive sensor
Product type code GIFA4004-2PS/SIL2/V4A/US Housing / thread M12 x 1, 316L stainless
Enable zone 0.5...4 mm Outputs 2 x OSSD (PNP)
Safety rating SIL 2 (IEC 61508); PL d (ISO 13849-1) Operating voltage 19.2...30 V DC
Protection IP 65; IP 67 Weight 109.5 g

GF711S – Frequently Asked Questions (FAQ)

What is the sensing distance of the IFM GF711S fail-safe sensor?

The enable zone is 0.5...4 mm, with a safe switch-off distance s(ar) of 6 mm.

What safety rating does the GF711S have?

It achieves category 2, PL d to ISO 13849-1:2015 and SIL 2 to IEC 61508 and IEC 62061, with a PFH of 1.0E-07 1/h and a mission time of <= 175200 h.

What outputs does the GF711S provide?

It has 2 x OSSD outputs (A1 and A2), PNP design, with a permanent current rating of 100 mA and a maximum voltage drop of 2.5 V.

How fast does the GF711S respond?

The response time to a safety request is 1 ms, and the risk time for safety faults is 20 ms.

What is the operating voltage and current consumption of the GF711S?

The operating voltage is 19.2...30 V DC and current consumption is < 20 mA.

What is the housing and IP rating of the GF711S?

It has an M12 x 1 threaded housing (L = 70 mm) of stainless steel 316L/1.4404 and PBT, rated IP 65 and IP 67.

What is the operating temperature range of the GF711S?

The ambient temperature range is -25...70 degrees C.

What is the electrical connection of the GF711S?

The electrical connection is 1 x M12, A-coded, with 4 gold-plated contacts (L+ on 1, OSSD1 on 2, L- on 3, OSSD2 on 4).
