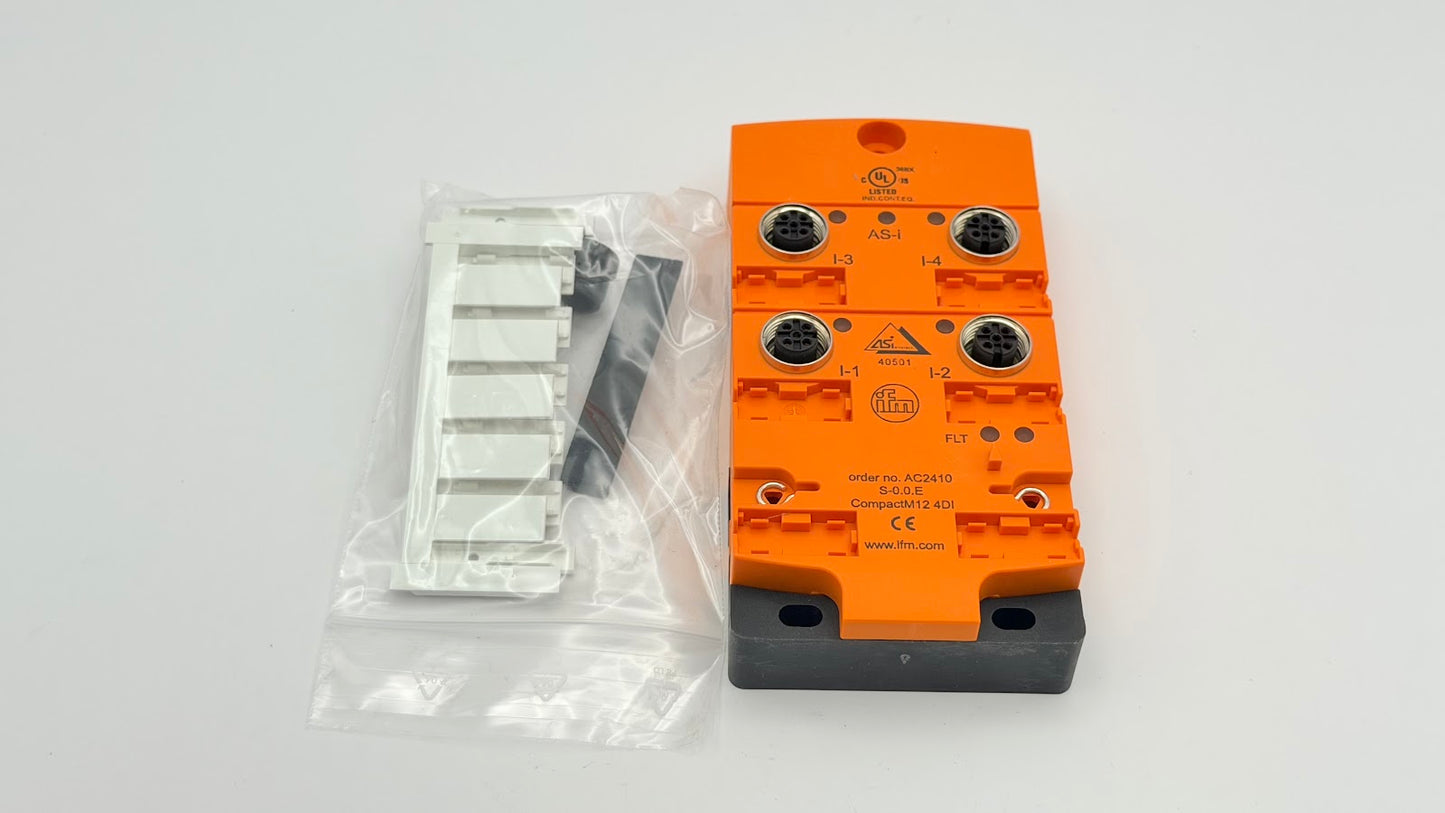

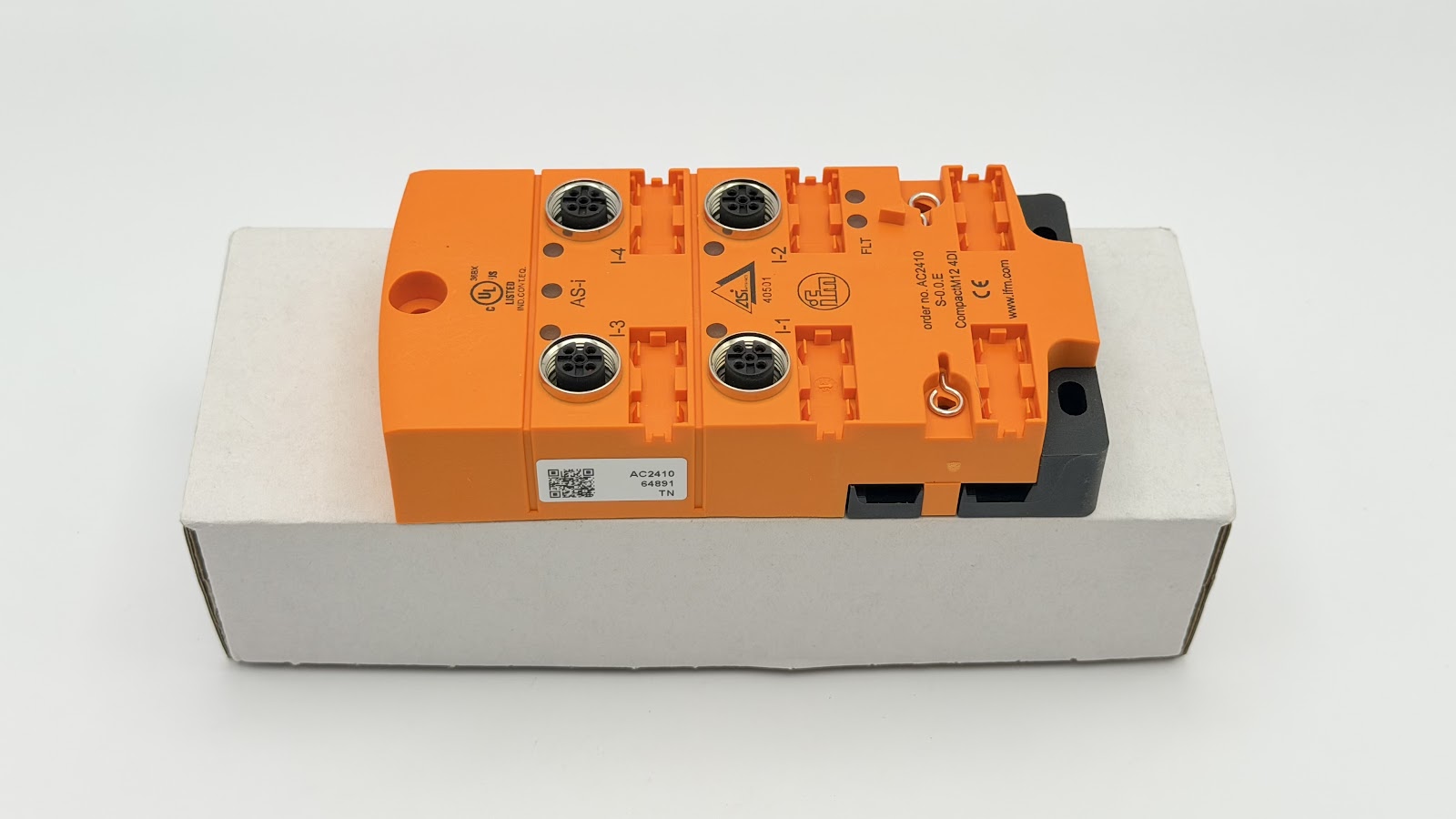

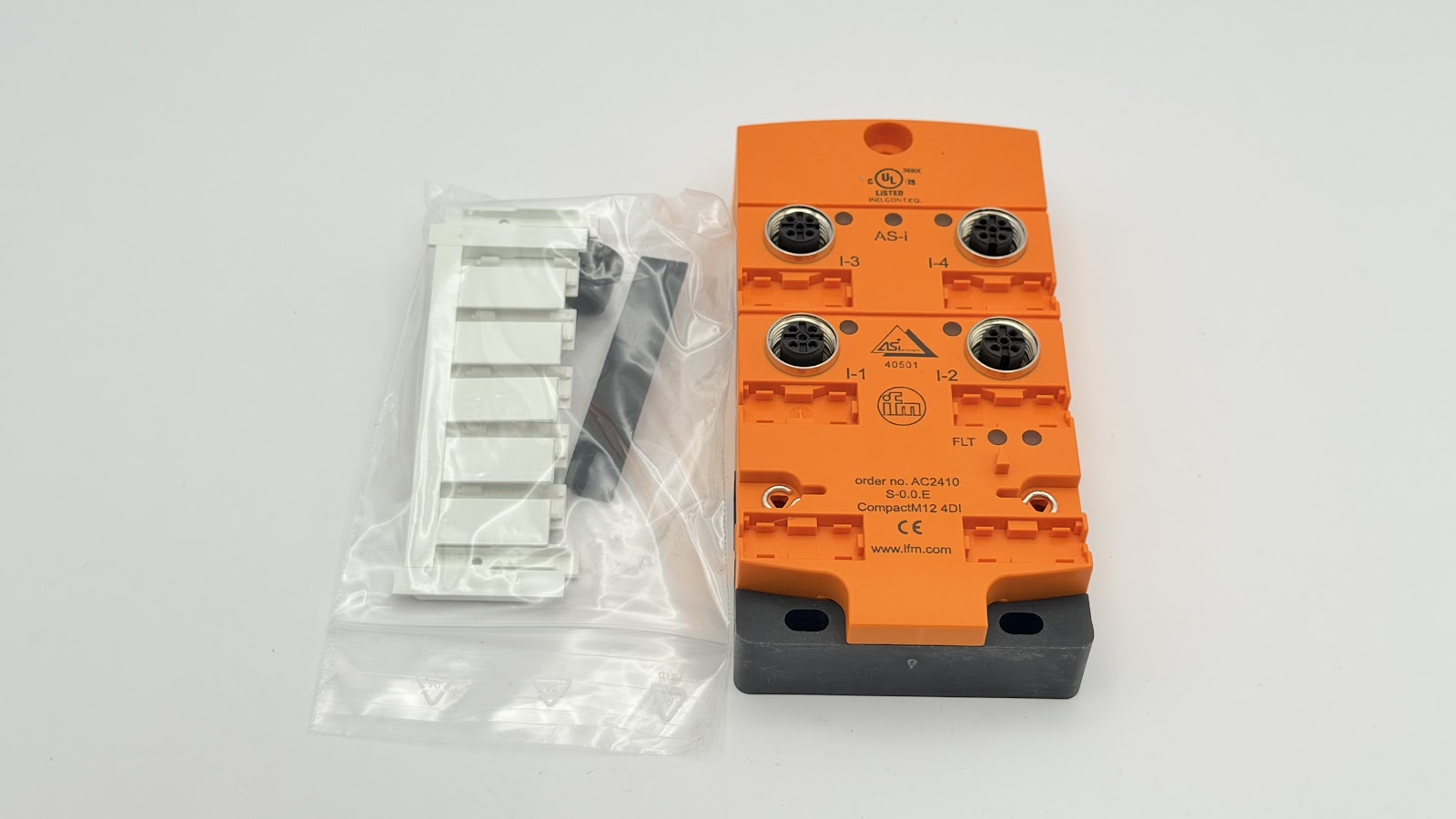

IFM AC2410 AS-Interface CompactLine Module — AS-i CompactLine 4 digital inputs, M12, fully potted, IP67 field module. AS-Interface CompactLine module, 4 x digital inputs (PNP), M12, fully potted, AS-i v3.0, 26.5...31.6 V DC, IP67, field-mount.
Shipping & Returns
Same-day dispatch across UAE
Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.
7-day return window
Sealed, unused items can be returned within 7 days for full refund or replacement.
Compatibility-checked
Our specialists review every bulk quote to ensure the part fits your application before you commit.
MPN / SKU: AC2410
AC2410 Applications
The IFM AC2410 is an AS-Interface CompactLine field module used to connect up to four sensors to an AS-i network directly in the field. It is suited for gathering digital sensor signals on conveyors, handling and packaging machinery where cabinet space is limited. Full potting gives high shock and vibration resistance and an IP67 protection rating for harsh environments, robust M12 connectors simplify sensor wiring, and powerful LEDs clearly display operation, function and error states for fast diagnostics.
How many inputs does the IFM AC2410 AS-Interface module have?
It has 4 digital inputs with PNP input circuit configuration.
What AS-Interface profile and addressing does the AC2410 use?
It supports AS-i version 2.11 / 3.0 with profile S-0.0E, IR addressing is possible, and it works with AS-i master profiles M2, M3 and M4.
What are the input electrical ratings of the AC2410?
Input current high is 6...10 mA and low is 0...2 mA, input current limitation is 15 mA, switching level high is > 11 V, and the maximum total current is 200 mA.
What sensor supply does the IFM AC2410 provide?
It provides a sensor supply of 20...30 V DC with a maximum total current of the inputs of 200 mA.
What operating voltage and current does the AC2410 need?
It operates on 26.5...31.6 V DC and draws a maximum of 250 mA from AS-i.
What is the housing material of the AC2410?
The housing is PA, with a brass nickel-plated socket, FKM O-ring, and CuSn6 nickel-plated and tin-plated piercing contacts.
What is the IP rating and operating temperature of the IFM AC2410?
It is rated IP 67 when flat cables (E7400x / E7401x) are used, with an ambient temperature range of -25...80 deg C.
What is the electrical connection of the AC2410 and are the inputs protected?
The connector is M12 (A-coded, 5 contacts) via flat cable, and the inputs are protected against short circuits.
