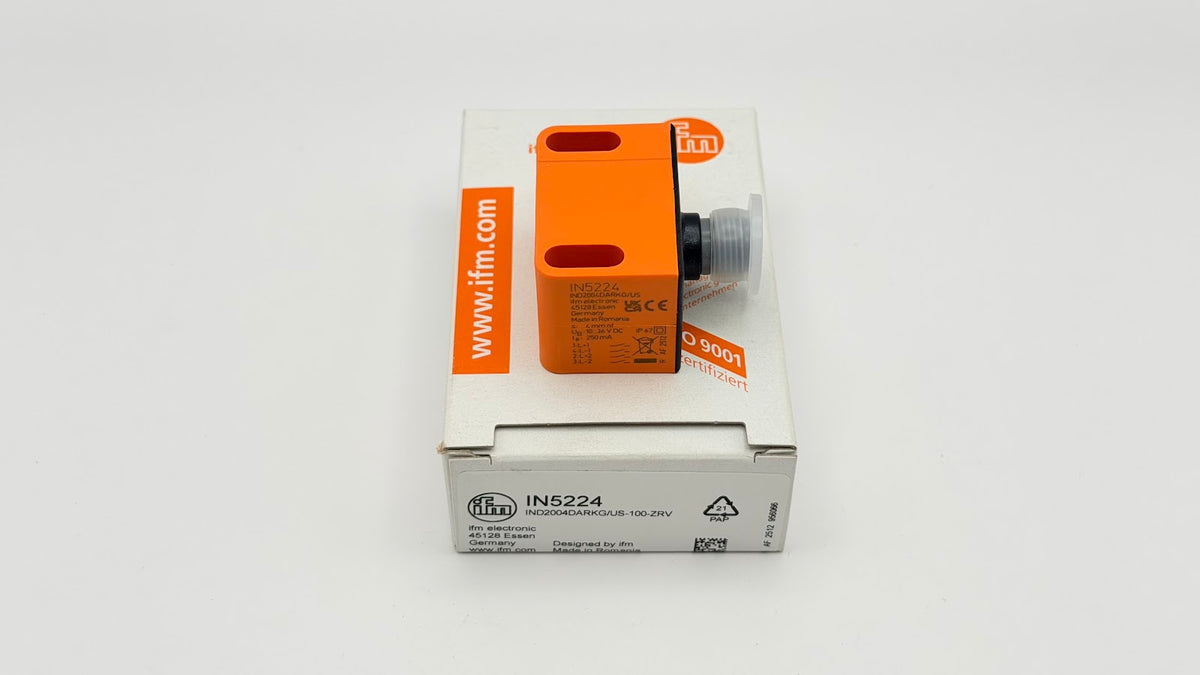

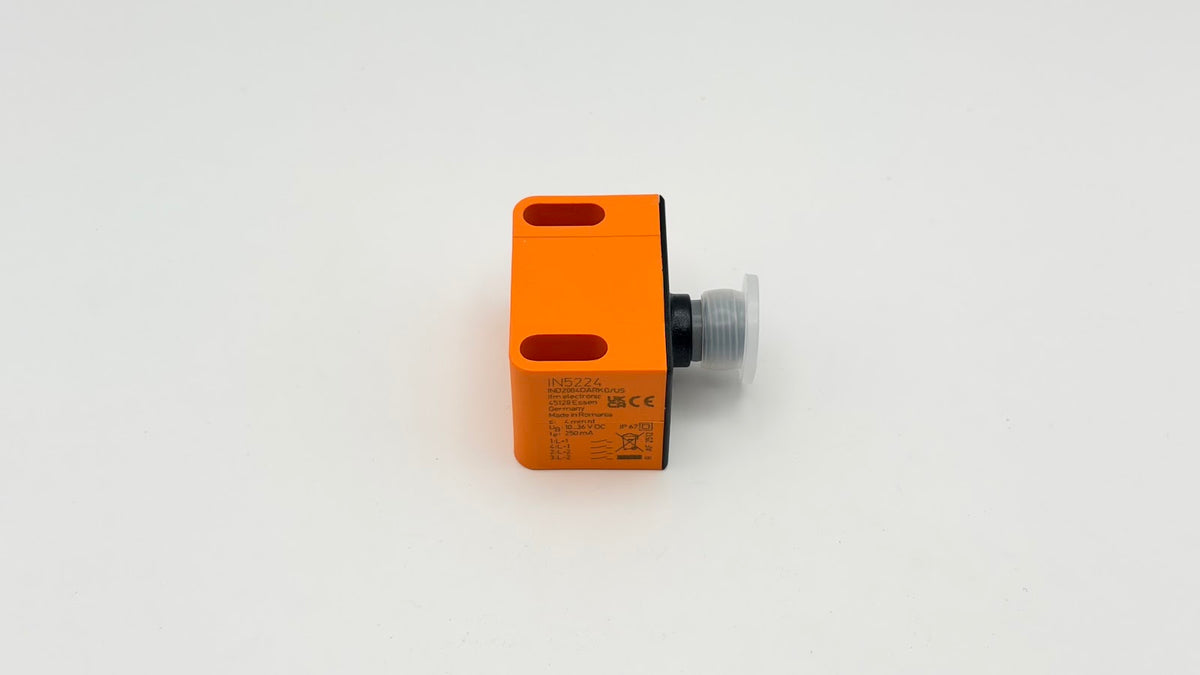

IFM IN5224 - Dual Inductive Sensor for Valve Actuators, 4 mm Dual N/O, M12

IFM IN5224 - Dual Inductive Sensor for Valve Actuators, 4 mm Dual N/O, M12

SKUIN5224BrandIFM
AED 477.00
AED 477.00
Sale Sold out
Shipping calculated at checkout.

Only 5 left

IFM IN5224 Dual Inductive Sensor for Valve Actuators — dual inductive sensor giving open/closed feedback of quarter-turn valve actuators from two channels in one housing. 4 mm sensing range, PNP/NPN 2 x N/O, 10...36 V DC, M12 connector, IP 67, rectangular valve-actuator housing.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: IN5224

Also known as: IFM IN5224 proximity sensor / proximity switch.

IN5224 Applications

The IFM IN5224 is a dual inductive sensor for quarter-turn valve actuators, providing feedback of both the open and closed positions of the valve. It combines two independent inductive sensors in one rectangular housing designed for direct mounting to VDI/VDE 3845 (NAMUR). Each channel switches with a 4 mm sensing range and a yellow LED indicates status. With an M12 connector, IP 67 protection and a PBT/PC housing, it suits demanding valve automation and process applications.

IN5224 Specifications

Brand IFM Product Type Dual inductive sensor for valve actuators
IFM Type Code IND2004DARKG/US-100-ZRV Operating voltage 10...36 V DC
Output current 250 mA Sensing range 4 mm
Setting / operating distance 0...3.25 mm Output type PNP/NPN
Output function 2 x normally open Electrical connection 1 x M12, A-coded, gold-plated contacts
Housing / dimensions rectangular, 40 x 26 x 26 mm Housing materials PBT; PC
Protection rating IP 67 Ambient temperature -20...80 °C
Function display 2 x LED yellow, switching status Short-circuit protection yes, pulsed
Reverse polarity protection yes

IN5224 Datasheet & Manual

Download Datasheet & ManualIFM IN5224 · PDF · Official IFM document

IN5224 – Frequently Asked Questions (FAQ)

What is the sensing range of the IFM IN5224?

The IN5224 has a rated sensing (operating) range of 4 mm per channel, with an operating distance of 0...3.25 mm.

What output type and function does the IN5224 provide?

It is a PNP/NPN output type with 2 x normally open (NO) output function, one channel for each valve position.

What is the operating voltage and output current of the IN5224?

It operates on 10...36 V DC with an output current of 250 mA.

How is the IN5224 connected?

Via a single M12 connector, A-coded, with gold-plated contacts.

What is the housing and degree of protection of the IN5224?

A rectangular PBT/PC housing measuring 40 x 26 x 26 mm with IP 67 protection.

What is the ambient temperature range of the IN5224?

The IN5224 operates over an ambient temperature range of -20...80 °C.

Does the IN5224 have status indication and protection features?

Yes; two yellow LEDs indicate switching status, and it has pulsed short-circuit protection and reverse polarity protection.

What is the IFM IN5224 used for?

It provides open and closed position feedback for quarter-turn valve actuators, mounting to VDI/VDE 3845 (NAMUR).
