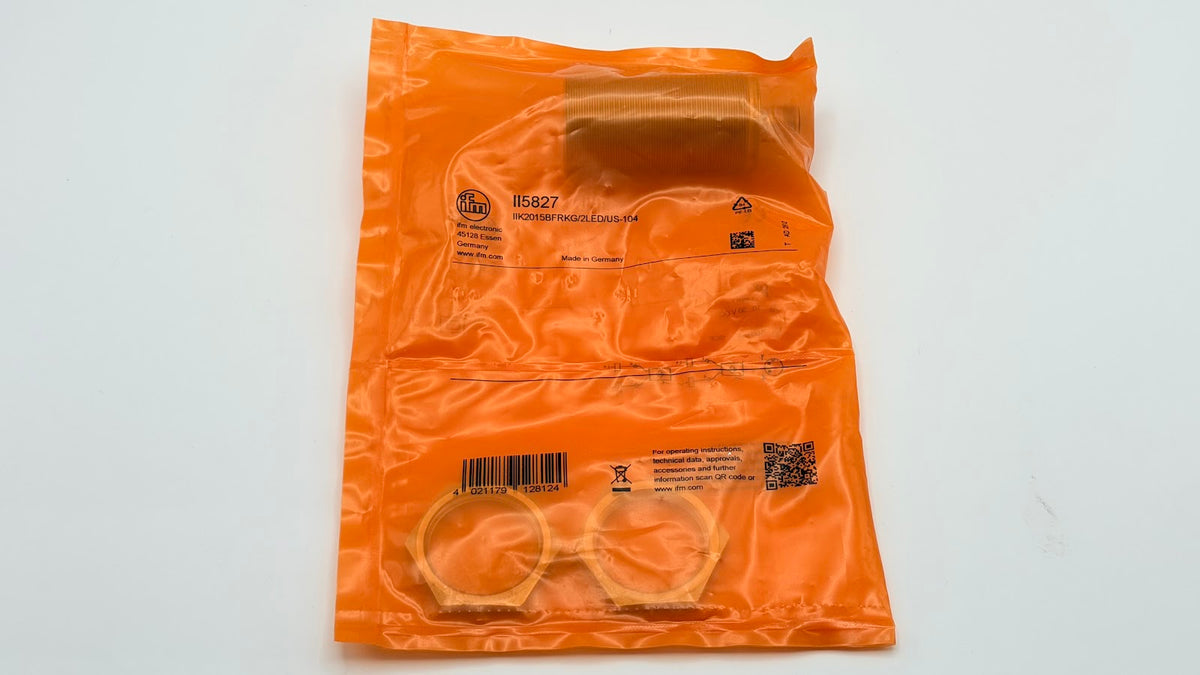

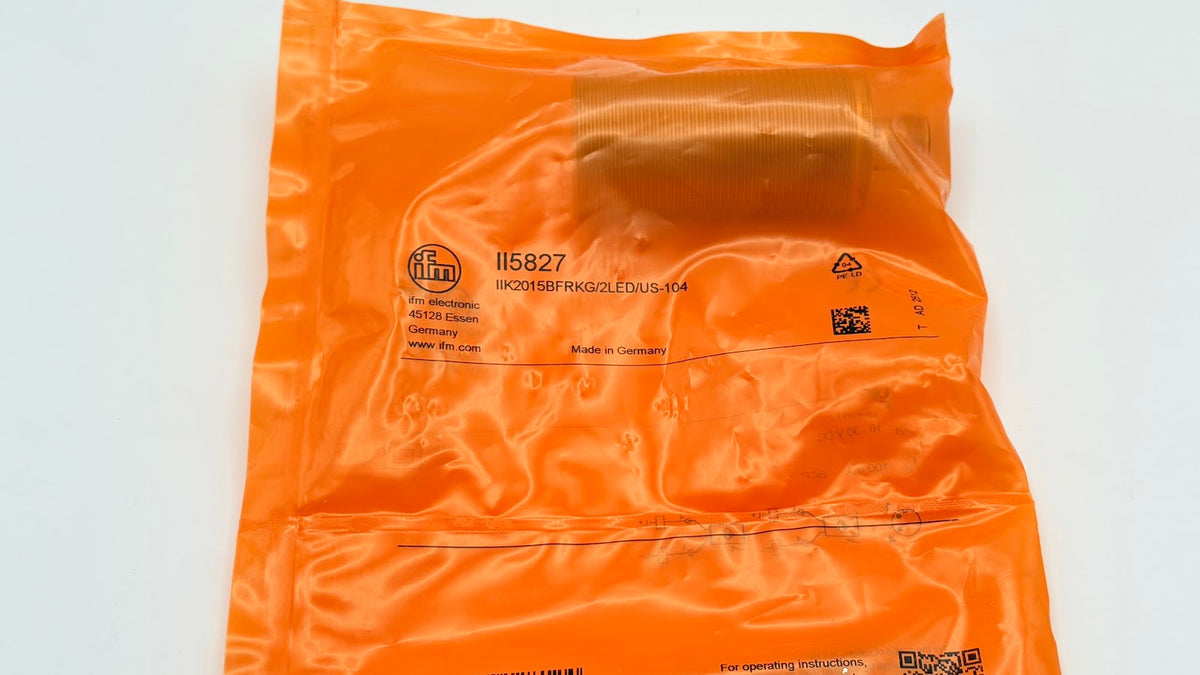

IFM II5827 - Inductive Sensor, M30, Sn 15 mm

IFM II5827 - Inductive Sensor, M30, Sn 15 mm

SKUII5827BrandIFM
AED 241.00
AED 241.00
Sale Sold out
Shipping calculated at checkout.

Only 5 left

IFM II5827 Inductive Sensor — M30 flush-mountable inductive sensor with selectable PNP/NPN and NO/NC output and gold-plated M12 connector. M30, Sn 15 mm, flush, PNP/NPN NO/NC selectable, 10...30 V DC, 100 Hz, IP 68, M12.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: II5827

Also known as: IFM II5827 proximity sensor / proximity switch.

II5827 Applications

The II5827 is an M30 flush-mountable inductive proximity sensor offering an increased sensing range of 15 mm for reliable non-contact metal detection in factory automation. Its output is fully configurable, with selectable PNP or NPN electrical design and normally open or normally closed switching function, giving flexible integration across control systems. An optical setting aid supports installation, while gold-plated M12 connector contacts and IP 68 protection suit coolant-exposed and harsh environments. The sensor runs on 10...30 V DC and switches at up to 100 Hz.

II5827 Specifications

Brand IFM Product Type Inductive sensor
IFM Type Code IIK2015BFRKG/2LED/US-104 Sensing range 15 mm
Operating distance 0...12.1 mm Mounting Flush mountable
Output type PNP/NPN (selectable) Output function Normally open / normally closed (selectable)
Operating voltage 10...30 V DC Permanent current rating 100 mA
Minimum load current 4 mA Switching frequency 100 Hz
Housing / thread M30 x 1.5, L = 70 mm Connection M12 connector, A-coded, 2 gold-plated contacts
Protection rating IP 68 Ambient temperature -25...70 °C
Housing material Brass, white bronze coated; sensing face PBT; LED window PEI

II5827 Datasheet & Manual

Download Datasheet & ManualIFM II5827 · PDF · Official IFM document

II5827 – Frequently Asked Questions (FAQ)

What is the sensing range of the IFM II5827?

The IFM II5827 offers an increased sensing range of 15 mm with an operating distance of 0...12.1 mm.

Can the output of the IFM II5827 be configured?

Yes, the IFM II5827 has selectable PNP/NPN electrical design and selectable normally open or normally closed output function.

Is the IFM II5827 flush mountable?

Yes, the IFM II5827 is flush mountable in metal.

What is the operating voltage of the IFM II5827?

The IFM II5827 operates on 10...30 V DC with a permanent output current rating of 100 mA.

How is the IFM II5827 connected?

The IFM II5827 uses an A-coded M12 connector with gold-plated contacts.

What protection rating does the IFM II5827 have?

The IFM II5827 is rated IP 68 and is suitable for coolant environments.

What is the switching frequency of the IFM II5827?

The IFM II5827 has a switching frequency of 100 Hz.

What is the housing of the IFM II5827 made of?

The IFM II5827 has an M30 x 1.5 brass housing with white bronze coating, a PBT sensing face and PEI LED window.
