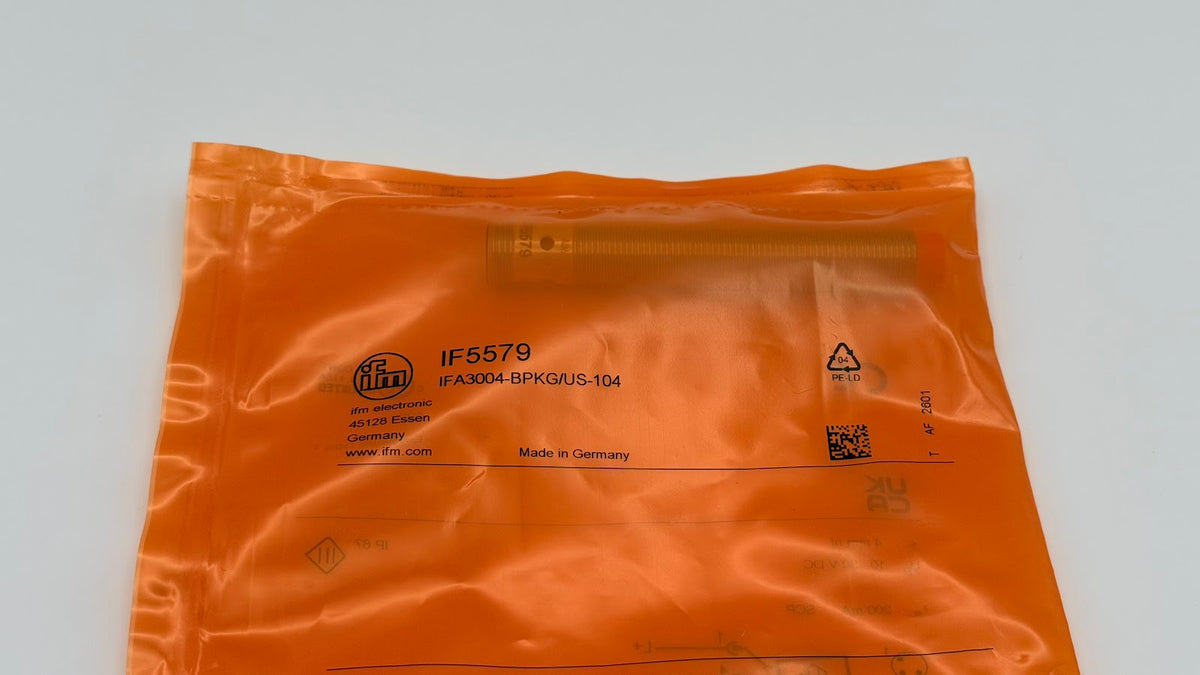

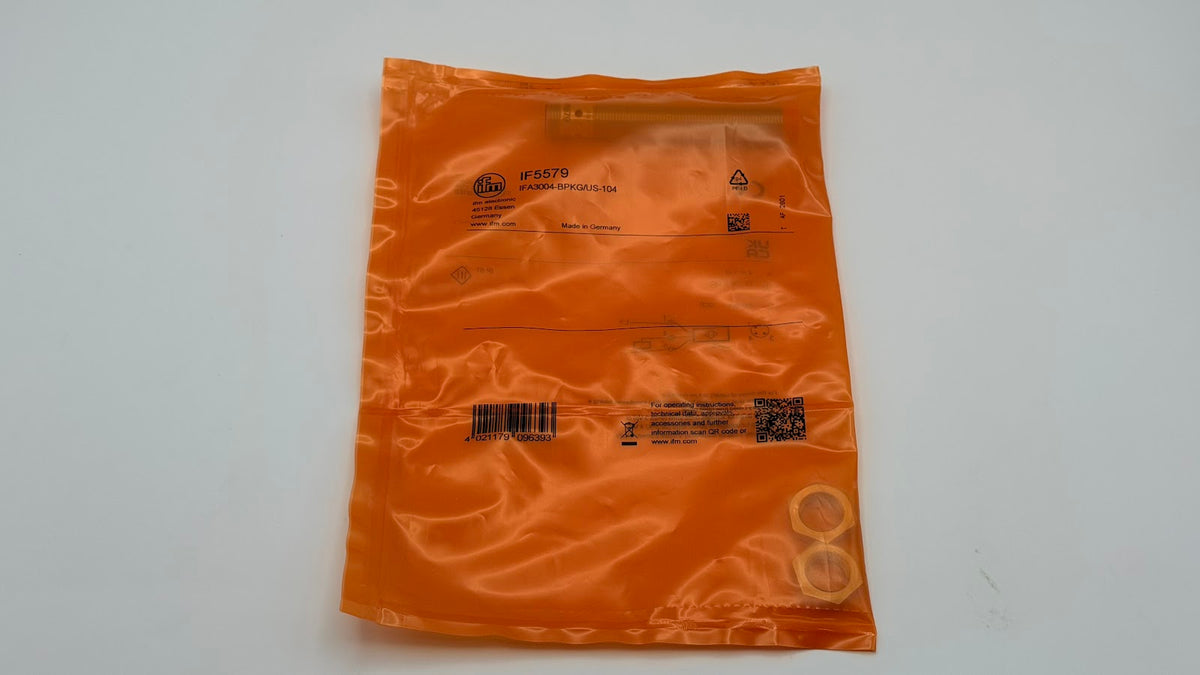

IFM IF5579 - Inductive Sensor, M12 x 1, PNP NO

IFM IF5579 - Inductive Sensor, M12 x 1, PNP NO

SKUIF5579BrandIFM
AED 203.00
AED 203.00
Sale Sold out
Shipping calculated at checkout.

Only 5 left

IFM IF5579 Inductive Sensor — M12 non-flush inductive sensor with 4 mm range and gold-plated contacts. M12 x 1, 4 mm sensing range, non-flush, PNP normally open, 10...30 V DC, IP 67.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: IF5579

Also known as: IFM IF5579 proximity sensor / proximity switch.

IF5579 Applications

The IF5579 is an M12 inductive proximity sensor for non-contact detection of metal targets in industrial automation and machine building. Its non-flush mountable brass housing provides an extended nominal sensing range of 4 mm. A PNP normally open output switches at up to 400 Hz, while gold-plated connector contacts ensure reliable signal transfer. With reverse polarity and short-circuit protection, IP 67 rating and a 4 x 90 degree yellow LED status display, it suits demanding position and presence monitoring.

IF5579 Specifications

Brand IFM Product Type Inductive sensor with extended sensing range and gold-plated contacts.
IFM Type Code IFA3004-BPKG/US-104 Sensing range 4 mm (Sr 4 mm ± 10 %)
Operating distance 0...3.24 mm Mounting non-flush mountable
Output type PNP Output function normally open
Operating voltage 10...30 V DC Current consumption 10 mA
Permanent current rating 200 mA Switching frequency 400 Hz
Housing / thread M12 x 1, L = 80 mm Connection M12 connector, A-coded, 3 contacts, gold-plated
Protection rating IP 67 Ambient temperature -25...80 °C
Status display 4 x 90° LED, yellow

IF5579 Datasheet & Manual

Download Datasheet & ManualIFM IF5579 · PDF · Official IFM document

IF5579 – Frequently Asked Questions (FAQ)

What is the sensing range of the IFM IF5579?

The IFM IF5579 has a nominal sensing range of 4 mm, with a real sensing range (Sr) of 4 mm ± 10 % and an operating distance of 0...3.24 mm.

Is the IFM IF5579 flush or non-flush mountable?

The IFM IF5579 is non-flush (quasi-flush) mountable, which allows its extended 4 mm sensing range in an M12 housing.

What output type and function does the IFM IF5579 have?

The IFM IF5579 provides a PNP output with a normally open (NO) switching function.

What operating voltage and current does the IFM IF5579 require?

The IFM IF5579 operates on 10...30 V DC, draws 10 mA current consumption and delivers a permanent current rating of 200 mA.

What is the switching frequency of the IFM IF5579?

The IFM IF5579 has a switching frequency of 400 Hz.

What is the housing and connection of the IFM IF5579?

The IFM IF5579 has an M12 x 1 threaded housing (L = 80 mm) with an M12 A-coded connector featuring 3 gold-plated contacts.

What protection rating and temperature range does the IFM IF5579 offer?

The IFM IF5579 is rated IP 67 and operates over an ambient temperature range of -25...80 °C.

Does the IFM IF5579 have protection circuits and status indication?

Yes, the IFM IF5579 includes reverse polarity and short-circuit protection plus a 4 x 90° yellow LED switching status display.
