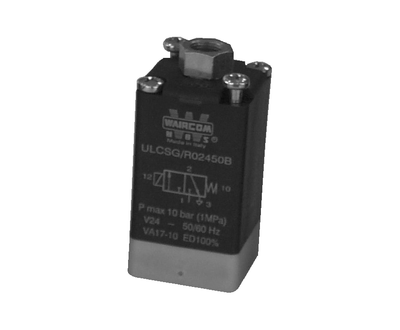

Waircom ULCSG/U 02400 - Series UL 3/2 N.C. Solenoid Valve (24 V DC)

Waircom ULCSG/U 02400 - Series UL 3/2 N.C. Solenoid Valve (24 V DC)

SKUULCSG/U 02400BrandWaircom
AED 120.00
AED 120.00
Sale Sold out
Shipping calculated at checkout.

The Waircom ULCSG/U 02400 is a robust 3/2 N.C. mini-solenoid pilot-actuated valve from the commercial Series UL catalog. Built to withstand punishing environments, it features a heavy-duty cast glass-stiffened polyamide housing with standard Interface flange (for sub-base) fluid ports. Operating on a 24 V DC electrical supply, this valve featuring superior Class F (155 °C) coil insulation ratings and an IP 65 protection class certification.

View full details
ParameterValue
Brand
Waircom
Series
Series UL
Function
3/2 N.C.
Voltage
24 V DC
Port Connection
Interface flange (for sub-base)
Nominal Diameter
2 mm
Body Material
Glass-stiffened polyamide
ParameterValue
Body Description
Plastic body with universal interface (multi-station bases)
Flow Rate
80 Nl/min at 6 bar
Operating Pressure
0 to 10 bar
Working Temperature
0 to +50 °C (–20 °C with dry air)
Protection Class
IP 65
Insulation Class
F (155 °C)
